(8-88) - BOOM, ARM & BUCKET, HYDRAULIC CIRCUIT, BASE OF BOOM TO BUCKET CYLINDER

Запчасти Case 9040 (8-88) - BOOM, ARM & BUCKET, HYDRAULIC CIRCUIT, BASE OF BOOM TO BUCKET CYLINDER (08) - HYDRAULICS

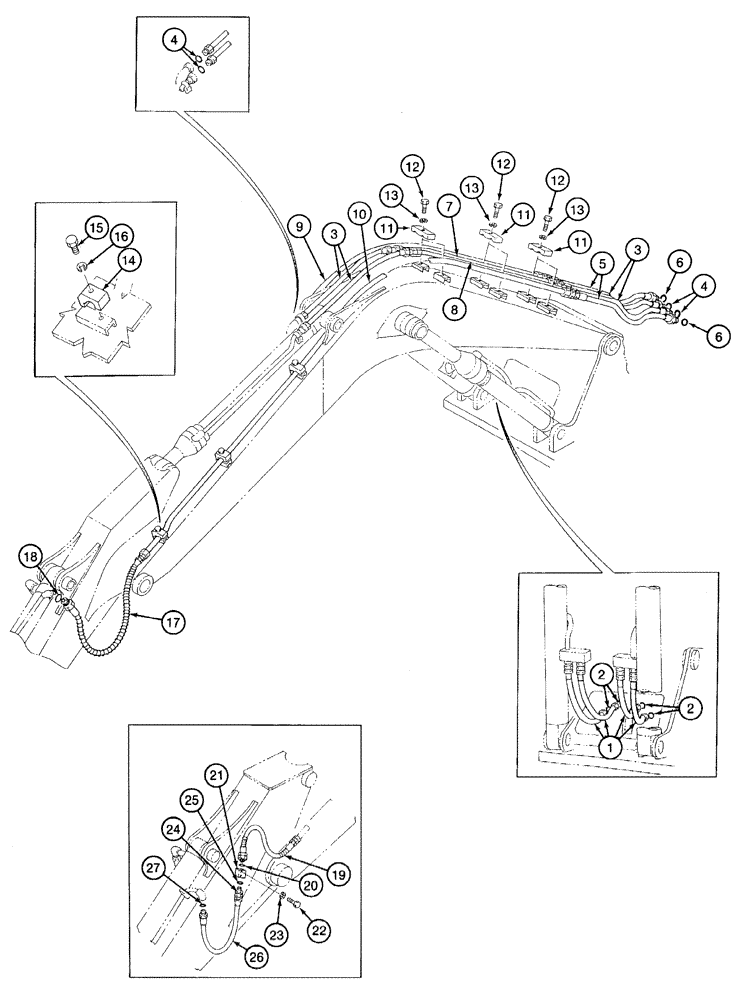

Схема запчастей Case 9040 - (8-88) - BOOM, ARM & BUCKET, HYDRAULIC CIRCUIT, BASE OF BOOM TO BUCKET CYLINDER (08) - HYDRAULICS
20
4
5
25
22
19
6
27
7
11
13
2
2
14
11
3
1
12
9
6
8
17
21
16
13
3
15
26
4
12
11
13
24
12
23
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151453A1

HOSE,970.00 mm

HYDRAULIC HOSE - At boom cylinder, Standard, Includes Ref. 2 970.00 mm

4шт.

2

154503A1

O-RING

- hose

1шт.

3

151180A1

HYDRAULIC HOSE,1110.00 mm

- Arm cylinder, Standard, Includes Ref. 4 1110.00 mm

4шт.

4

154523A1

O-RING

- hose

1шт.

5

151182A1

HYDRAULIC HOSE,1110.00 mm

- To bucket cylinder, At base of boom, Standard, Includes Ref. 6 1110.00 mm

2шт.

6

154503A1

O-RING

- hose

1шт.

7

151271A1

HYD TUBE,34 mm OD, 2512.4, 458.7 mm Length

TUBE - to arm cylinder, right-hand, standard

1шт.

8

151275A1

TUBE,34 mm OD, 2512.4, 458.7 mm Length

- to arm cylinder, left-hand, standard

1шт.

9

151279A1

HYD TUBE

TUBE - to bucket cylinder, right-hand, standard

1шт.

10

151284A1

TUBE

- to bucket cylinder, left-hand, standard

1шт.

11

151188A1

SPECIAL CLAMP

CLAMP - tube, standard

6шт.

12

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

Standard Hex, M16 x 70, 10.9

6шт.

13

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm, standard

6шт.

14

150837A1

SPECIAL CLAMP

CLAMP - tube, standard

4шт.

15

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9, Standard

4шт.

16

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm, Standard

4шт.

17

151312A1

HOSE,1600.00 mm

HYDRAULIC HOSE - at bucket cylinder, Models w/10' arm, Includes Ref. 18 1600.00 mm

2шт.

18

154503A1

O-RING

- hose, models w/10' arm

1шт.

19

153643A1

HOSE

- 55-1/8 inch (1400 mm) long, at bucket cylinder, models w/11' 6" arm, Includes: Ref. 20

2шт.

20

154503A1

O-RING

- hose, models w/11' 6" arm

1шт.

21

153644A1

MANIFOLD

- hydraulic, models w/11' 6" arm

2шт.

22

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 75 mm, class 10.9, models w/11' 6" arm

4шт.

23

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm, Models w/11' 6" arm

4шт.

24

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, models w/11' 6" arm, Includes: Ref. 25

2шт.

25

154503A1

O-RING

- adapter, models w/11' 6" arm

1шт.

26

151182A1

HYDRAULIC HOSE,1110.00 mm

- At bucket cylinder, Models w/11' 6" arm, Includes Ref. 27 1110.00 mm

2шт.

27

154503A1

O-RING

- hose, models w/11' 6" arm

1шт.
