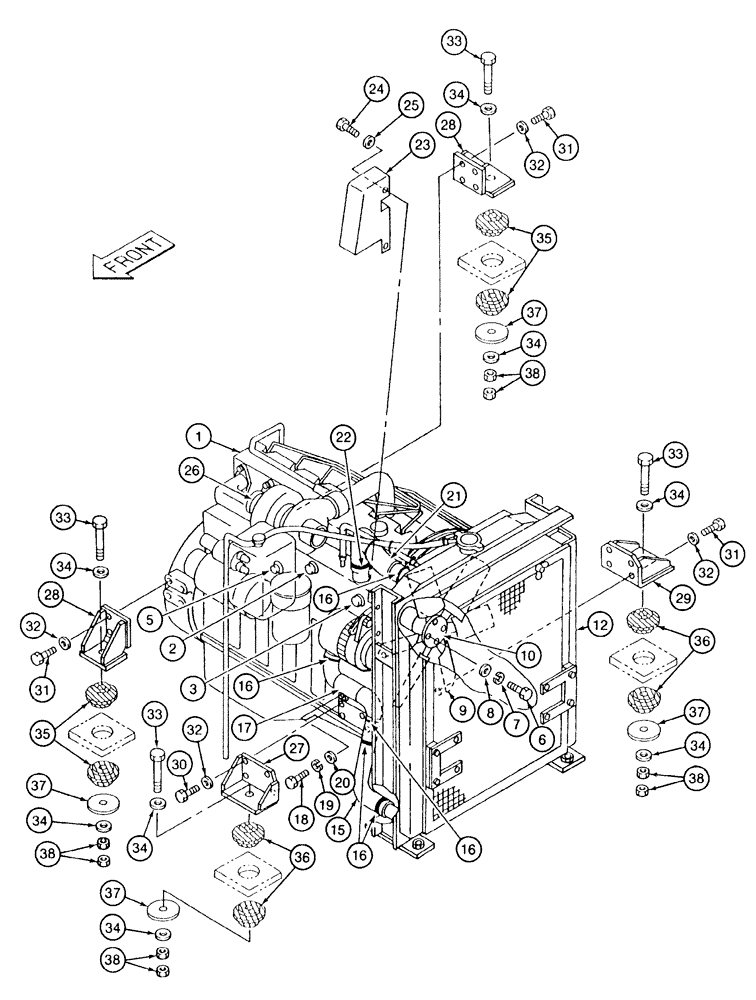

Запчасти Case 9040 (2-02) - ENGINE MOUNTING, RADIATOR AND ADAPTING PARTS, PRIOR TO P.I.N. DAC0400004 (02) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - complete, 6T-830, parts list Figures 2-12 through 2-44 and 3-8 through 3-14

1шт.

2

1546461C2

SWITCH

- oil pressure, 10 psi, replaces 1546461C1 switch

1шт.

3

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, includes nut

1шт.

5

153493A1

BUSHING

- reducer

1шт.

6

152870A1

BOLT,High Strength, Hex, M10 x 130mm

BOLT - hex, special, fan mounting

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

9

1998751C1

FAN

- engine cooling

1шт.

10

A184524

SPACER

- fan, outer

1шт.

12

151395A1

RADIATOR

ASSEMBLY - engine, and transmission oil cooling, parts list Figure 2-10

1шт.

15

151408A1

RADIATOR HOSE,50.8 mm ID x 321.50 mm

Lower 50.8 mm ID x 321.50 mm

1шт.

16

157287A1

COLLAR

CLAMP - adjustable, radiator hose

5шт.

17

151477A1

TUBE,50.8 mm OD, 250, 101.2 mm Length

- side of engine to bottom of radiator, water

1шт.

18

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

21

151403A1

RADIATOR HOSE,50.00 mm ID, 57.20 mm ID x 330.00 mm

Upper 50.00 mm ID, 57.20 mm ID x 330.00 mm

1шт.

22

152796A1

COLLAR

CLAMP - adjustable, upper radiator hose

1шт.

23

158312A1

BRACKET

- radiator, replaces 151424A1 bracket

1шт.

24

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

2шт.

25

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

26

A170807

CLAMP,102mm ID

retaining, special, at turbocharger

1шт.

27

151798A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand front

1шт.

28

151804A1

ENGINE MOUNT

BRACKET - engine mounting, right-hand front and rear

2шт.

29

151795A1

ENGINE MOUNT

BRACKET - engine mounting, left-hand rear

1шт.

30

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 30 mm, class 10.9

4шт.

31

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

12шт.

32

150811A1

WASHER

- flat, special, 12 mm

16шт.

33

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

- hex, 20 - 2.5 x 130 mm, class 10.9

4шт.

34

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- flat, special

8шт.

35

151304A1

INSULATOR BLOCK

INSULATOR - rubber, engine mounting, right-hand front and rear

4шт.

36

151309A1

SUSPENSION BLOCK

INSULATOR - rubber, engine mounting, left-hand front and rear

4шт.

37

150874A1

WASHER

- special

4шт.

38

829-1420

NUT,M20, Cl 10

8шт.
