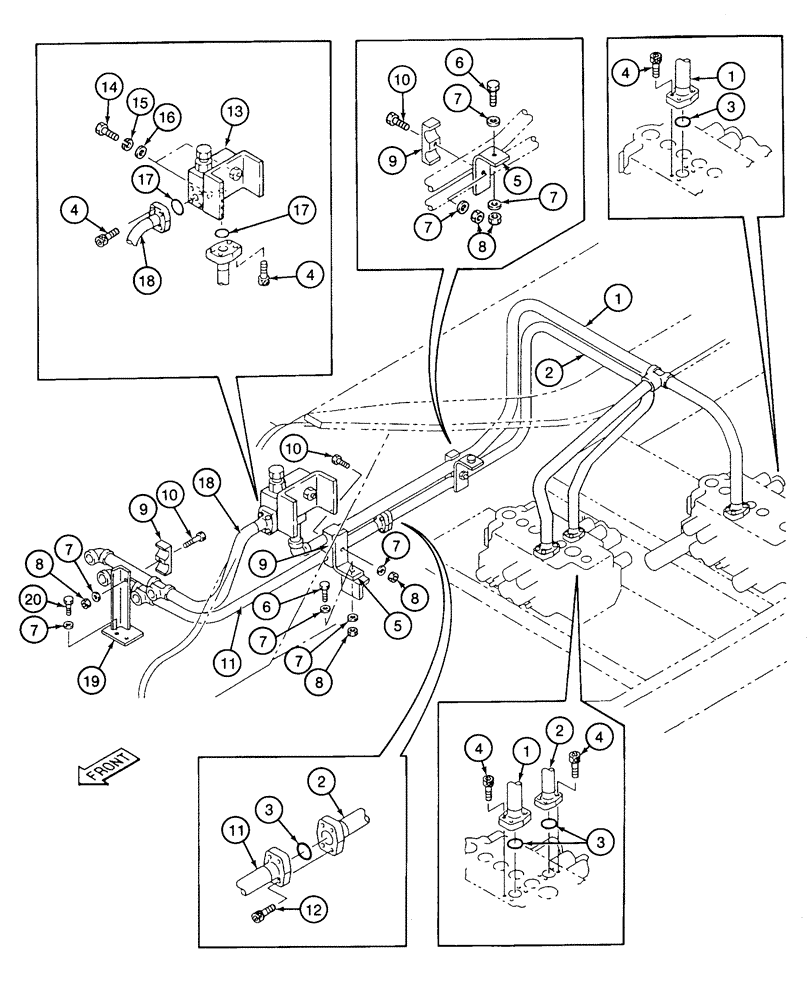

Запчасти Case 9040 (8-82) - BOOM HYDRAULIC CIRCUIT, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

153429A1

TUBE,1032, 574 mm Length

- at left-hand control valve

1шт.

2

153430A1

TUBE

- at right-hand control valve

1шт.

3

154529A1

O-RING

- at control valve

4шт.

4

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 35 mm, class 12.9

20шт.

5

153339A1

BRACKET

- mounting

2шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 35 mm, class 10.9

2шт.

7

150811A1

WASHER

- flat, special, 12 mm

9шт.

8

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

5шт.

9

153187A1

SPECIAL CLAMP

CLAMP - support

3шт.

10

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

- hex, 12 - 1.75 x 70 mm, class 10.9

3шт.

11

153380A1

TUBE

- right-hand control, Serial Range: valve-boom

1шт.

12

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

4шт.

13

153558A1

VALVE

ASSEMBLY - boom, parts list figure 8-84

1шт.

14

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

15

892-11010

LOCK WASHER,M10

2шт.

16

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

17

154548A1

O-RING

, Serial Range: --valve

2шт.

18

153379A1

TUBE,34 mm OD, 435, 306 mm Length

- at boom holding valve side port

1шт.

19

153202A1

BRACKET

- mounting

1шт.

20

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9

2шт.
