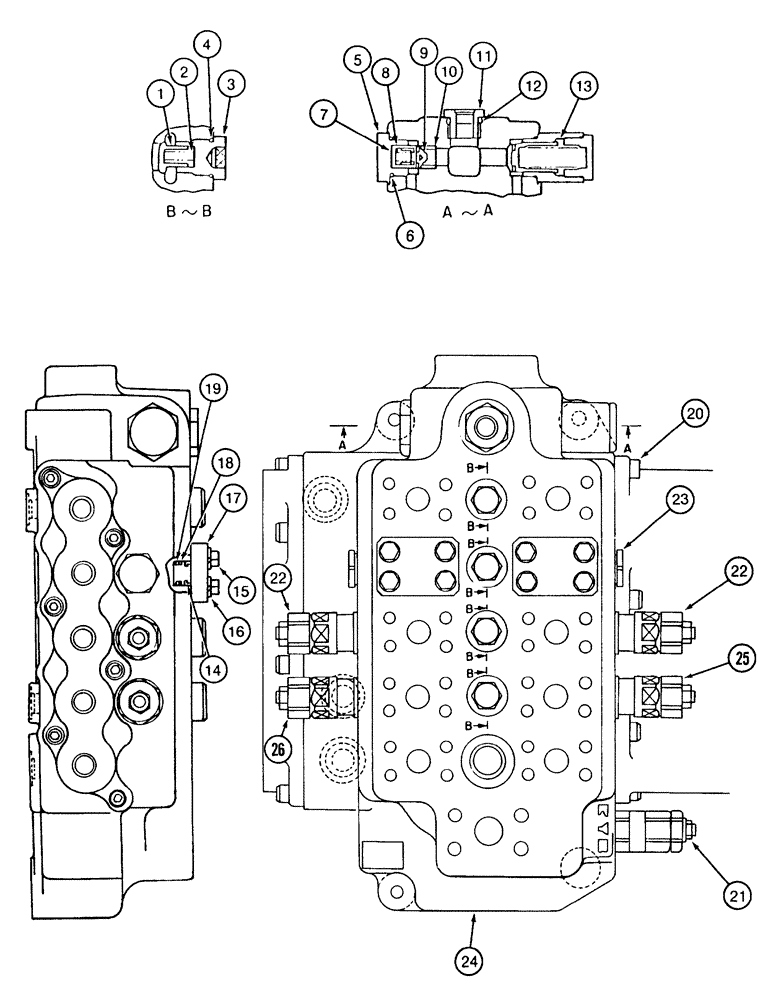

Запчасти Case 9040 (8-81C) - 158639A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, PLUGS, CHECK AND RELIEF VALVES, LONG REACH MODELS (08) - HYDRAULICS

158639A1

VALVE, CONTROL

VALVE - control, hydraulic control, right-hand, 5 spool, parts list figures 8-81A and 8-81C, see figure 8-08 for valve mounting, Includes: Ref. 1 - 26

1шт.

164925A1

VALVE, CHECK

VALVE - check

1шт.

1

155925A1

VALVE POPPET

POPPET - valve, check

1шт.

2

156060A1

SPRING

- poppet

1шт.

3

155462A1

PLUG

- valve

1шт.

4

155224A1

O-RING

- valve, seal

1шт.

5

155445A1

PLUG

- valve

1шт.

6

155224A1

O-RING

- valve

1шт.

8

156016A1

SPRING

- compression

1шт.

9

155905A1

VALVE

PLUNGER - valve

1шт.

10

155575A1

SLEEVE

- poppet stop

1шт.

11

155441A1

PLUG

- valve

1шт.

12

154503A1

O-RING

- valve, seal

1шт.

13

155760A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.

14

155439A1

PLUG

- valve

2шт.

15

156209A1

BOLT

BOLT - hex socket

8шт.

16

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

8шт.

17

156246A1

PLATE

COVER - port

2шт.

18

153963A1

BACK-UP RING

RING - backup

2шт.

19

154478A1

O-RING

- seal

2шт.

20

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

12шт.

21

164920A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.

22

164924A1

VALVE, PRESSURE RELI

VALVE - relief

4шт.

23

155438A1

PLUG

- valve, contains:

1шт.

160370A1

O-RING

O RING

1шт.

160369A1

PLUG

1шт.

160368A1

BACK-UP RING

RING back up

1шт.

155223A1

O-RING

O RING

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

25

164922A1

HARNESS

VALVE - relief

1шт.

26

164923A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.
