(8-81A) - 158639A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, LONG REACH MODELS

Запчасти Case 9040 (8-81A) - 158639A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, LONG REACH MODELS (08) - HYDRAULICS

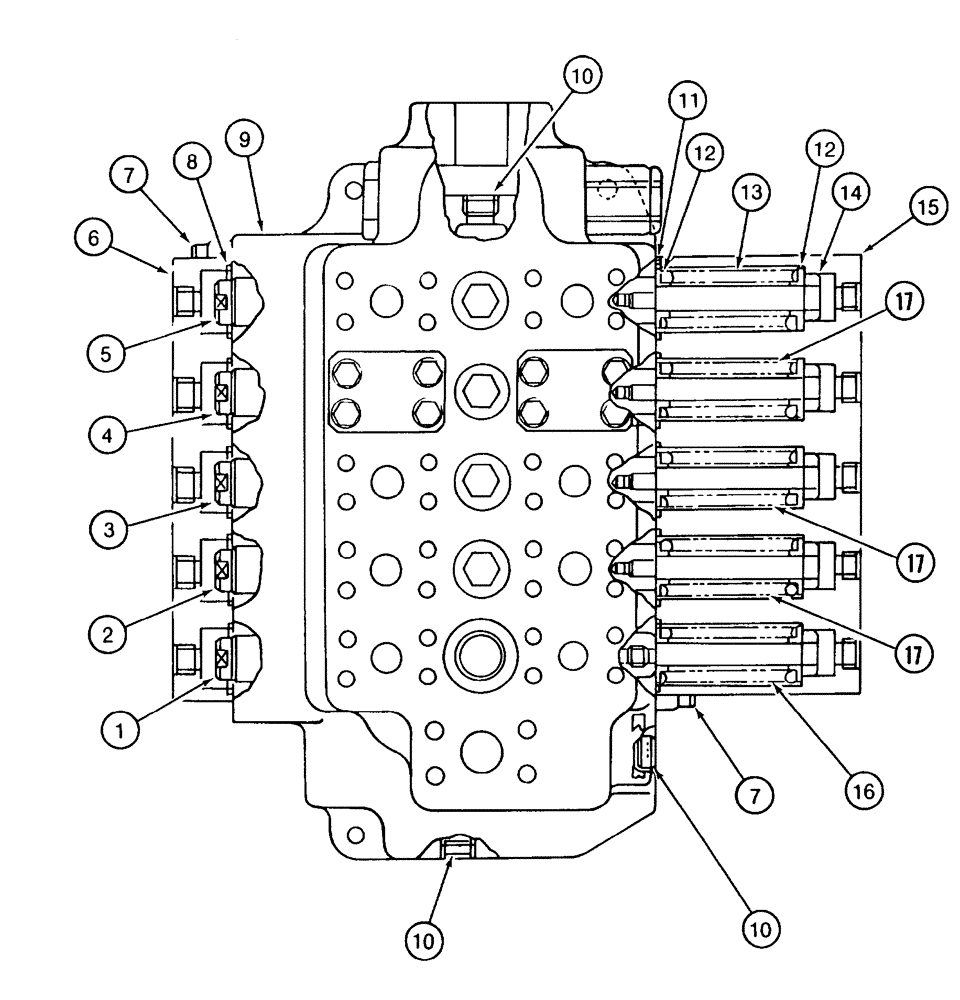

Схема запчастей Case 9040 - (8-81A) - 158639A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, LONG REACH MODELS (08) - HYDRAULICS
13
15
10
1
12
14
9
3
10
7
17
17
5
16
2
8
17
11
10
4
7
6
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

158639A1

VALVE, CONTROL

VALVE - control, hydraulic control, right-hand, 5 spool, parts list figure 8-81C, see figure 8-08 for valve mounting, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - travel

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - arm

1шт.

6

156245A1

CAP

COVER - spool end

1шт.

7

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

12шт.

8

154567A1

O-RING

- seal

5шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

151033A1

PLUG

- hex socket, special

3шт.

11

154567A1

O-RING

- seal

5шт.

12

156019A1

SPRING SEAT

SEAT - spring

10шт.

13

156057A1

SPRING

- valve, arm spool return

1шт.

14

156243A1

CAP

RETAINER - spring

5шт.

15

156244A1

CAP

COVER - spool

1шт.

16

156018A1

SPRING

- spool return

1шт.

17

164921A1

SPRING

- valve

3шт.
