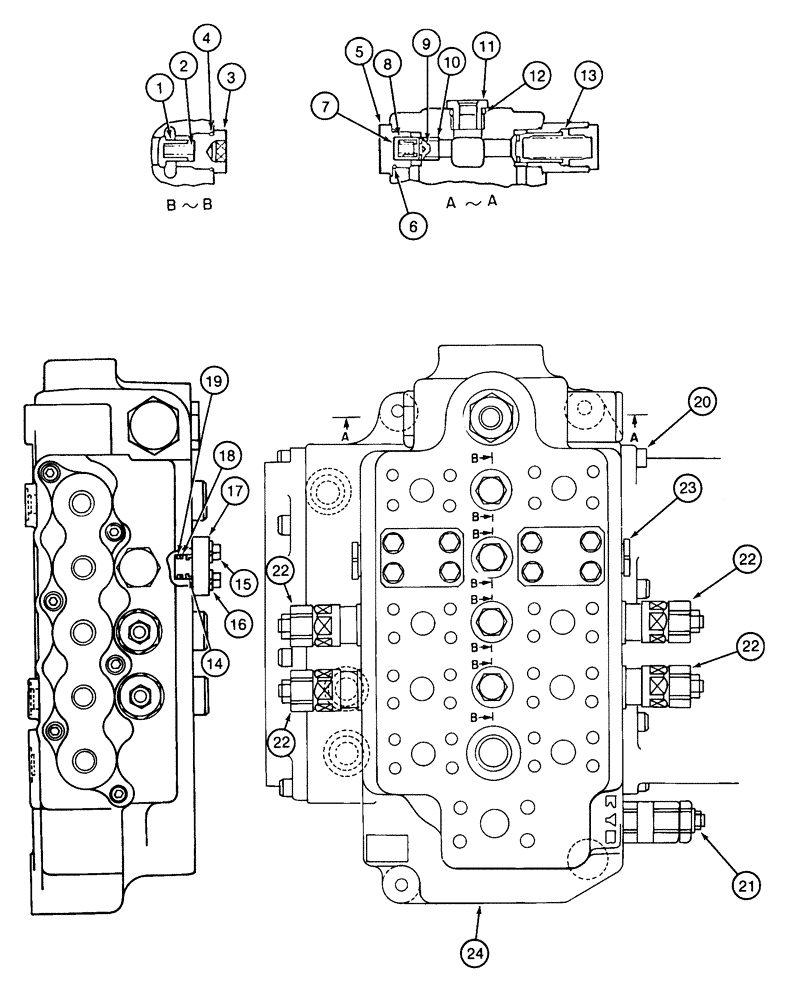

Запчасти Case 9040 (8-80) - 153248A1 RIGHT-HAND CONTROL VALVE ASSY, PLUGS, CHECK & RELIEF VALVES, NOT USED ON LONG REACH MODELS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
153248A1
VALVE, CONTROL
VALVE ASSEMBLY - hydraulic control, right-hand, 5 spool, parts list figures 8-78 and 8-80, see figure 8-08 for valve mounting, Includes: Ref. 1 - 24
1шт.
155744A1
VALVE, CHECK
VALVE ASSEMBLY - check, Includes: Ref. 1 - 4
1шт.
1
NSS
NOT SOLD SEPARAT
POPPET - check valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
3
155437A1
PLUG
- special, Includes: Ref. 4
1шт.
4
153879A1
O-RING
- plug
1шт.
Part of Control Valve Seal Kit P/N 155985A1
1шт.
5
155440A1
PLUG
- special port
1шт.
6
153879A1
O-RING
- plug
1шт.
Part of Control Valve Seal Kit P/N 155985A1
1шт.
7
155555A1
SPACER
- spring
1шт.
8
156016A1
SPRING
- compression, poppet return
1шт.
9
155905A1
VALVE
PLUNGER - valve
1шт.
10
155556A1
SLEEVE
- poppet stop
1шт.
11
155441A1
PLUG
- port
1шт.
Part of Control Valve Seal Kit P/N 155985A1
1шт.
13
155747A1
VALVE, PRESSURE RELI
VALVE ASSEMBLY - relief
1шт.
14
155439A1
PLUG
- port
1шт.
15
156209A1
BOLT
BOLT - hex socket
8шт.
16
892-10010
LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk
WASHER - lock, 10 mm
8шт.
17
156246A1
PLATE
COVER - port
2шт.
18
153963A1
BACK-UP RING
RING - backup
2шт.
Part of Control Valve Seal Kit P/N 155985A1
1шт.
19
154478A1
O-RING
- seal, plug
2шт.
Part of Control Valve Seal Kit P/N 155985A1
1шт.
20
156163A1
BOLT (MACHINE),Hex Skt
BOLT - hex socket, special
12шт.
21
155743A1
VALVE, PRESSURE RELI
VALVE - relief
1шт.
22
155745A1
VALVE PRESSURE RELIE
VALVE - relief, parts list figure 8-77E
4шт.
23
155438A1
PLUG
- special port, contains:
1шт.
160370A1
O-RING
O RING
1шт.
160369A1
PLUG
1шт.
160368A1
BACK-UP RING
RING back up
1шт.
24
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
155985A1
KIT
- seal, control valve, Includes: Ref. 4, 6, 12, 18 and 19 and 8 and 11 on Figure 08-78
1шт.
Выбрано товаров: 36
