(8-78) - 153248A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, NOT USED ON LONG REACH MODELS

Запчасти Case 9040 (8-78) - 153248A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, NOT USED ON LONG REACH MODELS (08) - HYDRAULICS

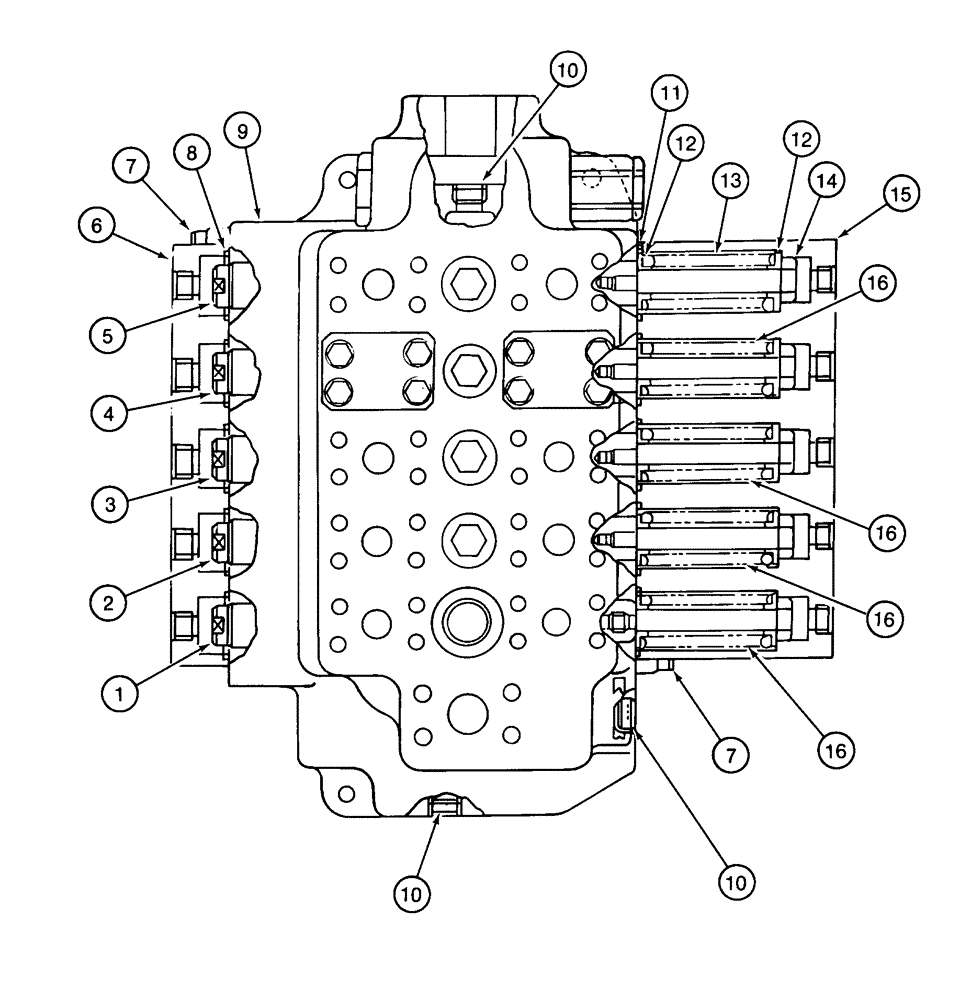

Схема запчастей Case 9040 - (8-78) - 153248A1 RIGHT-HAND CONTROL VALVE ASSEMBLY, SPOOLS AND RELATED PARTS, NOT USED ON LONG REACH MODELS (08) - HYDRAULICS
3
16
13
14
7
15
16
4
6
8
1
10
11
12
10
10
16
5
9
7
16
2
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

153248A1

VALVE, CONTROL

VALVE ASSEMBLY - hydraulic control, right-hand, 5 spool, parts list figures 8-78 and 8-80, see figure 8-08 for valve mounting, Includes: Ref. 1 - 16

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - travel

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - boom

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - bucket

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - auxiliary

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL - arm

1шт.

6

156245A1

CAP

COVER - spool end

1шт.

7

156163A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket

12шт.

8

154567A1

O-RING

- seal

5шт.

Part of Control Valve Seal Kit P/N 155985A1

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

10

151033A1

PLUG

- hex socket, special, port

3шт.

11

154567A1

O-RING

- seal

5шт.

Part of Control Valve Seal Kit P/N 155985A1

1шт.

12

156019A1

SPRING SEAT

SEAT - spring

10шт.

13

156017A1

SPRING

- spool return, arm

1шт.

14

156243A1

CAP

RETAINER - spring

5шт.

15

156244A1

CAP

COVER - spool, spring end

1шт.

16

156018A1

SPRING

- spool return

4шт.

155985A1

KIT

- seal, control valve, Includes: Ref. 8 and 11 this figure and 4, 6, 12, 18 and 19 on Figure 08-80

1шт.
