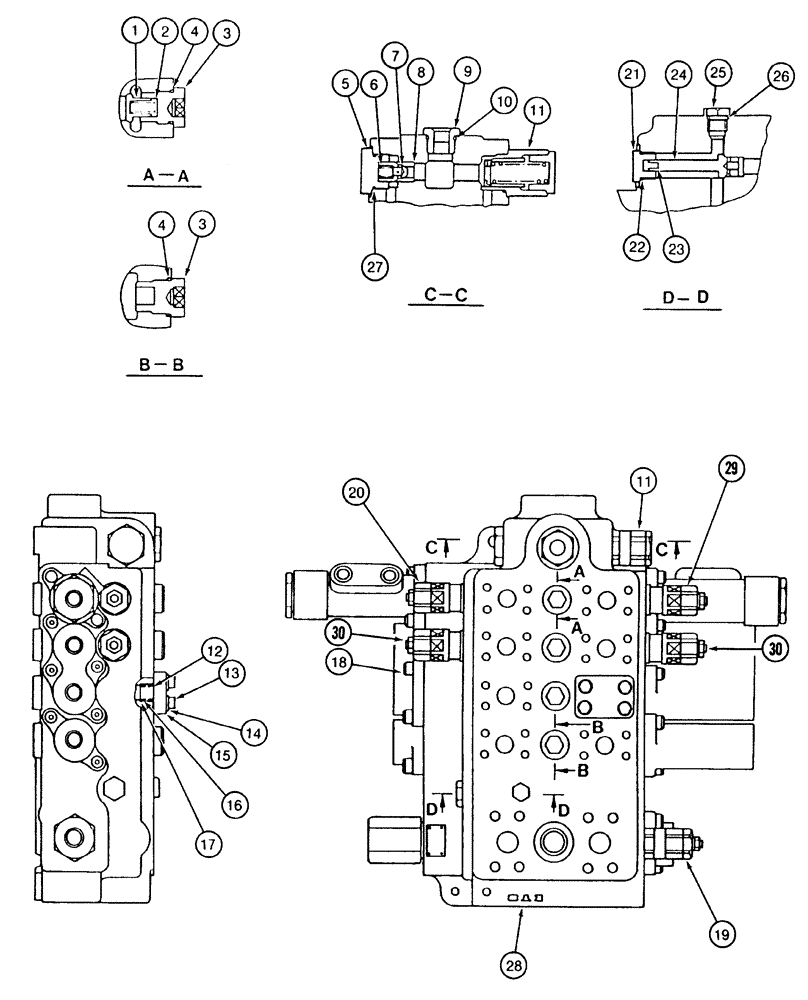

Запчасти Case 9040 (8-77C) - 158640A1 LEFT-HAND CONTROL VALVE ASSEMBLY, PLUGS, CHECK & RELIEF VALVES, LONG REACH MODELS (08) - HYDRAULICS

158640A1

VALVE, CONTROL

VALVE - control, hydraulic, left-hand, 4 spool, parts list figure 8-77A and 8-77C, see figure 8-08 for valve mounting, Includes: Ref. 1 - 30

1шт.

1

155925A1

VALVE POPPET

POPPET - valve

3шт.

2

156060A1

SPRING

- poppet

3шт.

3

155462A1

PLUG

- valve

4шт.

4

155224A1

O-RING

- valve

1шт.

5

155445A1

PLUG

- valve

1шт.

6

156016A1

SPRING

- compression

1шт.

7

155905A1

VALVE

PLUNGER - valve

1шт.

8

155575A1

SLEEVE

- poppet stop

1шт.

9

155441A1

PLUG

- valve

1шт.

10

154503A1

O-RING

- valve

1шт.

11

155760A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.

12

155439A1

PLUG

- valve

1шт.

13

156209A1

BOLT

BOLT - hex socket

4шт.

14

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

4шт.

15

156246A1

PLATE

COVER - port

1шт.

16

153963A1

BACK-UP RING

RING - backup

1шт.

17

154478A1

O-RING

- seal

1шт.

18

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

18шт.

19

164920A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.

20

164923A1

VALVE, PRESSURE RELI

VALVE - relief

1шт.

21

155436A1

PLUG

- valve

1шт.

22

155222A1

O-RING

- valve

1шт.

23

156011A1

SPRING

- poppet return

1шт.

24

155923A1

VALVE POPPET

POPPET - valve

1шт.

25

153883A1

PLUG

- valve

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- valve

1шт.

27

155224A1

O-RING

- valve

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - seal, plug

1шт.

29

164927A1

HOSE ASSY.

VALVE - relief

1шт.

30

164926A1

VALVE, PRESSURE RELI

VALVE - relief

2шт.
