(8-77A) - 158640A1 LEFT-HAND CONTROL VALVE ASSEMBLY, SPOOLS & RELATED PARTS, LONG REACH MODELS

Запчасти Case 9040 (8-77A) - 158640A1 LEFT-HAND CONTROL VALVE ASSEMBLY, SPOOLS & RELATED PARTS, LONG REACH MODELS (08) - HYDRAULICS

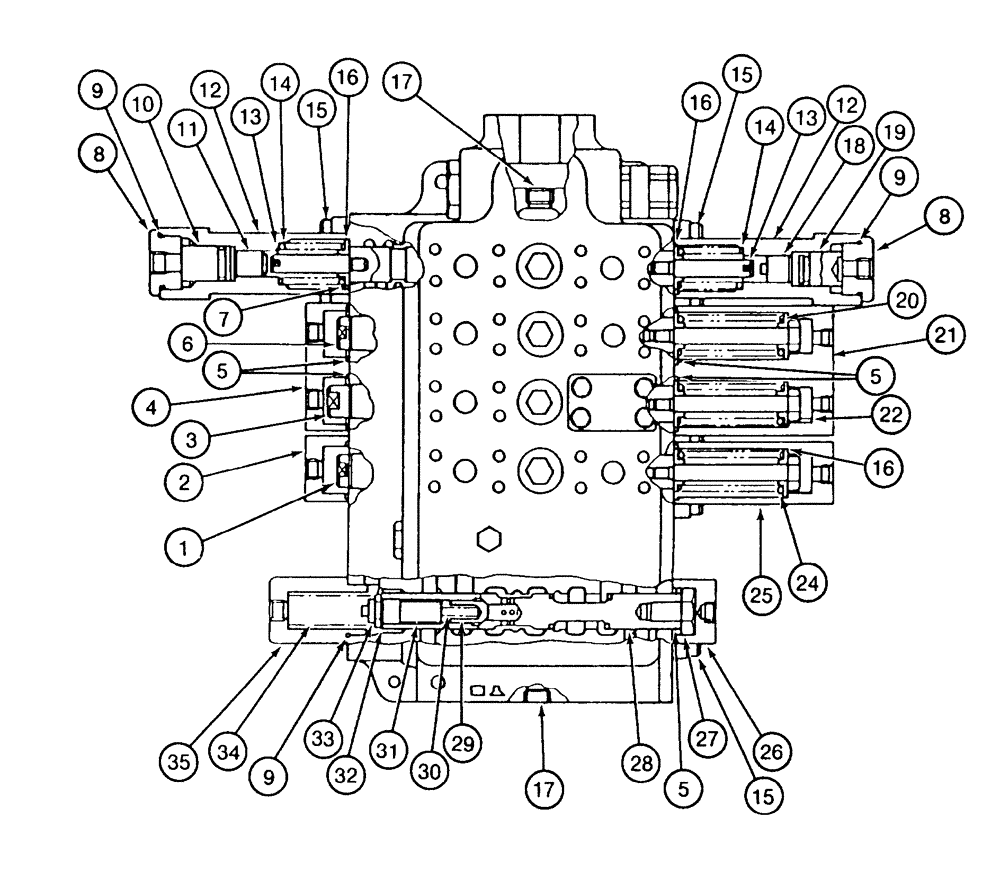

Схема запчастей Case 9040 - (8-77A) - 158640A1 LEFT-HAND CONTROL VALVE ASSEMBLY, SPOOLS & RELATED PARTS, LONG REACH MODELS (08) - HYDRAULICS
20
31
16
12
5
9
35
7
21
8
13
25
33
9
27
6
4
14
16
5
32
8
17
3
30
16
2
22
26
1
12
9
28
10
13
5
19
18
15
15
14
15
29
24
11
17
34
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

158640A1

VALVE, CONTROL

VALVE - control, hydraulic control, left-hand, 4 spool, parts list figures 8-77A and 8-77C, see figure 8-08 for valve mounting, Includes: Ref. 1 - 35

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - travel

1шт.

2

156247A1

CAP

COVER - spool end

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom

1шт.

4

156249A1

CAP

COVER - spool end

1шт.

5

154567A1

O-RING

- seal, spool cover

9шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - swing

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL - arm

1шт.

8

155444A1

PLUG

- valve, spool end

2шт.

9

163949A1

O-RING

- valve, seal, spool end plug

3шт.

10

155907A1

PISTON

- valve

1шт.

11

155906A1

PISTON

SHUTTLE - valve spool

1шт.

12

156250A1

CAP

HOUSING - piston and shuttle

2шт.

13

156251A1

END

ROD - spool end

2шт.

14

156058A1

SPRING

- piston return

2шт.

15

160287A1

BOLT,Hex Skt

BOLT - hex socket, special

18шт.

16

156019A1

SPRING SEAT

SEAT - spring

8шт.

17

151033A1

PLUG

- hex socket, special, port

2шт.

18

155927A1

PISTON

SHUTTLE - valve spool

1шт.

19

155926A1

PISTON

- control valve

1шт.

20

156059A1

SPRING

- spool return

1шт.

21

156283A1

CAP

COVER - spool, spring end

1шт.

22

156243A1

CAP

RETAINER - spring

3шт.

23

156057A1

SPRING

- valve

1шт.

24

156018A1

SPRING

- spool return

1шт.

25

156284A1

CAP

COVER - spool

1шт.

26

156252A1

CAP

COVER - spool end

1шт.

27

155442A1

PLUG

- valve, spool end

1шт.

28

NSS

NOT SOLD SEPARAT

SPOOL - selector

1шт.

29

155904A1

VALVE POPPET

POPPET - spool

1шт.

30

156015A1

SPRING

- poppet

1шт.

31

155574A1

SPACER

- valve, selector spool

1шт.

32

155221A1

O-RING

SEAL - valve

1шт.

33

155443A1

PLUG

- valve

1шт.

34

156054A1

SPRING

- spool return

1шт.

35

156248A1

CAP

RETAINER - spring

1шт.
