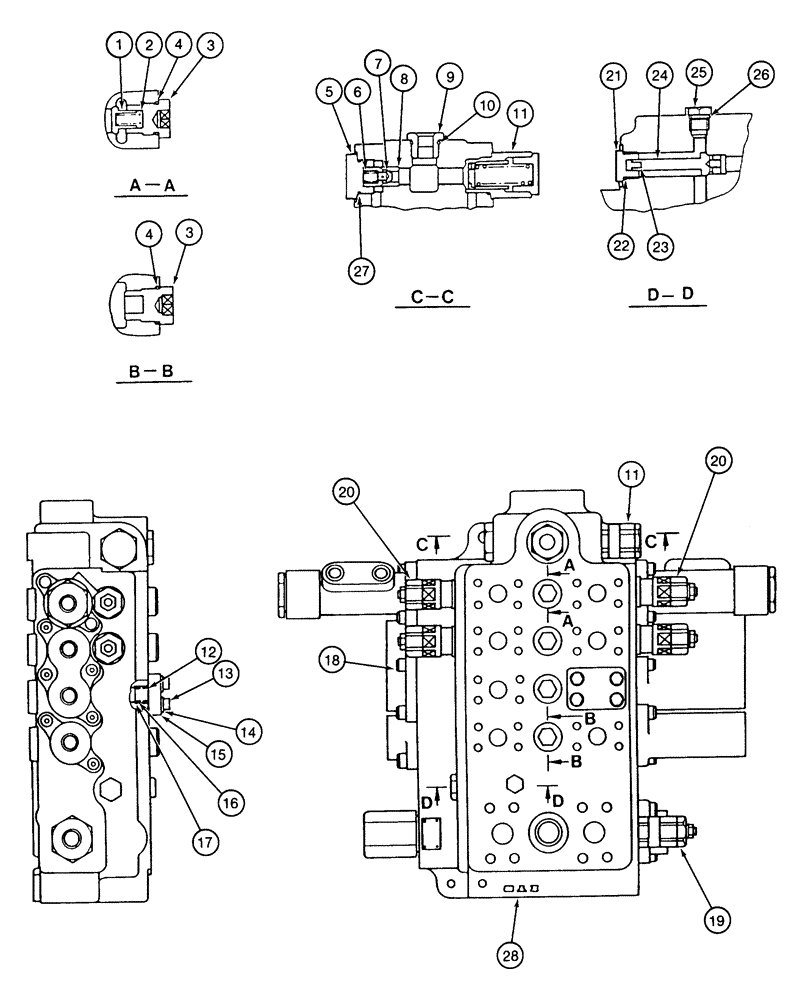

Запчасти Case 9040 (8-76) - 153354A1 LEFT-HAND CONTROL VALVE ASSY, PLUGS, CHECK & RELIEF VALVES, NOT USED ON LONG REACH MODELS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
153354A1
CONTROL
VALVE ASSEMBLY - hydraulic control, left-hand, 4 spool, parts list figures 8-74 and 8-76, see figure 8-08 for valve mounting, Includes: Ref. 1 - 28
1шт.
1
155925A1
VALVE POPPET
POPPET - valve, check
3шт.
2
156060A1
SPRING
- poppet
3шт.
3
155462A1
PLUG
- special port
4шт.
4
153879A1
O-RING
- plug
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
5
155445A1
PLUG
- special port
1шт.
6
156016A1
SPRING
- compression, poppet return
1шт.
7
155905A1
VALVE
PLUNGER - valve, check valve
1шт.
8
155575A1
SLEEVE
- poppet stop
1шт.
9
155441A1
PLUG
- port
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
11
155760A1
VALVE, PRESSURE RELI
VALVE - relief
1шт.
12
155439A1
PLUG
- port
1шт.
13
156209A1
BOLT
BOLT - hex socket
4шт.
14
892-10010
LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk
WASHER - lock, 10 mm
4шт.
15
156246A1
PLATE
COVER - port
1шт.
16
153963A1
BACK-UP RING
RING - backup
1шт.
17
154478A1
O-RING
- seal, plug
1шт.
18
156163A1
BOLT (MACHINE),Hex Skt
BOLT - hex socket, special
18шт.
19
155743A1
VALVE, PRESSURE RELI
VALVE - relief
1шт.
20
155745A1
VALVE PRESSURE RELIE
VALVE - relief, parts list figure 8-77E
4шт.
21
155436A1
PLUG
- special port
1шт.
22
153882A1
O-RING
- plug seal
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
23
156011A1
SPRING
- poppet return
1шт.
24
155923A1
VALVE POPPET
POPPET - valve
1шт.
25
153883A1
PLUG
- port
1шт.
26
154467A1
O-RING,10.8mm ID x 2.4mm Width
- port plug
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
27
153879A1
O-RING
- plug
1шт.
Part of Contol Valve Seal Kit P/N 155988A1
1шт.
28
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
155988A1
SEAL KIT
- seal, control valve, Includes: Ref. 4, 10, 22, 26 and 27 this figure and 5, 9 and 32 on Figure 08-74
1шт.
Выбрано товаров: 35
