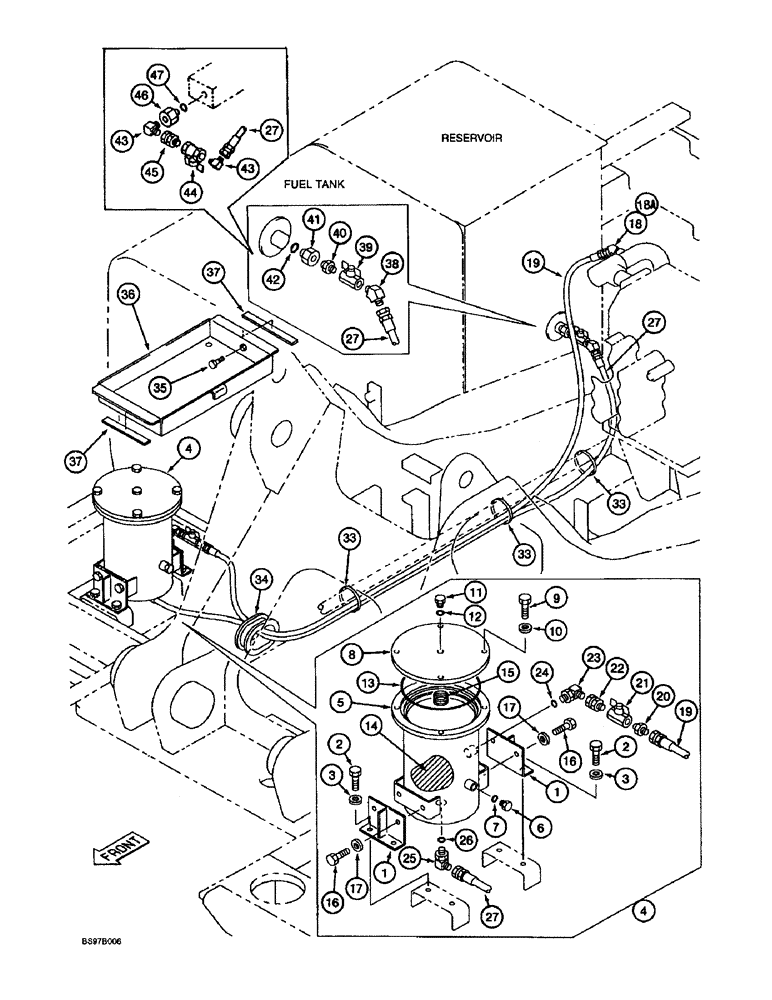

Запчасти Case 9030B (8-018) - BYPASS OIL FILTER AND LINES (08) - HYDRAULICS

1

159286A1

BRACKET

- mounting

2шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - bypass oil, Includes: Ref. 5 - 15

1шт.

5

159281A1

BODY

HOUSING - bypass filter

1шт.

6

159002A1

PLUG

- port, Includes: Ref. 7

1шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

8

159283A1

COVER

- bypass filter

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

10

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

11

159285A1

PLUG

- port, Includes: Ref. 12

1шт.

12

154467A1

O-RING,10.8mm ID x 2.4mm Width

- plug

1шт.

13

154859A1

O-RING

- bypass filter

1шт.

14

159282A1

HYDRAULIC OIL FILTER

ELEMENT - filter, bypass

1шт.

15

159837A1

SPRING

- compression

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

4шт.

17

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

18

153599A1

ADAPTER

ELBOW - 45 degree, for pipe thread boss, if used

1шт.

18

150933A1

ELBOW

- 45 degree, for O-ring boss, if used, Includes: Ref. 18A

1шт.

18a

154467A1

O-RING,10.8mm ID x 2.4mm Width

- 150933A1 elbow only, if used

1шт.

19

159007A1

HOSE

- 2300 mm (90-9/16 inch) long, filter inlet line

1шт.

20

153603A1

ADAPTER

- straight

1шт.

21

158923A1

DRAIN VALVE

VALVE - line shut-off

1шт.

22

153601A1

ADAPTER

- straight

1шт.

23

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

25

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, Includes: Ref. 26

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.

27

157853A1

HOSE,6.3 mm ID x 2050.00 mm

- 2050 mm (80-11/16 inch) long, filter discharge line

1шт.

33

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

34

162189A1

GROMMET

- rubber

1шт.

35

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

1шт.

36

162539A1

COVER

- special

1шт.

37

162540A1

CUSHION

- rubber

2шт.

38

153599A1

ADAPTER

ELBOW - 45 degree, used prior to these three P.I.N. DAC0301266, DAC0311008 or DAC0321005

1шт.

39

158923A1

DRAIN VALVE

VALVE - line shut-off, used prior to these three P.I.N. DAC0301266, DAC0311008 or DAC0321005

1шт.

40

150847A1

HYD CONNECTOR

CONNECTOR - straight, used prior to these three P.I.N. DAC0301266, DAC0311008 or DAC0321005

1шт.

41

160356A1

SOCKET

BUSHING - threaded, used prior to these three P.I.N. DAC0301266, DAC0311008 or DAC0321005, Includes: Ref. 42

1шт.

42

154487A1

O-RING

- bushing, used prior to these three P.I.N. DAC0301266, DAC0311008 or DAC0321005

1шт.

43

153596A1

ADAPTER

ELBOW - 90 degree, these four P.I.N. and after, DAC0301266, DAC0311008, DAC0321005 or DAC0331001

2шт.

44

158923A1

DRAIN VALVE

VALVE - line shut-off, these four P.I.N. and after, DAC0301266, DAC0311008, DAC0321005 or DAC0331001

1шт.

45

153601A1

ADAPTER

- straight, these four P.I.N. and after, DAC0301266, DAC0311008, DAC0321005 or DAC0331001

1шт.

46

160356A1

SOCKET

BUSHING - threaded, these four P.I.N. and after, DAC0301266, DAC0311008, DAC0321005 or DAC0331001, Includes: Ref. 47

1шт.

47

154487A1

O-RING

- bushing, these four P.I.N. and after, DAC0301266, DAC0311008, DAC0321005 or DAC0331001

1шт.
