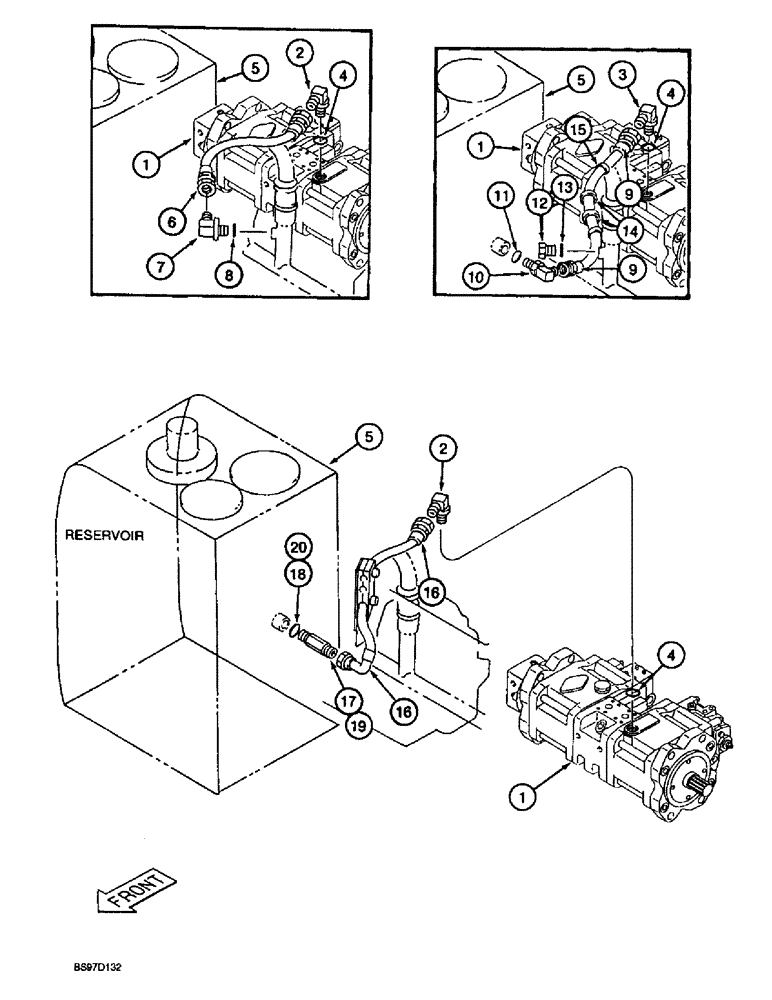

Запчасти Case 9030B (8-012) - PUMP RETURN LINE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - hydraulic, see Figure 8-004 for correct pump and related parts or Figures 8-116 - 8-128 for components

1шт.

2

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, all models except P.I.N. DAC0301236 thru DAC0301301 and DAC0311006 or DAC0311007

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

3

159371A1

ELBOW

- 90 degree, special, P.I.N. DAC0301236 thru DAC0301301 and DAC0311006 or DAC0311007, Includes: Ref. 4

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

4

154503A1

O-RING

- 157580A1 or 159371A1 elbow

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

5

REF

INSTRUCTION

RESERVOIR - hydraulic, see Figure 8-002 for reservoir and related parts

1шт.

6

161324A1

HYDRAULIC HOSE,19.00 mm ID x 540.00 mm

Pump return, prior to P.I.N. DAC0301236, DAC0311006, or DAC0321005 19.00 mm ID x 540.00 mm

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

7

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

- special, 90 degree, prior to P.I.N. DAC0301236, DAC0311006, or DAC0321005, Includes: Ref. 8

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

8

154503A1

O-RING

- 157580A1 elbow

1шт.

9

161268A1

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

Pump return, P.I.N. DAC0301236 thru DAC0301301 and DAC0311006 or DAC0311007 12.70 mm ID x 850.00 mm

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

10

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

- 90 degree, P.I.N. DAC0301236 thru DAC0301301 and DAC0311006 or DAC0311007, Includes: Ref. 11

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

11

154487A1

O-RING

- 150919A1 elbow

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

12

152924A1

PLUG

- tube port, if used, Includes: Ref. 13

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

13

154503A1

O-RING

- plug

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

14

157826A1

GUARD - hose, used with 161268A1 hose

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

15

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long, used with 161268A1 hose

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

16

164795A1

HOSE ASSY.

HOSE - 710 mm (28 inch) long, pump to reservoir return line, P.I.N. DAC0301302, DAC0311008, DAC0321005 or DAC0331001 and after

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

17

158759A1

HYD CONNECTOR

ADAPTER - straight, P.I.N. DAC0301302, DAC0311008, DAC0321005 or DAC0331001 to P.I.N. DAC03#2001, Includes: Ref. 18

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

18

154503A1

O-RING

- use with 158759A1 adapter

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

19

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ADAPTER - straight, P.I.N. DAC03#2001 and after, Includes: Ref. 20

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

20

154487A1

O-RING

- use with 151654A1 adapter

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.
