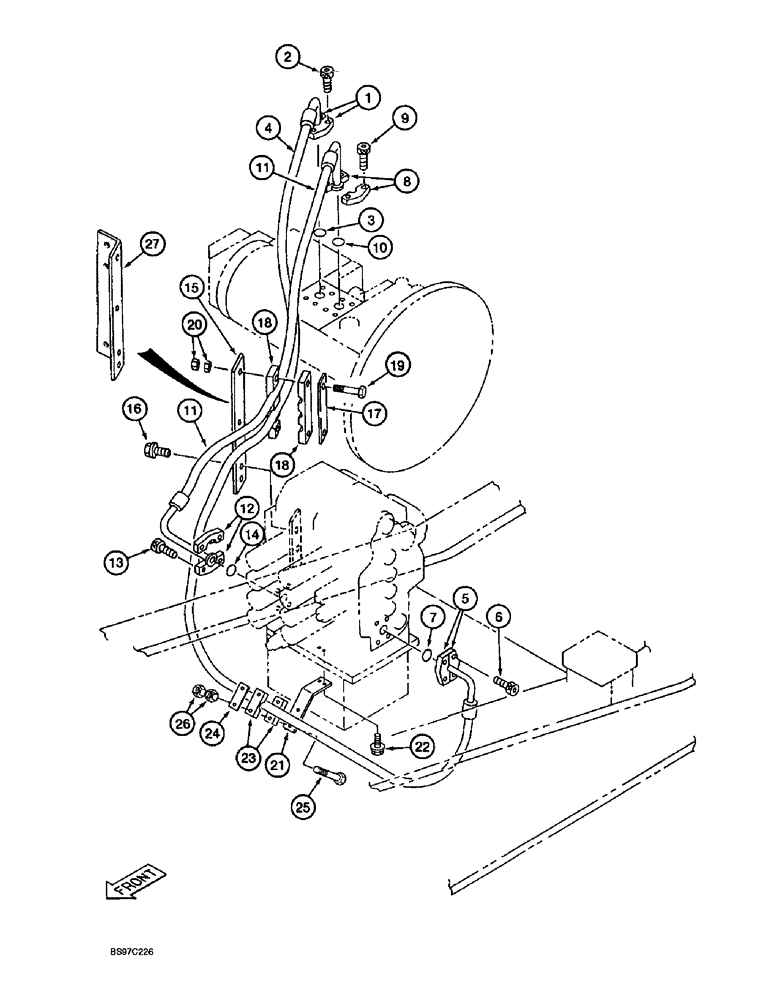

Запчасти Case 9030B (8-008) - CONTROL VALVE SUPPLY LINES (08) - HYDRAULICS

1

152598A1

HALF-COLLAR

FLANGE - split

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

3

161097A1

O-RING

- pressure line hose at pump

1шт.

4

159839A1

HYDRAULIC HOSE,19.05mm ID x 1750mm L

19.00 mm ID x 1750.00 mm

1шт.

5

153459A1

FLANGE

- split

2шт.

6

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

7

162246A1

O-RING

- pressure line hose at control valve

1шт.

8

152598A1

HALF-COLLAR

FLANGE - split

2шт.

9

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

10

161097A1

O-RING

- pressure line hose at pump

1шт.

11

159838A1

HYDRAULIC HOSE,19.00 mm ID x 930.00 mm

19.00 mm ID x 930.00 mm, Serial Range: -DAC0##2001

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

11

165144A1

HYDRAULIC HOSE,19mm ID x 920mm L

19.00 mm ID x 920.00 mm, Start Serial: DAC0##2001

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

12

153459A1

FLANGE

- split

2шт.

13

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10-1.5 x 30 mm, class 12.9

4шт.

14

162246A1

O-RING

- pressure line hose at control valve

1шт.

15

159840A1

BRACKET

- flat, prior to these four P.I.N. (DAC0301302, DAC0311008, DAC0321005 or DAC0331001)

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

15

163684A1

BRACKET

- flat, P.I.N. DAC0301302 thru DAC0302000; DAC0311008 thru DAC0312000; DAC0321005 thru DAC0322000; or DAC0331001 thru DAC0332000

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

16

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

17

159842A1

PLATE, SPACER

PLATE - flat, prior to these four P.I.N. (DAC0301302, DAC0311008, DAC0321005 or DAC0331001)

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

17

158996A1

PLATE

- flat, these four P.I.N. and after (DAC0301302, DAC0311008, DAC0321005 or DAC0331001)

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

18

159841A1

COLLAR

CLAMP - hose, prior to these four P.I.N. (DAC0301302, DAC0311008, DAC0321005 or DAC0331001)

2шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

18

158995A1

COLLAR

CLAMP - hose, these four P.I.N. and after (DAC0301302, DAC0311008, DAC0321005 or DAC0331001)

2шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.

19

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

- hex, 12-1.75 x 100 mm, class 10.9

2шт.

20

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

4шт.

21

165398A1

BRACKET

- support, was 162247A1

1шт.

22

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

23

162248A1

COLLAR

CLAMP - hose

2шт.

24

162249A1

LARGE PLATE

PLATE - flat

1шт.

25

827-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 10.9

BOLT - hex, 12-1.75 x 85 mm, class 10.9

2шт.

26

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm-1.75, class 10

4шт.

27

165466A1

BRACKET

- angle, 90 degree, Start Serial: DAC03#2001

1шт.

See Figure 1-2 for explanation of P.I.N. and model variations.

1шт.
