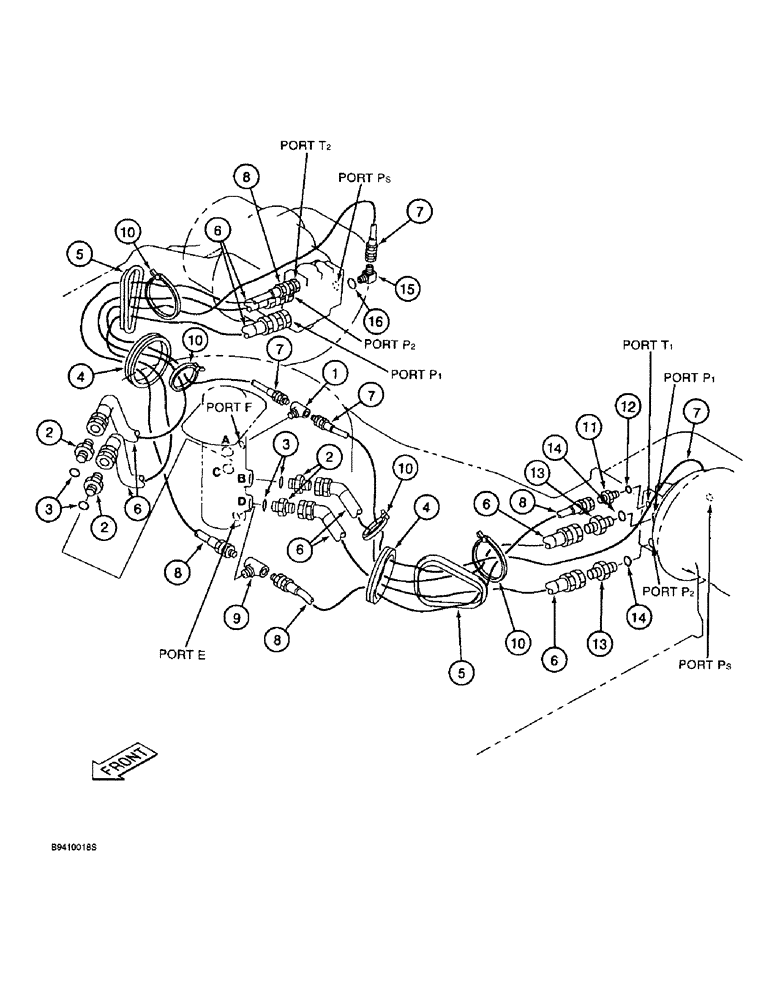

Запчасти Case 9030B (6-22) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, TIMBER KING MODELS (06) - POWER TRAIN

1

152509A1

TEE

- special, in hydraulic swivel port F

1шт.

2

153001A1

ADAPTER

- special, in swivel ports A, B, C and D, Includes: Ref. 3

4шт.

3

154503A1

O-RING

- adapter

1шт.

4

159398A1

RUBBER BLOCK

GUARD - hose

2шт.

5

160406A1

RUBBER BLOCK

GUARD - hose

2шт.

6

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- From Ref. 2, Adapter in port A of swivel to port P2 in RH motor 25.40 mm ID x 2470.00 mm

1шт.

6

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- From Ref. 2, Adapter in port C of swivel to port P1 in RH motor 25.40 mm ID x 2470.00 mm

1шт.

6

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- From Ref. 2, Adapter in port B of swivel to port P1 in LH motor 25.40 mm ID x 2470.00 mm

1шт.

6

164198A1

HYDRAULIC HOSE,25.40 mm ID x 2470.00 mm

- From Ref. 2, Adapter in port D of swivel to port P2 in RH motor 25.40 mm ID x 2470.00 mm

1шт.

7

157790A1

HOSE,6.3mm ID x 3000mm L

- 3000 mm (118-1/8 inch) long, from Ref. 1, special tee in port F of swivel to Ref. 15, elbow in port Ps of right-hand motor

1шт.

7

157790A1

HOSE,6.3mm ID x 3000mm L

- 3000 mm (118-1/8 inch) long, from Ref. 1, special tee in port F of swivel to Ref. 15, elbow in port Ps of left-hand motor

1шт.

8

164199A1

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

- From Ref. 9, Special tee in port E of swivel to Ref. 11, Adapter in port T2 of RH motor 12.70 mm ID x 2500.00 mm

1шт.

8

164199A1

HYDRAULIC HOSE,12.70 mm ID x 2500.00 mm

- From Ref. 9, Special tee in port E of swivel to Ref. 11, Adapter in port T1 of LH motor 12.70 mm ID x 2500.00 mm

1шт.

9

152195A1

TEE

- special, in hydraulic swivel port E

1шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, in right-hand motor port T1 and left-hand motor port T2, Includes: Ref. 12

2шт.

12

154487A1

O-RING

- adapter

1шт.

13

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, in ports P1 and P2 of drive motors, Includes: Ref. 14

4шт.

14

154523A1

O-RING

- adapter

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, in port Ps of drive motors, Includes: Ref. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
