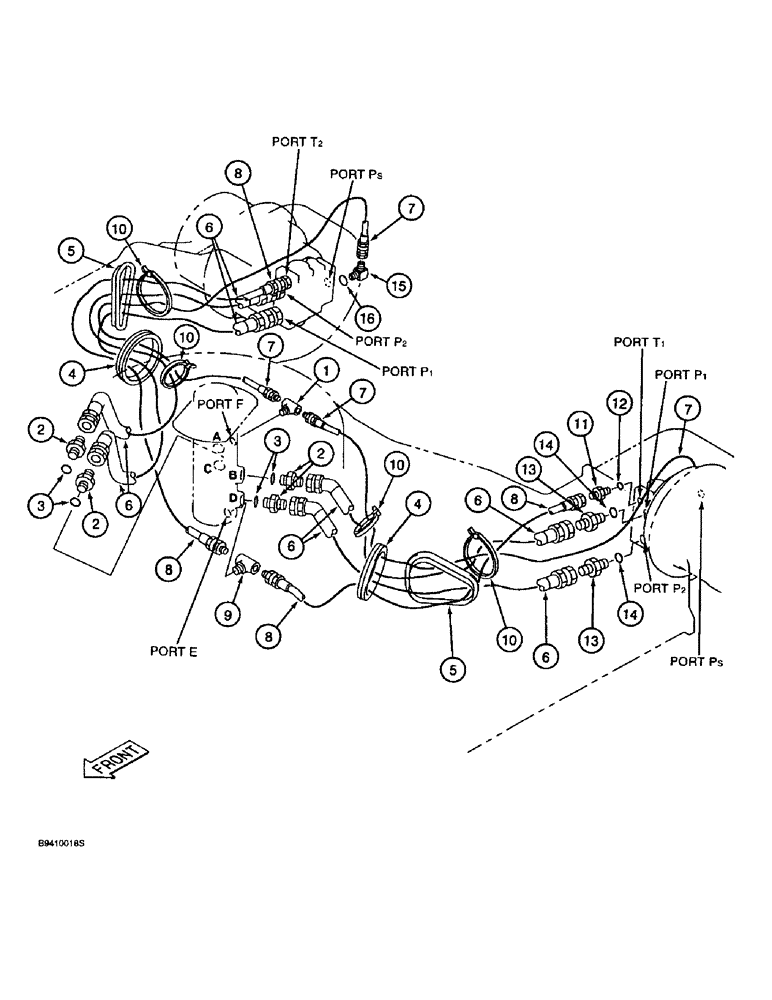

Запчасти Case 9030B (6-20) - TRACK DRIVE HYDRAULIC CIRCUIT, SWIVEL TO TRACK DRIVE MOTORS, FOR ALL EXCEPT TIMBER KING MODELS (06) - POWER TRAIN

1

152509A1

TEE

- special, in hydraulic swivel port F

1шт.

2

153001A1

ADAPTER

- special, in swivel ports A, B, C and D, Includes: Ref. 3

4шт.

3

154503A1

O-RING

- adapter

1шт.

4

160414A1

RUBBER BLOCK

GUARD - hose

2шт.

5

160406A1

RUBBER BLOCK

GUARD - hose

2шт.

6

160429A1

HOSE ASSY.

HOSE - 2120 mm (83-1/2 inch) long, for all except Timber King or Narrow Track Models

4шт.

6

165935A1

HYDRAULIC HOSE,25.40 mm ID x 1950.00 mm

- For Narrow Track Models Only 25.40 mm ID x 1950.00 mm

4шт.

7

152289A1

HOSE,6.3mm ID x 2550mm L

- For all except Timber King or Narrow Track Models 63.00 mm ID x 2550.00 mm

2шт.

7

151895A1

HOSE,2450.00 mm

- For Narrow Track models only 2450.00 mm

2шт.

8

152435A1

HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm

For all except Timber King or Narrow Track Models 12.70 mm ID x 2150.00 mm

2шт.

8

165933A1

HYDRAULIC HOSE,12.70 mm ID x 1960.00 mm

- For Narrow Track Models Only 12.70 mm ID x 1960.00 mm

2шт.

9

152195A1

TEE

- special, in hydraulic swivel port E

1шт.

10

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

4шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - straight, in right-hand motor port T1 and left-hand motor port T2, Includes: Ref. 12

2шт.

12

154487A1

O-RING

- adapter

1шт.

13

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - straight, in ports P1 and P2 of drive motors, Includes: Ref. 14

4шт.

14

154523A1

O-RING

- adapter

1шт.

15

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, in port Ps of drive motors, Includes: Ref. 16

2шт.

16

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow

1шт.
