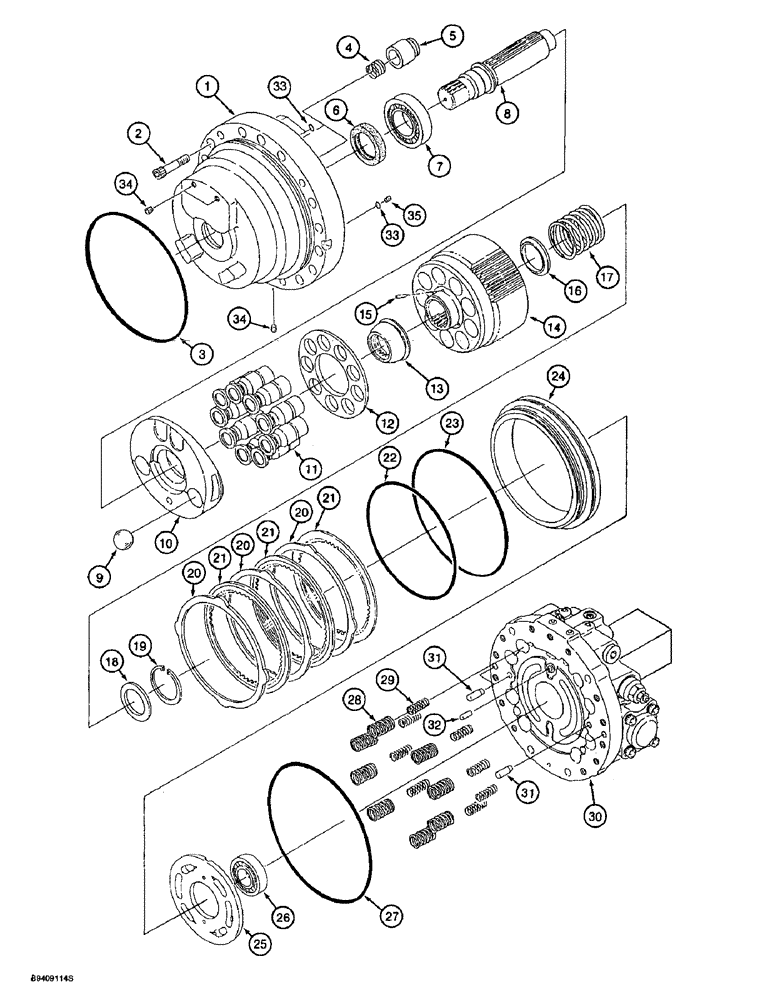

Запчасти Case 9030B (6-08) - TRACK DRIVE MOTOR, SHAFT, CYLINDER BLOCK AND PISTONS, ALL MODELS EXCEPT TIMBER KING MODELS (06) - POWER TRAIN

160558A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, Includes: Ref. 1 - 35

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - track drive motor

1шт.

2

160292A1

BOLT,M12 x 1.75 x 60mm

BOLT - special, 12-1.75 x 60 mm

13шт.

3

159986A1

O-RING

- housing

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

4

160592A1

SPRING

- piston

2шт.

5

NSS

NOT SOLD SEPARAT

PISTON - motor

2шт.

6

159955A1

OIL SEAL

- oil

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

7

160597A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball

1шт.

8

160028A1

SHAFT

- motor

1шт.

9

155950A1

BALL

- steel

2шт.

10

160608A1

TRAY

PLATE - swash

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - cylinder block

9шт.

Part of cylinder block kit P/N 160573A1.

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE - retainer

1шт.

Part of retainer plate kit P/N 160574A1.

1шт.

13

NSS

NOT SOLD SEPARAT

BALL - thrust

1шт.

Part of retainer plate kit P/N 160574A1.

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - cylinder

1шт.

Part of cylinder block kit P/N 160573A1.

1шт.

15

155631A1

COTTER PIN

PIN - retainer

3шт.

16

160203A1

SPRING SEAT

SEAT - spring

1шт.

17

160590A1

SPRING

- cylinder block

1шт.

18

158113A1

COLLAR

- spring seat

1шт.

19

160546A1

RING, SNAP

RING - snap

1шт.

20

156326A1

PLATE

- separator

3шт.

21

160610A1

DISC

PLATE - friction

3шт.

22

159956A1

SEAL,184.2mm ID x 191.5mm OD x 5mm Thk

D-RING - brake piston, inner

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

23

160498A1

SEAL,201.4mm ID x 208.4mm OD x 5mm Thk

D-RING - brake piston, outer

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

24

160200A1

PISTON

- brake

1шт.

25

160609A1

PORT

PLATE - valve

1шт.

26

160398A1

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING - captive roller

1шт.

27

155200A1

O-RING

-, Serial Range: housing-cover

1шт.

Part of motor seal kit P/N 160219A1.

1шт.

28

160591A1

SPRING

- brake piston, outer

8шт.

29

160266A1

SPRING

- brake piston, inner

8шт.

30

REF

INSTRUCTION

PLATE ASSEMBLY, see Figure 6-12

1шт.

31

160097A1

COTTER PIN

PIN - dowel

4шт.

32

155578A1

PIN

- dowel

1шт.

33

154451A1

O-RING

- orifice

4шт.

Part of motor seal kit P/N 160219A1.

1шт.

34

155479A1

PLUG

- port

5шт.

35

NSS

NOT SOLD SEPARAT

ORIFICE - housing

1шт.

160219A1

SEAL KIT

KIT - seal, motor, Includes: Ref. 3, 6, 22, 23, 27 and 33 on this figure and Ref. 3, 13, 20, 25, 26, 31, 32, 34, 39 - 42 and 48 on Figure 6-12

1шт.

160573A1

SET OF PARTS

KIT - cylinder block, Includes: Ref. 11 and 14

1шт.

160574A1

SET OF PARTS

KIT - retainer plate, Includes: Ref. 12 and 13

1шт.
