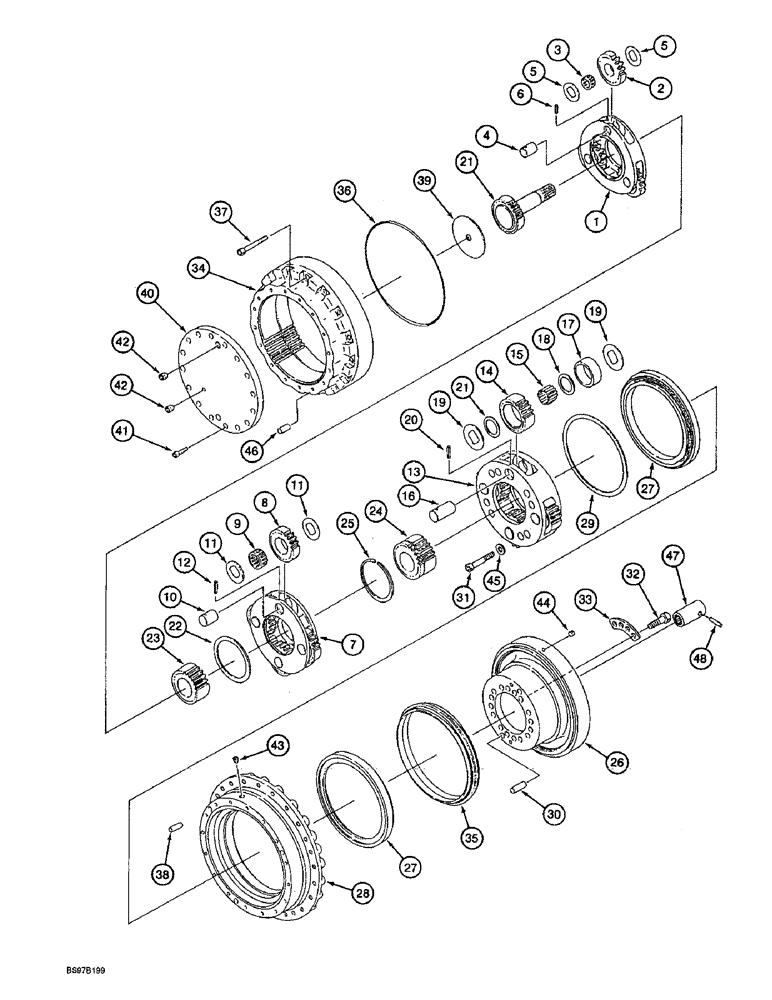

Запчасти Case 9030B (6-04) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

160142A1

REDUCER

TRANSMISSION ASSEMBLY - without track drive motor, Includes: Ref. 1 - 6

1шт.

160146A1

GEAR WHEEL

CARRIER ASSEMBLY A - planetary gear; Incl Ref 1 - 6

1шт.

1

160094A1

GEAR WHEEL

CARRIER A - planetary gears

1шт.

2

160004A1

SUN GEAR

GEAR - planetary

3шт.

3

160278A1

BEARING, NEEDLE,30mm ID x 40mm OD x 19.8mm W

NEEDLE - bearing

3шт.

4

160029A1

LARGE PIN

SHAFT - gear

3шт.

5

160291A1

THRUST WASHER

WASHER - thrust

6шт.

6

160109A1

PIN, ROLL

PIN - roll, special

2шт.

160144A1

HOLDER

CARRIER ASSEMBLY B - planetary gear, replaces 160144A1, carrier assembly B (replaces 164714A1 ), Includes: Ref. 7 - 12

1шт.

7

160095A1

GEAR WHEEL

CARRIER B - planetary gears

1шт.

8

160005A1

SUN GEAR

GEAR - planetary

4шт.

9

160273A1

NEEDLE BEARING,35mm ID x 51mm OD x 24.8mm W

BEARING - roller

4шт.

10

160030A1

SHAFT

- gear

4шт.

11

160043A1

THRUST WASHER

WASHER - thrust

3шт.

12

160098A1

PIN, ROLL

PIN - roll, special

4шт.

160145A1

GEAR WHEEL

CARRIER ASSEMBLY C - planetary gear, Includes: Ref. 13 - 20

1шт.

13

160207A1

HOLDER

CARRIER C - planetary gears

1шт.

14

160010A1

SUN GEAR

GEAR - planetary

4шт.

15

160326A1

ROLLER

NEEDLE - bearing

68шт.

16

160031A1

SHAFT

- gear

4шт.

17

160037A1

BUSHING

RACE - bearing

4шт.

18

160093A1

COLLAR

- needle retaining

8шт.

19

160044A1

THRUST WASHER

WASHER - thrust

8шт.

20

160099A1

PIN, ROLL

PIN - roll, special

4шт.

21

160007A1

PINION

GEAR - drive

1шт.

22

160038A1

PLATE, THRUST

PLATE - thrust

1шт.

23

160008A1

SUN GEAR

GEAR B - sun

1шт.

24

160009A1

SUN GEAR

GEAR C - sun

1шт.

25

155643A1

RING, SNAP

RING - snap

1шт.

26

NSS

NOT SOLD SEPARAT

FLANGE - final drive transmission

1шт.

27

156144A1

BEARING, BALL,240mm ID x 310mm OD x 32mm W

BEARING - ball

2шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

29

160223A1

SHIM KIT

KIT - shim

1шт.

30

160104A1

PIN

- dowel

4шт.

31

863-16090

HEX SOC SCREW,M16 x 90mm, Cl 12.9

BOLT - hex socket, 16-2.0 x 90 mm, class 12.9

4шт.

32

863-18055

HEX SOC SCREW,M18 x 55mm, Cl 12.9

BOLT - hex socket, 18-2.5 x 55 mm, class 12.9

16шт.

33

156338A1

PLATE

- lock

4шт.

34

160006A1

PINION

GEAR - ring

1шт.

160575A1

SEAL KIT

KIT - seal, replaces 160224A1, seal kit, Includes: Ref. 35 and 36

1шт.

35

155299A1

SEAL

- face

1шт.

36

155183A1

O-RING

- seal

1шт.

37

156200A1

BOLT,M14 x 95mm

BOLT - hex socket, 14-2.0 x 95 mm

16шт.

38

155647A1

COTTER PIN

PIN - dowel

3шт.

39

160220A1

SET OF PARTS

KIT - thrust plate

1шт.

40

160325A1

COVER

- final drive transmission

1шт.

41

863-10020

HEX SOC SCREW,M10 x 20mm, Cl 12.9

BOLT - hex socket, 10-1.5 x 20 mm, class 12.9

16шт.

42

151033A1

PLUG

- hex socket, special

3шт.

43

151026A1

PLUG

- port

1шт.

44

151022A1

PLUG

- hex socket, special

1шт.

45

892-10016

LOCK WASHER,M16

WASHER - lock, 16 mm

4шт.

46

155578A1

PIN

- dowel

1шт.

47

160002A1

COUPLING

- drive motor

1шт.

48

738-1650

LOCK PIN,M6 x 50, Slotted

PIN - roll, 6 x 50 mm

1шт.
