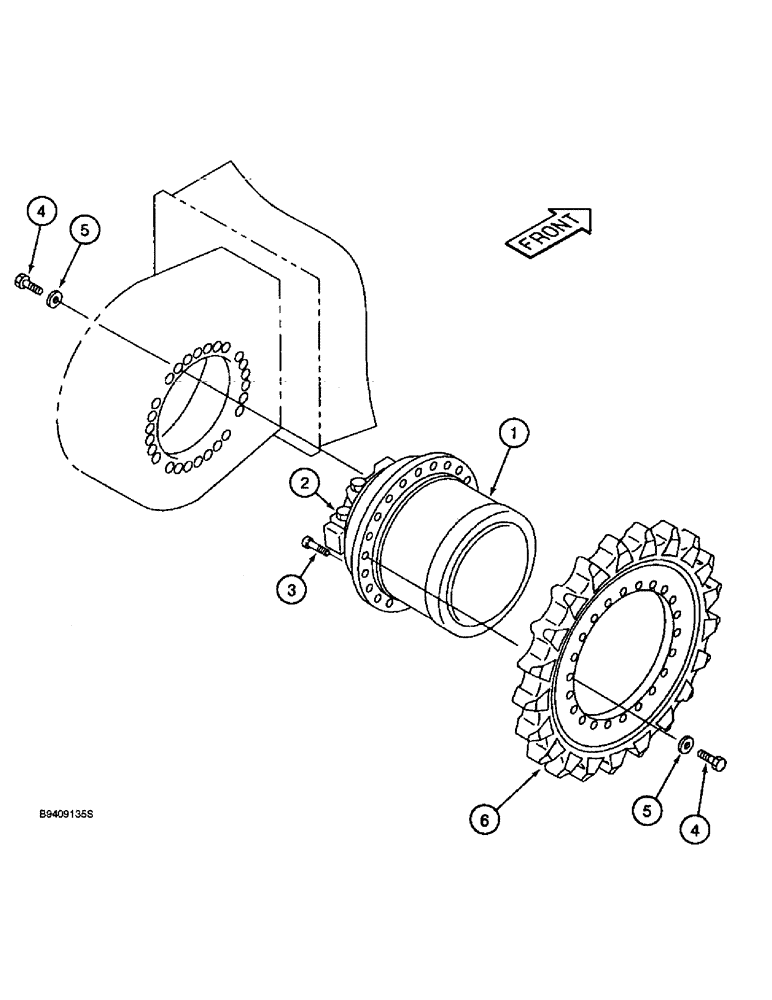

Запчасти Case 9030B (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

160432A1

MOTO-REDUCTION GEAR

MOTOR ASSEMBLY - track drive, final drive, Includes: Ref. 1, 2 P/N 160558A1 and 3

2шт.

All models except Timber King models. See Figure 1-2 for explanation of model variations.

1шт.

159423A1

MOTOR

ASSEMBLY - track drive, final drive, Includes: Ref. 1 and 2 P/N 160141A1

2шт.

Timber King models only. See Figure 1-2 for explanation of model variations.

1шт.

1

160142A1

REDUCER

TRANSMISSION ASSEMBLY - see Figure 6-04

1шт.

2

160558A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see Figure 6-08

1шт.

All models except Timber King models. See Figure 1-2 for explanation of model variations.

1шт.

2

160141A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, see Figure 6-10

1шт.

Timber King models only. See Figure 1-2 for explanation of model variations.

1шт.

3

160601A1

BOLT

BOLT - shoulder, special, motor assembly attaching if used

4шт.

All models except Timber King models. See Figure 1-2 for explanation of model variations.

1шт.

4

86900235

BOLT,Hex, M16 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

96шт.

All models except Timber King models. See Figure 1-2 for explanation of model variations.

1шт.

4

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

96шт.

Timber King models only. See Figure 1-2 for explanation of model variations.

1шт.

5

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

96шт.

6

165181A1

WHEEL GEAR

SPROCKET - track drive, was 159679A1

2шт.
