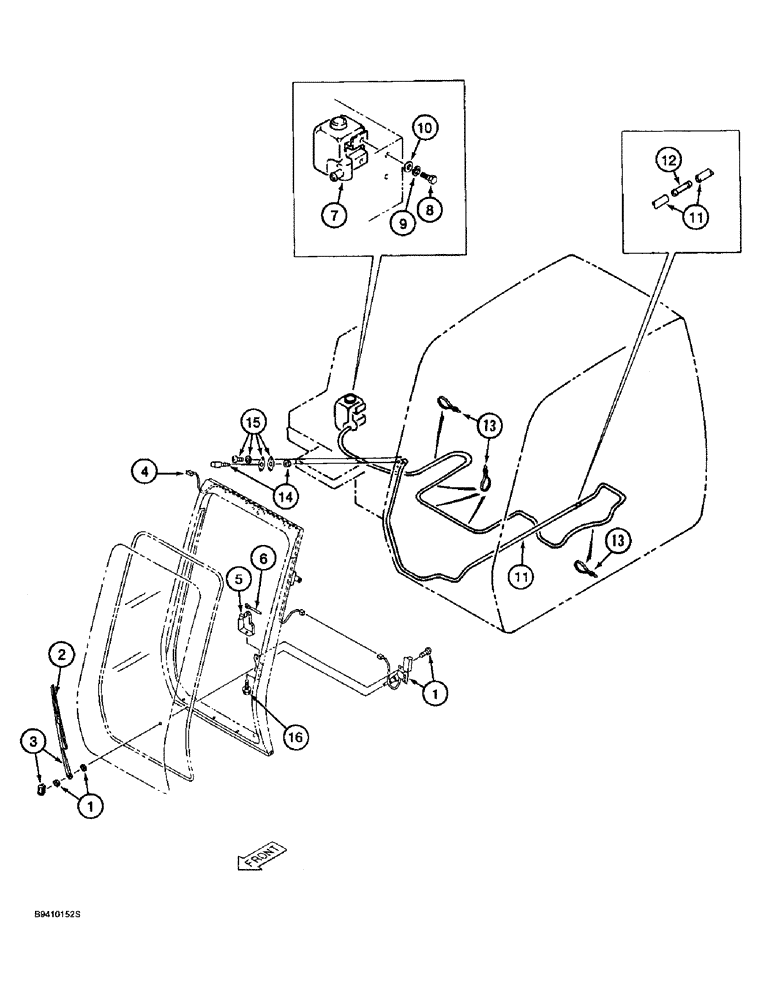

Запчасти Case 9030B (4-34) - WINDSHIELD WIPER AND WASHER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

MOTOR - wiper, windshield, see Figure 9-072 for correct assembly and components

1шт.

NSS

NOT SOLD SEPARAT

WIPER ASSEMBLY - windshield, order Ref. 2 and 3

1шт.

2

REF

INSTRUCTION

BLADE - wiper, windshield, see Figure 9-072 for correct assembly and components

1шт.

3

REF

INSTRUCTION

ARM - wiper, windshield, see Figure 9-072 for correct assembly and components

1шт.

4

161442A1

HARNESS

- electrical wiring, wiper motor

1шт.

5

161439A1

COVER

- wiper motor

1шт.

6

161440A1

MOUNTING CLIP

STRAP - tie, special

1шт.

7

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

8

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

2шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

10

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.6 x 12 x 1.6 mm

2шт.

11

152829A1

HOSE,4 mm ID, 7 mm OD, 3500 mm Length

TUBE - vinyl, 3500 mm (137-3/4 inch) long, windshield washer supply

1шт.

12

152824A1

ADAPTER

CONNECTOR - special

1шт.

13

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

5шт.

14

161344A1

DIFFUSER

NOZZLE - special, windshield washer

1шт.

15

161345A1

ADAPTER

- nozzle, special, windshield washer

1шт.

16

161441A1

FLANGE BOLT

BOLT - flange, special

1шт.
