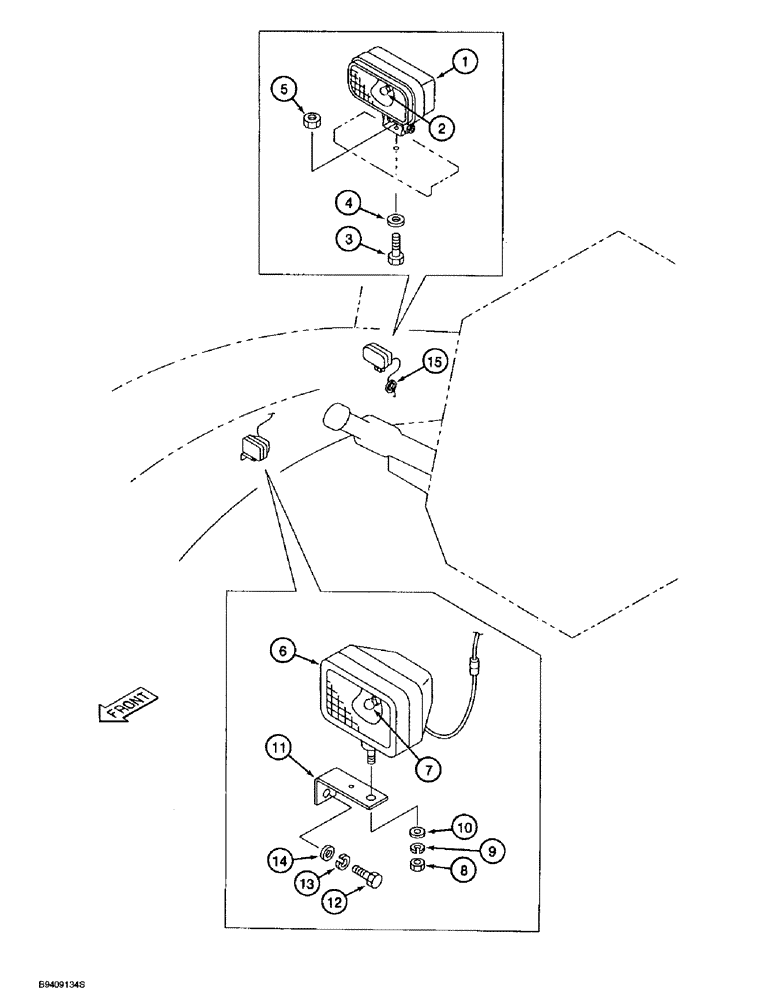

Запчасти Case 9030B (4-32) - WORK LAMPS AND WIRING (04) - ELECTRICAL SYSTEMS

1

159600A1

LAMP, WORK

LAMP ASSEMBLY - work, mounted on right-hand front upper structure, Includes: Ref. 2

1шт.

2

152809A1

BULB

LAMP - sealed beam

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9

1шт.

6

159598A1

PORTABLE LAMP

LAMP ASSEMBLY - work, boom mounted, Includes: Ref. 7

1шт.

7

152812A1

BULB

LAMP - sealed beam

1шт.

8

829-1414

NUT,M14, Cl 10

- hex, 14 mm-2.0, class 10

1шт.

9

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

10

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

- flat, 15.5 x 28 x 3 mm, hardened

1шт.

11

150834A1

BRACKET

- boom, lamp mounting

1шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

1шт.

14

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

15

159656A1

GROMMET

- special

1шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
