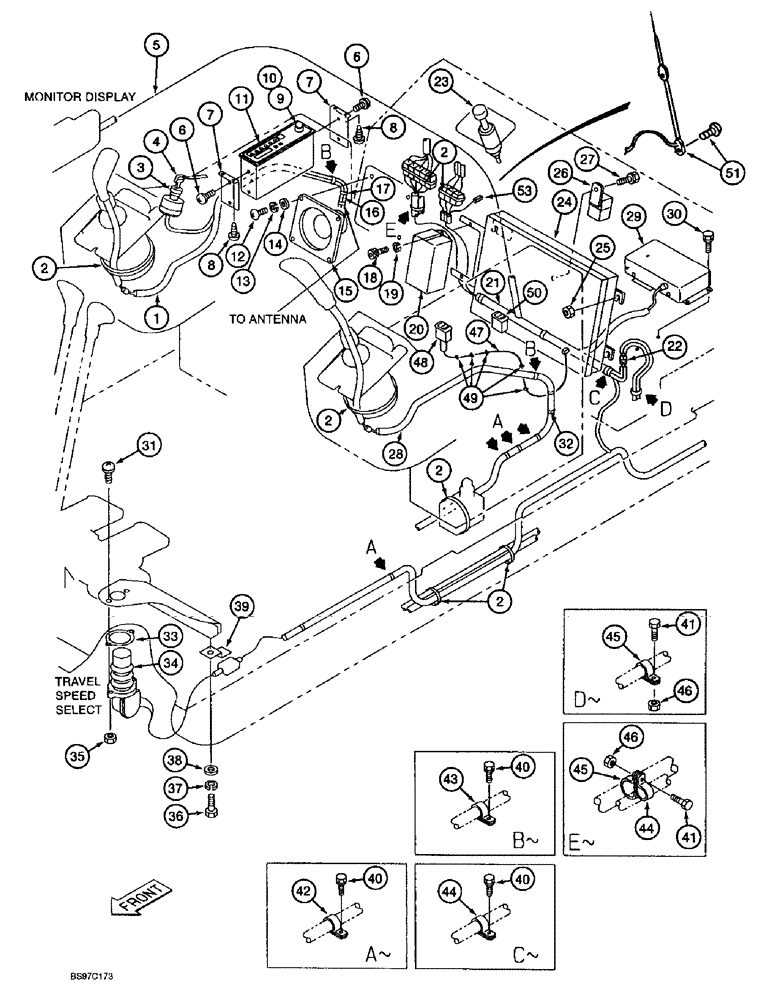

Запчасти Case 9030B (4-24) - CAB ELECTRICAL SYSTEM, CONSOLE, CONTROLLER & AUXILIARY CONTROL HARNESSES, PRIOR TO P.I.N. DAC03#2001 (04) - ELECTRICAL SYSTEMS

1

159927A1

HARNESS

- wiring, right-hand

1шт.

2

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

162217A1

IGNITION SWITCH

SWITCH ASSEMBLY - starter, engine, Includes: Ref. 3 and 4

1шт.

3

159909A1

IGNITION SWITCH

SWITCH - ignition

1шт.

4

150979A1

IGNITION KEY

KEY - ignition switch

1шт.

REF. 4 (150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2.

1шт.

5

159926A1

HARNESS

- cab

1шт.

6

157537A1

SCREW

- special, radio mounting

4шт.

7

159944A1

SUPPORT

BRACKET - radio mounting

2шт.

8

159945A1

SCREW,Truss Hd

- special, bracket mounting

4шт.

159940A1

RADIO

- AM/FM, Includes: Ref. 9 thru 11

1шт.

9

159941A1

SET OF PARTS

KIT - radio parts

1шт.

10

159942A1

SET OF PARTS

KIT - radio parts

1шт.

11

159943A1

RADIO

- AM/FM, not available, order 159940A1

1шт.

12

159947A1

SCREW,Phil Pan Head, M4 x 12mm

- special, speaker mounting

4шт.

13

160383A1

SPRING WASHER

WASHER - lock, special

4шт.

14

160384A1

WASHER

- flat, special

4шт.

15

159946A1

SPEAKER

- radio

1шт.

16

152500A1

CABLE ASSY.

WIRE - antenna

1шт.

17

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

18

862-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

BOLT - hex socket, 6-1.0 x 20 mm, class 12.9

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

20

159910A1

BOX, FUSE

BOX - fuse, Includes: Ref. 20A - 20C

1шт.

20a

121412A1

FUSE,10A, Mini, Red

Not shown 10 Amp, Mini

1шт.

20b

121413A1

FUSE,15A, Mini, Blue

Not shown 15 Amp, Mini

1шт.

20c

121414A1

FUSE,20A, Mini, Yellow

- mini, 20 ampere, Not shown

1шт.

21

159187A1

HARNESS

- cab

1шт.

22

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

23

159920A1

LIGHTER, CIGARETTE

LIGHTER - cigar

2шт.

24

165636A1

CONTROL

LER - electrical system, replaces 163113A1, 163762A1 and 164509A1, 165056A1 and 165188A1 controllers

1шт.

24

168788A1R

REMAN ELECT CONTROL

9030B CASE CRAWLER EXCAVATOR, LER - electrical system, PRIOR TO P.I.N. DAC03#2001 (11/94-), Reman for New PN 165636A1

1шт.

24

168788A1C

CORE-ELECTRONIC CONT

Return Number

1шт.

25

150469A1

FLANGE NUT

- hex flange, special

4шт.

26

159919A1

RELAY

- electrical system controller

12шт.

27

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

12шт.

28

159928A1

HARNESS

- wiring, left-hand

1шт.

29

162902A1

ECU

CONTROLLER - motor driver

1шт.

30

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

4шт.

31

159922A1

SCREW,Pan Hd, M5 x 20mm

- special, switch retaining

2шт.

32

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

33

160663A1

PACKING

GASKET - switch

1шт.

34

159921A1

SWITCH, CRUISE INC/D

SWITCH - special, travel speed

2шт.

35

825-1405

NUT,M5, Cl 8

2шт.

36

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 12 mm, class 10.9

1шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

39

158962A1

CLIP

- harness

1шт.

40

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

41

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

1шт.

42

159150A1

COLLAR

CLAMP - P-type

1шт.

43

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

44

157808A1

COLLAR

CLAMP - P-type

1шт.

45

158970A1

COLLAR

CLAMP - P-type

1шт.

46

157699A1

FLANGE NUT

- hex flange, special

1шт.

47

162641A1

HARNESS

- wiring, auxiliary hydraulic

1шт.

48

162642A1

SWITCH

- special, auxiliary hydraulic

1шт.

49

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

50

159923A1

SWITCH

- rocker, cold start

1шт.

51

161372A1

ANTENNA

- cab radio

1шт.

52

163846A1

HARNESS

- wiring, not shown

1шт.

53

231959A1

DIODE

- electrical

1шт.

38

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.
