(4-20) - BATTERIES AND MOUNTING

Запчасти Case 9030B (4-20) - BATTERIES AND MOUNTING (04) - ELECTRICAL SYSTEMS

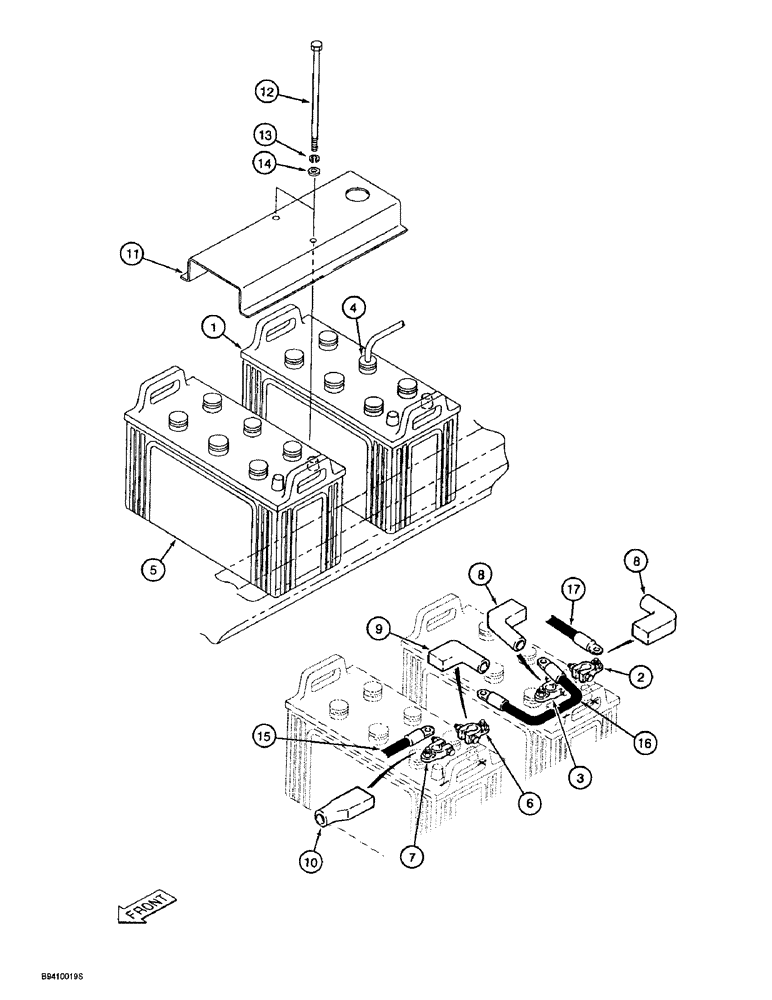

Схема запчастей Case 9030B - (4-20) - BATTERIES AND MOUNTING (04) - ELECTRICAL SYSTEMS
2
8
1
14
15
6
16
7
9
8
4
17
12
13
10
11
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

159938A1

DRY BATTERY

ASSEMBLY - with low level sensor, 12 volt, Includes: Ref. 1 - 7

1шт.

159939A1

DRY BATTERY

ASSEMBLY - without low level sensor, 12 volt, Includes: Ref. 1 - 3

1шт.

1

151893A1

BATTERY, WET

BATTERY - without low level sensor, 12 volt

1шт.

2

158403A1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

3

150455A1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

4

150099A1

SENSOR

- low electrolyte

1шт.

159939A1

DRY BATTERY

ASSEMBLY - without low level sensor, 12 volt, Includes: Ref. 5 - 7

1шт.

5

151893A1

BATTERY, WET

BATTERY - without low level sensor, 12 volt

1шт.

6

158403A1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

7

150455A1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

8

150360A1

CAP

COVER - terminal

2шт.

9

150364A1

CAP

COVER - terminal

1шт.

10

150366A1

CAP

COVER - terminal

1шт.

11

161011A1

SUPPORT

HOLDER - battery

1шт.

12

152821A1

BOLT,Spcl, Hex, M10 x 270mm

BOLT - hex, special

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

14

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

2шт.

15

159915A1

ELECTRIC CABLE

CABLE - battery, ground

1шт.

16

159914A1

CABLE ASSY.

CABLE -, Serial Range: battery-battery

1шт.

17

159916A1

CABLE ASSY.

CABLE - battery, special, Serial Range: battery-relay

1шт.
