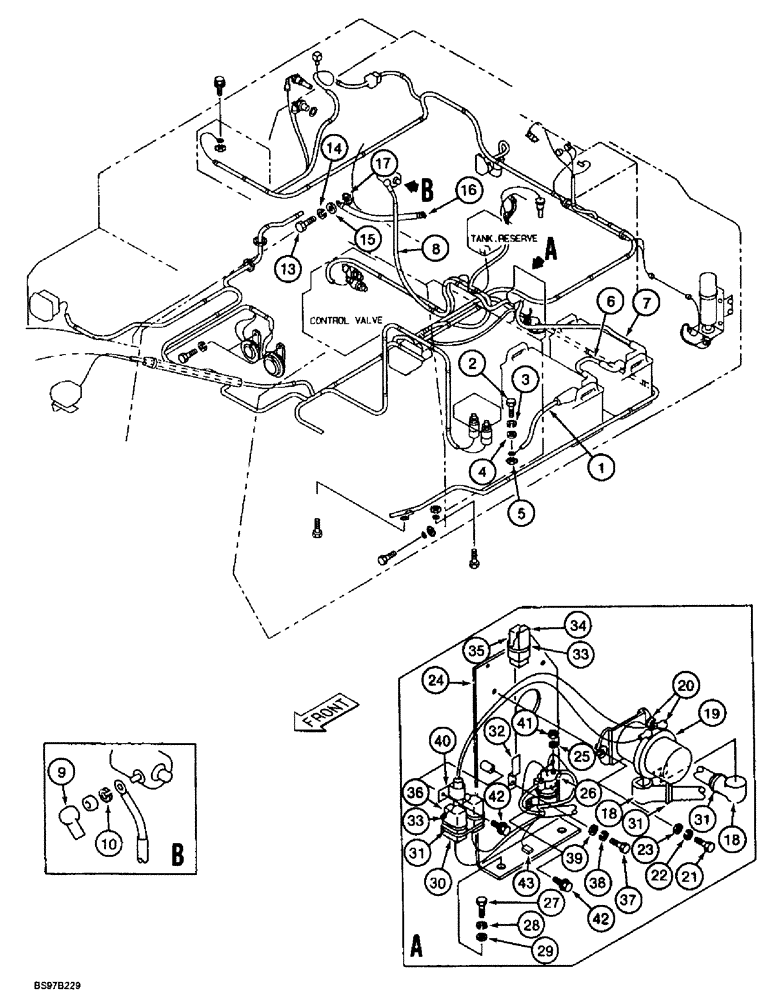

Запчасти Case 9030B (4-16) - BATTERY CABLES, ENGINE GROUND CABLE AND BATTERY RELAY, P.I.N. DAC03#2001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

159915A1

ELECTRIC CABLE

CABLE - battery, ground

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9, Battery cables

1шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Battery cables M8

1шт.

5

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, , Battery Cables Ext Tooth, M8

1шт.

6

159914A1

CABLE ASSY.

CABLE -, Serial Range: battery-battery

1шт.

7

165479A1

CABLE ASSY.

CABLE - battery, special, Serial Range: battery-relay

1шт.

8

159917A1

CABLE ASSY.

CABLE - battery, Serial Range: relay-starter

1шт.

9

159185A1

CAP

- terminal, battery cables

1шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Battery cables M8

1шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, Engine ground cable

1шт.

14

892-11010

LOCK WASHER,M10

Engine ground cable M10

1шт.

16

159918A1

CABLE ASSY.

CABLE - ground, engine

1шт.

17

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, , Engine ground cable Ext Tooth, M10

1шт.

18

162212A1

TERMINAL CONNECTOR

- terminal, battery relay

2шт.

19

159897A1

RELAY

- battery

1шт.

20

159173A1

CAP

- terminal, battery relay

2шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Battery relay M8

2шт.

24

165481A1

BRACKET

- relay mounting, battery

1шт.

25

892-11006

LOCK WASHER,M6

WASHER, LOCK, , Battery Relay M6

2шт.

26

159898A1

RELAY

- starter, battery

1шт.

27

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, class 10.9, Battery relay

2шт.

28

892-11012

LOCK WASHER,M12

WASHER, LOCK, , Battery Relay M12

1шт.

21

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

Full Thd, Battery relay Hex, M8 x 30, 10.9

2шт.

29

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Battery Relay M13.5 x 24.5 x 3, HT

1шт.

30

165407A1

COVER

- wire, battery relay

2шт.

31

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long, battery relay

1шт.

32

158963A1

CLIP

- wire, battery relay

1шт.

33

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long, battery relay

1шт.

34

159904A1

COVER

- wire, battery relay

1шт.

35

159902A1

FUSE

65A fuse - starter

1шт.

36

159903A1

FUSE

- 25 amps, relay, battery

2шт.

37

627-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 12 mm, class 10.9, Battery relay

1шт.

38

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, , Battery relay M8

1шт.

40

153039A1

CLAMP

- P-type, 12 mm ID, battery relay

1шт.

41

829-1406

NUT,Hex, M6 x 1, Cl 10.9

Battery relay M6, Cl 10

2шт.

42

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special, battery relay

1шт.

43

231959A1

DIODE

- electrical, battery relay

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Battery cables

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Battery relay

2шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, Battery relay

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm, Engine ground cable

1шт.
