(4-10) - MAIN ELECTRICAL SYSTEM CLAMPING

Запчасти Case 9030B (4-10) - MAIN ELECTRICAL SYSTEM CLAMPING (04) - ELECTRICAL SYSTEMS

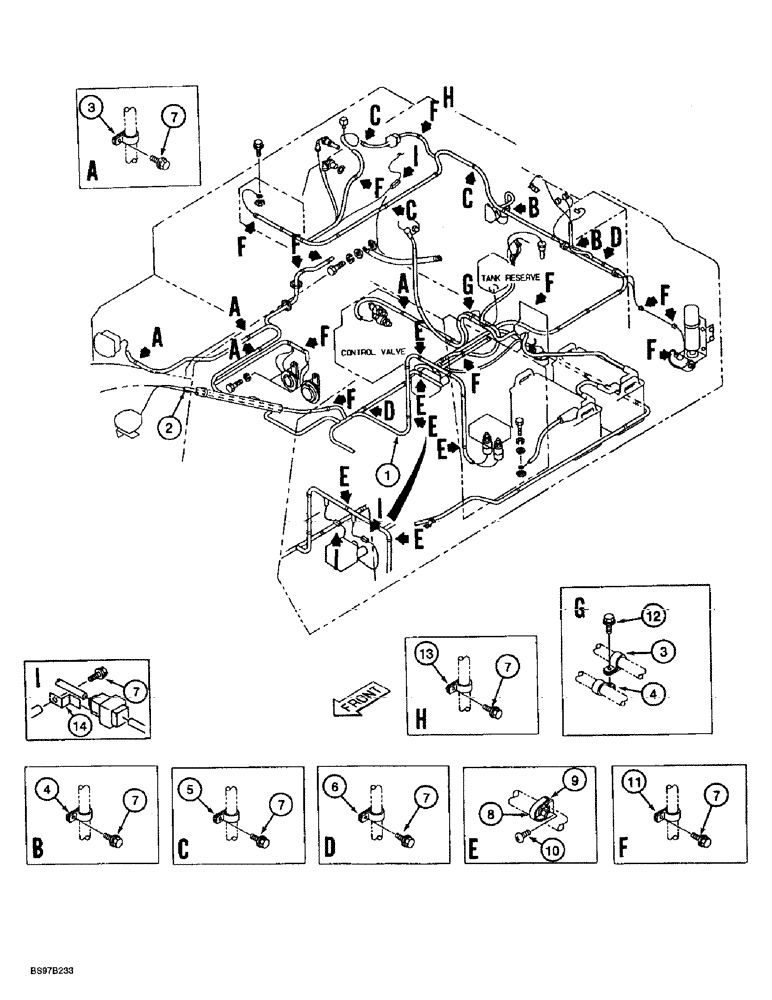

Схема запчастей Case 9030B - (4-10) - MAIN ELECTRICAL SYSTEM CLAMPING (04) - ELECTRICAL SYSTEMS
7
7
7
10
11
7
12
2
8
13
9
4
7
6
7
3
1
14
3
4
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160855A1

HARNESS

- main wiring, see Figure 4-06 for connections, Serial Range: -DAC03#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

1

164706A1

HARNESS

- main wiring, see Figure 4-08 for connections, Start Serial: DAC03#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

2

159913A1

HARNESS

- wiring, working lamp, see Figure 4-06 and Figure 4-08 for connections

1шт.

3

157806A1

COLLAR

CLAMP - P-type

1шт.

4

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

5

159024A1

COLLAR

CLAMP - P-type

1шт.

6

157808A1

COLLAR

CLAMP - P-type

1шт.

7

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

8

150496A1

MOUNTING CLIP

STRAP - tie, 250 mm long

1шт.

9

150860A1

COLLAR

BRACKET - support

1шт.

10

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 8 mm

1шт.

11

153039A1

CLAMP

- P-type, 12 mm ID

1шт.

12

159906A1

BOLT,Sems, Hex, M6 x 20mm, Spcl

BOLT - special

1шт.

13

156462A1

COLLAR

CLAMP - P-type, Start Serial: DAC03#2001

1шт.

See Figure 1-2 for explanation of model variations.

1шт.

14

165405A1

CLIP

- wire, Start Serial: DAC03#2001

3шт.

See Figure 1-2 for explanation of model variations.

1шт.
