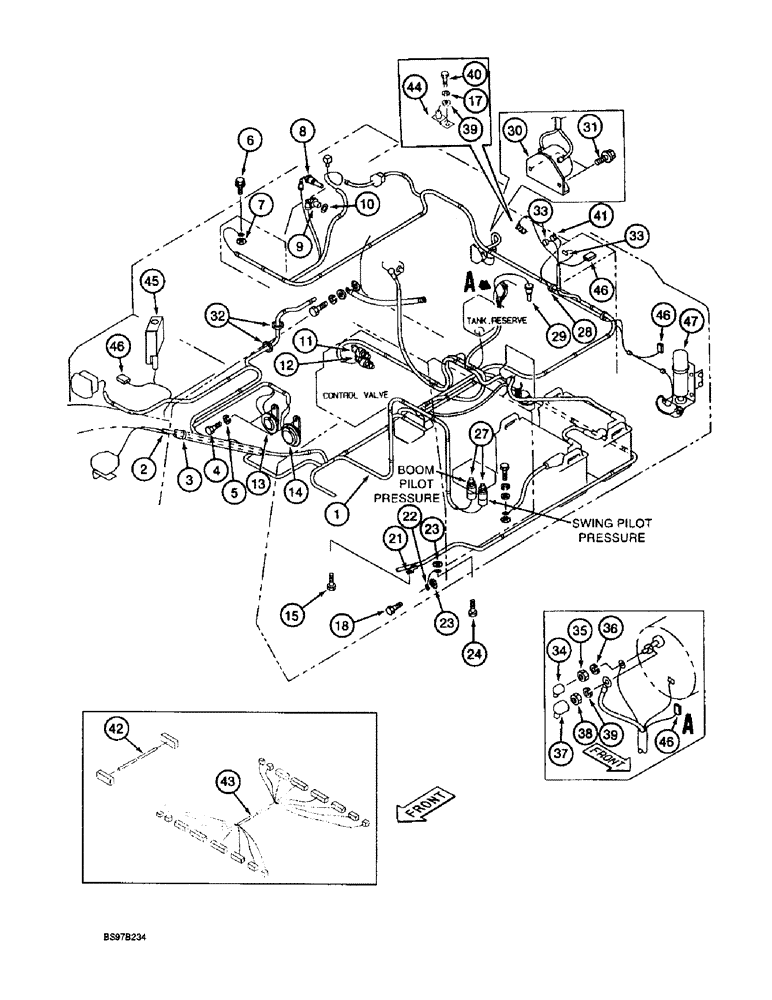

Запчасти Case 9030B (4-08) - MAIN WIRING HARNESS AND CONNECTIONS, P.I.N. DAC03#2001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

164706A1

HARNESS

- main wiring, Serial Range: -DAC0302616

1шт.

1

165801A1

HARNESS

- main wiring - Refer to SB, NEX SB 001 01, Start Serial: DAC0302617

1шт.

2

159913A1

HARNESS

- wiring, working lamp

1шт.

3

150071A1

MOUNTING CLIP

STRAP - tie, 365 mm long

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 8-1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

1шт.

8

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #29 159147A1 is really used as the engine coolant temperature sensor. Ref. #29 screws into Ref. #10 (153493A1) reducer bushing shown on Figure 2-02.

1шт.

9

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature

1шт.

10

159901A1

SEALING WASHER

WASHER - sealing

1шт.

11

159899A1

PRESSURE SWITCH

SWITCH - pressure, upper pilot pressure

1шт.

12

159900A1

PRESSURE SWITCH

SWITCH - pressure, travel pilot pressure

1шт.

13

159949A1

HORN

- electric, small

1шт.

FREQUENCY 350HZ, DECIBEL 105-115db Per e-mail from Sumitomo 10/24/01 BW CAM

1шт.

14

159948A1

HORN

- electric, large

1шт.

FREQUENCY 310HZ, DECIBEL 108-120db

1шт.

15

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

BOLT - hex, special

1шт.

18

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special

1шт.

21

157807A1

COLLAR

CLAMP - P-type, 20 mm ID

1шт.

22

159912A1

CABLE ASSY.

STRAP - ground

1шт.

23

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

24

164796A1

BOLT,High Strength, Hex, M6 x 10mm, W/ LW

BOLT - special

1шт.

25

116992A2

TUBE,0.125 mm OD

- nylon, 2693 mm (106 inch) long, cut from L60539X bulk tube, not shown

1шт.

26

164707A1

HARNESS

- wire, not shown

1шт.

27

159599A1

PRESSURE SWITCH

SWITCH - pressure

2шт.

28

150067A1

MOUNTING CLIP

STRAP - tie, 150 mm long

1шт.

29

159147A1

SENSOR

- temperature, hydraulic oil

1шт.

Ref. #8 159147A1 is the hyd. oil temperature sensor. Ref. #29 159147A1 is really used as the engine coolant temperature sensor. It screws into ref. #10 reducer bushing shown on Figure 2-02.

1шт.

30

162218A1

ALARM

- travel, works when moving backwards or forward

1шт.

31

159905A1

BOLT,Sems, Hex, M6 x 25mm, Spcl

BOLT - hex, special

1шт.

32

150520A1

GROMMET

- rubber

2шт.

33

159173A1

CAP

- terminal

1шт.

34

159173A1

CAP

- terminal

1шт.

35

829-1405

NUT,M5, Cl 10

- hex, 5 mm - 0.8, class 10

1шт.

36

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

37

159184A1

CAP

- terminal

1шт.

38

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

39

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

40

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9

1шт.

41

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, for related parts see Figure 4-36

1шт.

42

163028A1

HARNESS

- wire, for Timber King models with raised cab

1шт.

43

163039A1

HARNESS

- wire, for Timber King models with raised cab

1шт.

44

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, cold start, see Ref. 10 on Figure 4-36

1шт.

45

161374A1

RESERVOIR ASSY.

RESERVOIR - washer fluid, windshield

1шт.

46

231959A1

DIODE

- electrical

4шт.

47

L126094

VALVE

ASSEMBLY - solenoid, ether injection, see Figure 4-36, Ref. 1

1шт.
