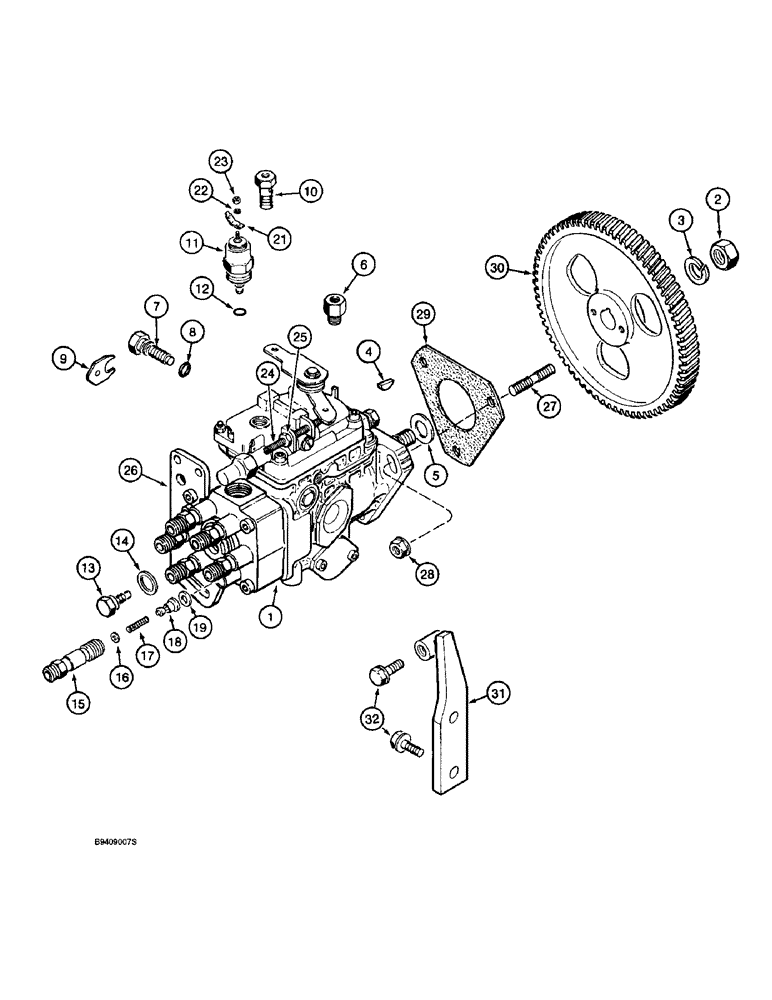

Запчасти Case 9030B (3-20) - FUEL INJECTION PUMP AND DRIVE, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001 (03) - FUEL SYSTEM

1

J929658

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, replaces J921501 pump, Includes: Ref. 1 - 26

1шт.

1

JR929658

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR921501 remanufactured pump assembly

1шт.

1

JC929658

CORE-INJECTION PUMP

Return Part Number

1шт.

JC917503

PUMP, FUEL INJECTION

PUMP, INJECTION RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

2

J903738

NUT

NUT - hex, special, 14 mm-2.0

1шт.

3

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

WASHER - lock, 14 mm

1шт.

4

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, (No. 6) M4 x 6.5 x 15.72

1шт.

5

J920393

SEAL

SEAL - shaft

1шт.

6

J903382

ADAPTER,M12 x 1.5 x M14 x 1.5

ADAPTER - tube

1шт.

7

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

8

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

9

J904786

PLATE

PLATE - timing lock

1шт.

10

J905465

BANJO BOLT

BOLT - banjo, overflow

1шт.

11

A77797

SOLENOID

SOLENOID - shut down, 24 volt

1шт.

12

J903577

SEAL

SEAL - solenoid

1шт.

13

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

14

3053133R1

SEALING RING,M8 x 11.5 x 1

RING - gasket, vent screw

1шт.

15

J910794

FITTING

FITTING - bypass delivery valve

6шт.

16

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

WASHER - special

6шт.

17

J910796

SPRING

SPRING - delivery valve

6шт.

18

J910795

BY-PASS VALVE

VALVE - bypass delivery

6шт.

19

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

21

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

TERMINAL - Male

1шт.

22

J907481

WASHER

WASHER - lock, special

1шт.

23

J907480

NUT

NUT - special

1шт.

24

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

25

J904783

NUT

NUT - low idle screw

1шт.

26

J905697

SUPPORT

BRACKET - pump support

1шт.

27

J902501

STUD

STUD - pump mounting, 8-1.25 x 48 mm

3шт.

28

J900589

NUT

NUT - hex flange, special, 8 mm

3шт.

29

J931607

GASKET

GASKET - pump mounting, replaces J914389 gasket

1шт.

30

J931387

GEAR

GEAR - pump drive, replaces J920594 gear

1шт.

31

J905313

LEVER

BRACE - fuel pump

1шт.

32

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm, also used for ref 26 bracket to attach to block, qty 3

3шт.
