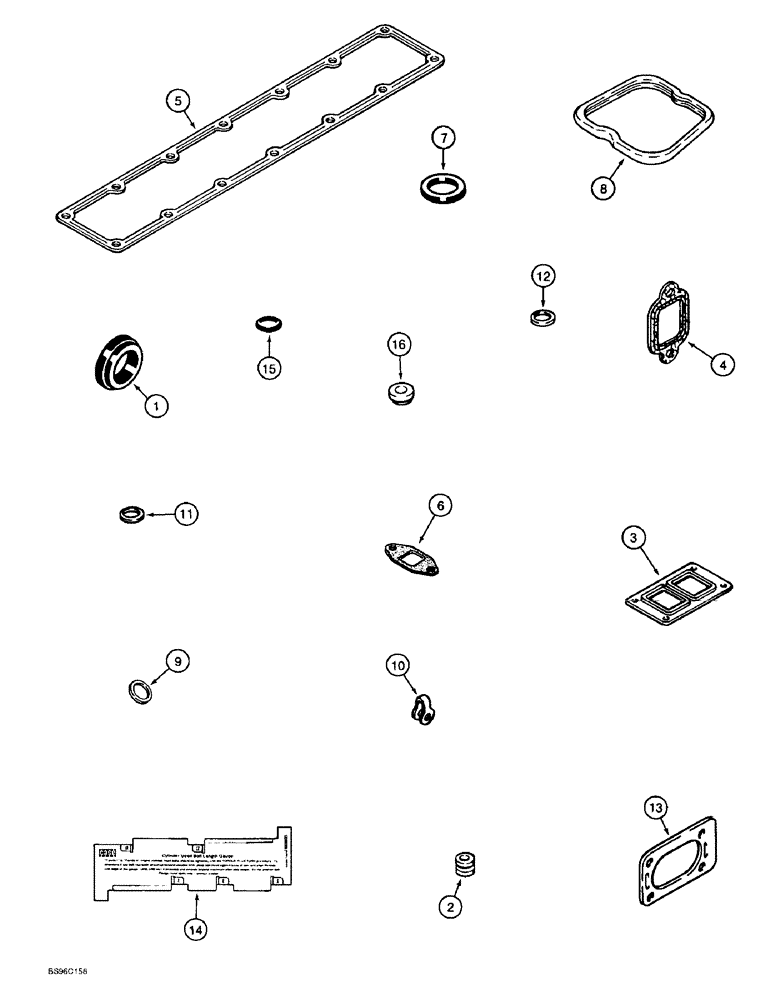

Запчасти Case 9030B (2-80) - GASKET KIT, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001, VALVE GRIND (02) - ENGINE

A77859

GASKET KIT

KIT - gasket, valve grind, replaces A77793 kit, Includes: Ref. 1 - 16

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, Ref. 2, on Figure 2-44.

1шт.

1

J923331

GASKET

- thermostat housing

1шт.

2

J901097

SEAL

- valve

12шт.

3

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

4

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

5

J931347

GASKET

- mounting, intake manifold cover, replaces J914029 gasket

1шт.

6

J931350

GASKET

- turbo oil drain tube, replaces J914388 and J928919 gasket

1шт.

7

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, not used in this application

1шт.

8

J930906

GASKET

SEAL - rocker arm cover, replaces J902666 and J929795 seal

6шт.

9

J900808

SEAL

- injector nozzle, 9 mm injector tip

6шт.

10

J903380

SEAL

- connector, return manifold

6шт.

11

J906659

SEAL

- injector nozzle, 7 mm injector tip

6шт.

12

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

6шт.

13

J914856

GASKET,1.02mm Thk

- air crossover connection

1шт.

14

J823921

GAUGE

- cylinder head, bolt length

1шт.

15

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, rocker arm

6шт.

16

J928406

ISOLATOR

- noise, rocker arm cover

6шт.
