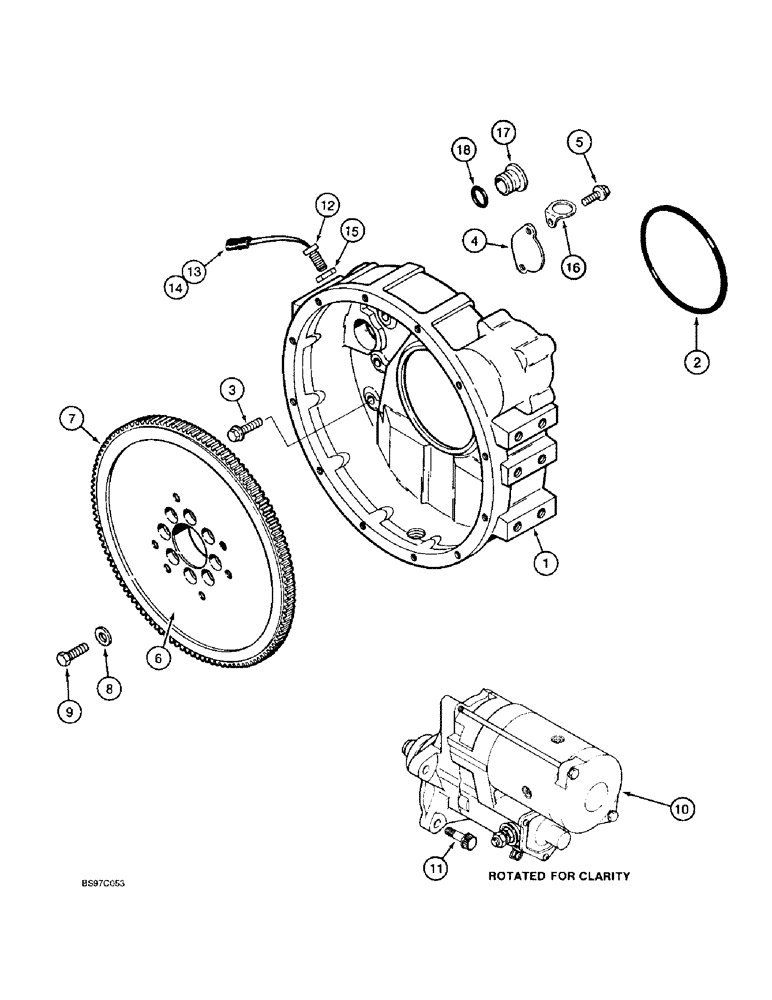

Запчасти Case 9030B (2-72) - FLYWHEEL AND HOUSING, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE

1

J931627

HOUSING

HOUSING - flywheel, replaces J903282 housing

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J925234

PLATE

PLATE - cover, replaces J908095 cover

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self-tapping, hex washer head, special, 8-1.25 x 15 mm, replaces J902735 bolt

2шт.

6

J907466

FLYWHEEL

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 7

1шт.

For the threaded pins that connect the flywheel to the hydraulic pump coupling, see Figure 8-004.

1шт.

7

J905427

GEAR

GEAR - ring, flywheel

1шт.

8

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

WASHER - flat, special

8шт.

9

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

10

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY - engine, see Figure 4-04

1шт.

10

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

10

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

10

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

11

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

BOLT - special, 12 point

3шт.

A187584

SENSOR

SENDER ASSEMBLY - engine rpm, located at top of flywheel housing, Includes: Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - threaded, with cables

1шт.

13

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - engine rpm sender, female

1шт.

14

225127C1

PLUG

SEAL - sender cables

2шт.

15

425-1512

JAM NUT,Jam, 3/4"-10, G5

NUT - hex, jam, 3/4 inch NF

1шт.

16

J909670

CLIP

CLIP - retaining, retains breather hose

1шт.

17

J910248

PLUG

PLUG - flywheel housing

1шт.

18

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

O-RING, -212, 70 Duro, .859" ID x .139" Thk

1шт.
