Артикул
Название
Примечание
Количество
JR918324
CRANKCASE

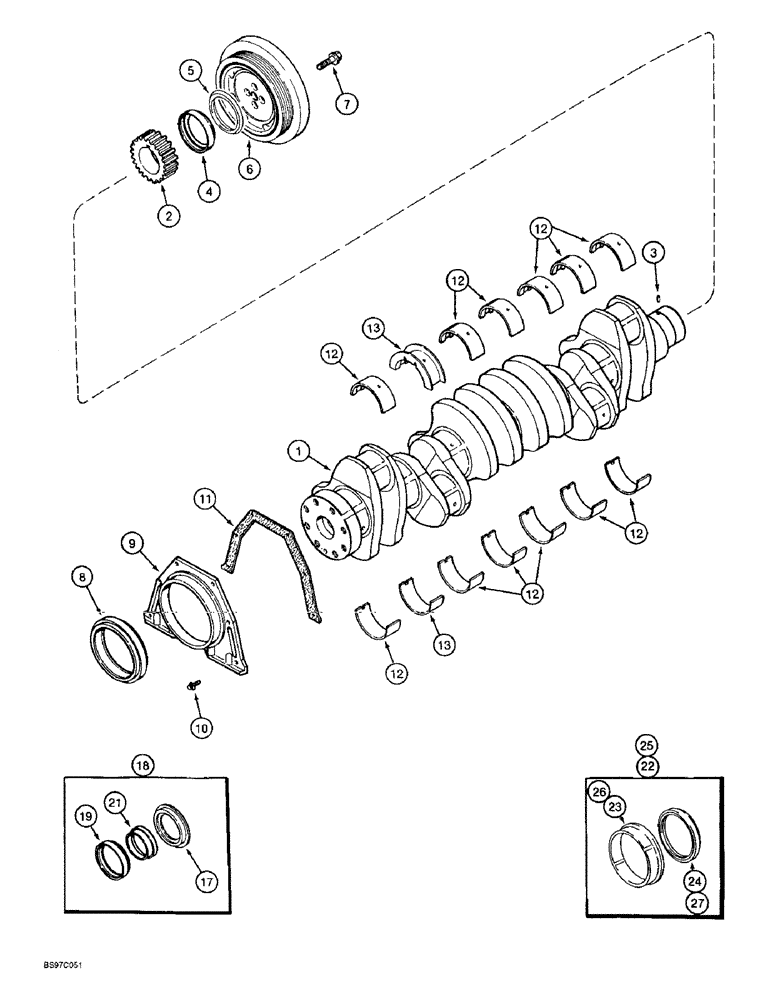

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, for service order J918324 crankshaft assembly, Ref. 1
1шт.
JC908032
CORE-CRANKSHAFT
RETURN NUMBER - use this part number to return crankshaft core for credit when using a remanufactured assembly
1шт.
1
J918324
CRANKSHAFT
ASSEMBLY - engine, new, Includes: Ref. 2 and 3
1шт.
2
J929027
PINION
GEAR - crankshaft, Replaces J919681 gear
1шт.
4
NSS
NOT SOLD SEPARAT
SEAL - oil, crankshaft front, order Ref. 14, kit
1шт.
5
J926430
SHAFT SEAL
SEAL - dust, crankshaft, service repair only
1шт.
6
J914454
DAMPER
PULLEY - crankshaft vibration damper
1шт.
7
J903857
BOLT,Hex, M12 x 1.25 x 36mm
- hex flange, special, 12-1.25 x 36 mm
4шт.
8
NSS
NOT SOLD SEPARAT
SEAL - oil, crankshaft rear, order Ref. 22, kit
1шт.
9
J921043
REAR COVER
RETAINER - seal, rear cover
1шт.
10
845-6015
BOLT,Hvy Hex, M6 x 15mm, Cl 8.8
6шт.
11
J928493
GASKET
- rear cover retainer, replaces J914386 gasket
1шт.
12
A77405
CRANKSHAFT BEARING
BEARING - main, upper and lower set, standard
6шт.
12
A77472
BEARING SET
BEARING - main, upper and lower set, 0.25 mm undersize
6шт.
12
A77474
BEARING SET
BEARING - main, upper and lower set, 0.50 mm undersize
6шт.
12
A77476
BEARING SET
BEARING - main, upper and lower set, 0.75 mm undersize
6шт.
12
A77478
BEARING SET
BEARING - main, upper and lower set, 1.00 mm undersize
6шт.
13
A77406
CRANKSHAFT BEARING
BEARING - main thrust, upper and lower set, standard
1шт.
13
A77473
THRUST BEARING
BEARING - main thrust, upper and lower set, 0.25 mm undersize
1шт.
13
A77475
THRUST BEARING
BEARING - main thrust, upper and lower set, 0.50 mm undersize
1шт.
13
A77477
THRUST BEARING
BEARING - main thrust, upper and lower set, 0.75 mm undersize
1шт.
13
A77479
THRUST BEARING
BEARING - main thrust, upper and lower set, 1.00 mm undersize
1шт.
13
A77841
THRUST BEARING
BEARING - main thrust, upper and lower set, 0.50 mm undersize, 0.50 mm oversize thrust
1шт.
13
A77840
THRUST BEARING
BEARING - main thrust, upper and lower set, 1.00 mm undersize, 1.00 mm oversize thrust
1шт.
14
J904353
GASKET KIT
KIT - oil seal, crankshaft front, Includes: Ref. 15 - 17
1шт.
15
NSS
NOT SOLD SEPARAT
SEAL - oil, front
1шт.
16
NSS
NOT SOLD SEPARAT
TOOL - installation
1шт.
17
NSS
NOT SOLD SEPARAT
TOOL - installation
1шт.
18
J802820
PACKAGE, REPAIR
KIT - oil seal, crankshaft front, Includes: Ref. 19 - 21
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL - oil, front
1шт.
20
NSS
NOT SOLD SEPARAT
SLEEVE - wear, not shown
1шт.
21
NSS
NOT SOLD SEPARAT
TOOL - installation
1шт.
22
A77809
GASKET KIT
KIT - oil seal, crankshaft rear, Includes: Ref. 23 and 24
1шт.
23
NSS
NOT SOLD SEPARAT
SLEEVE - wear
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - oil, rear
1шт.
25
A77810
SERVICE KIT
KIT - oil seal, crankshaft rear, Includes: Ref. 26 and 27
1шт.
26
NSS
NOT SOLD SEPARAT
SLEEVE - wear
1шт.
27
NSS
NOT SOLD SEPARAT
SEAL - oil, rear
1шт.
Выбрано товаров: 39
