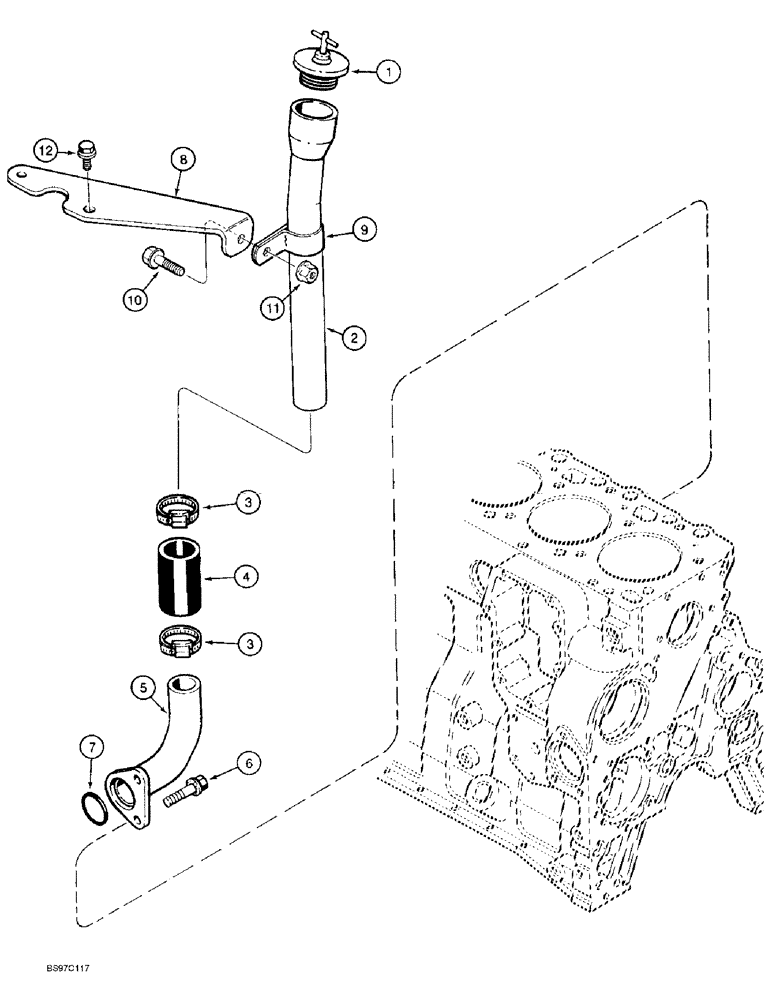

Запчасти Case 9030B (2-66) - ENGINE OIL FILL ASSEMBLY, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 AND AFTER (02) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J933144

TUBE,38.1 - 52.39 mm OD x 350, 30 mm L

- oil fill, upper

1шт.

3

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adj, 1-5/16 - 2-1/4 inch dia

2шт.

4

J912686

HOSE,38.1mm ID x 84mm L

Oil Fill Tube 1.50 mm ID x 84.00 mm

1шт.

5

J933117

TUBE,190.5, 86.1 mm L

- oil fill, lower

1шт.

6

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12-1.75 x 25 mm, class 10.9

2шт.

7

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

8

J933597

BRACKET

- support, upper oil fill tube, use existing hardware at fuel filter head to install support bracket

1шт.

9

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

P-type 1 1/2", Insul, 1/2" Bolt

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

2шт.
