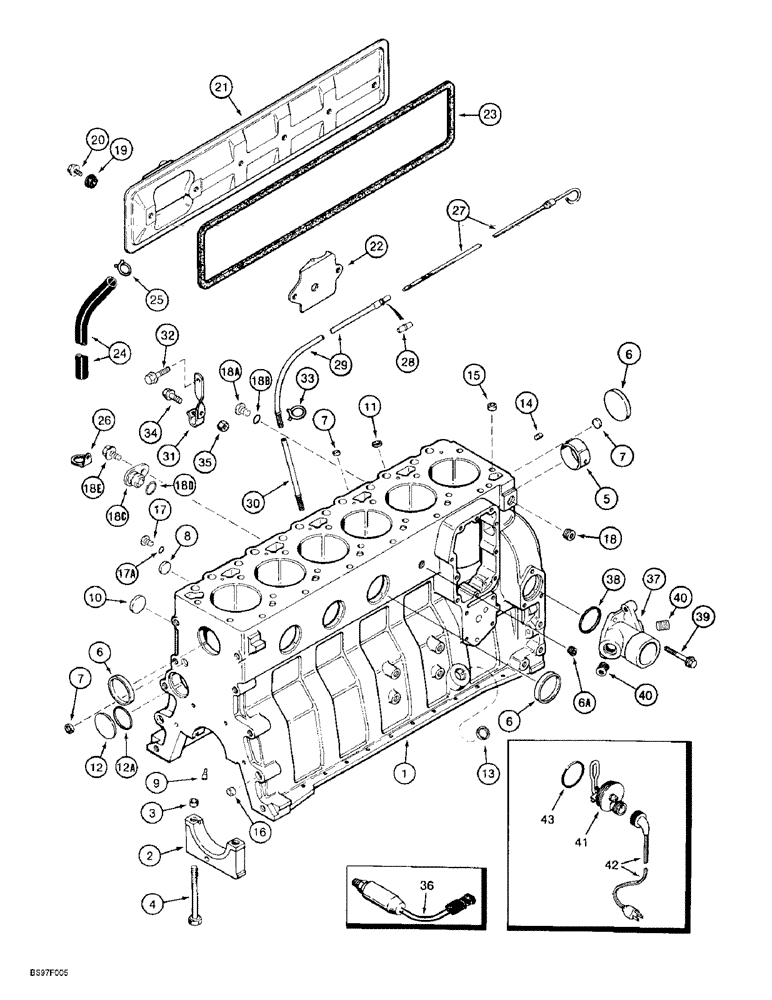

Запчасти Case 9030B (2-63A) - CYLINDER BLOCK, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 & AFTER, ENG S/N 45534441 & AFT (02) - ENGINE

197901A2

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 6T-590 Emissions Certified, complete, for service order 246148A2 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

246148A2

BASIC ENGINE

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner; See Note

1шт.

246148A2R

REMAN-BASIC ENGINE

Engine Assembly basic, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly; See Note

1шт.

246148A1C

CORE-ENGINE

Return Part Number, use this part number to return core for credit when using a remanufactured assembly

1шт.

JR933645

REMAN-SHORT ENGINE

Block Assembly, short, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

AC77761

CORE-ENGINE

Return Part Number, use this part number to return short block core for credit when using a remanufactured assembly

1шт.

J933645

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

1

J933610

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped engine, order J933220 block hardware kit shown below, Includes: Ref. 2 - 8

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-54, Ref. 6

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

6a

A77505

PLUG

PLUG - hex socket, 3/4 inch PT

1шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

4шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, Includes: Ref. 9 - 18D

1шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

13

J920706

PLUG

PLUG - expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

PLUG - hex socket, 10 mm (2) not used in this application, Ref. 36, 1546461C2 engine oil pressure switch is installed in one port, injection pump line installed in other port, Includes: Ref. 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

O-RING - 8.1 ID x 1.6 mm wide

1шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

18a

J678921

PLUG

PLUG - hex socket, 14 mm, Includes: Ref. 18B

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

O-RING, , Sealing 11.3MM ID x 2.2 Thk

1шт.

18c

J932296

PLUG

PLUG - timing sensor hole, Includes: Ref. 18D

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

O-RING - sealing

1шт.

18e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J927913

COVER

COVER - tappet

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J928832

GASKET

GASKET - tappet cover

1шт.

24

121904A1

HOSE

HOSE - 1030 mm (40-1/2 inch) long, engine breather

1шт.

25

157916A1

CLAMP

CLAMP - special, hose

1шт.

26

J923610

CLIP

CLIP - breather hose, retaining, breather hose

1шт.

27

J907680

DIPSTICK

DIPSTICK - oil level

1шт.

28

J905802

FITTING,9.53 mm OD x 39 mm L

CAP - oil dipstick tube

1шт.

29

J279239

TUBE

TUBE - oil dipstick, assembled on Ref. 30

1шт.

30

A77645

TUBE

TUBE - oil dipstick, at block

1шт.

31

J926051

BRACE

BRACE - dipstick tube, installed on the intake manifold cover at the fifth inside bolt

1шт.

32

845-10020

BOLT - heavy hex flange, 10-1.50 x 20 mm, retains dipstick tube brace to front boss on top of the exhaust manifold

1шт.

33

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, , Retains dipstick tube to dipstick tube brace #8, 1/2", Spring

1шт.

34

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

35

825-1408

NUT,M8, Cl 8

Nut, , Retains dipstick tube to dipstick tube brace M8, Cl 8

1шт.

36

1546461C2

SWITCH

SWITCH - oil pressure, 10 psi, installed in the No. 1 oil port on the injection pump side of the engine

1шт.

37

J916625

CONNECTING BLOCK

CONNECTION - water inlet

1шт.

38

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

39

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

BOLT - heavy hex flange, 10-1.5 x 25 mm

3шт.

40

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

196803A1

KIT

KIT - engine block heater, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, block, 120 volt

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

43

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
