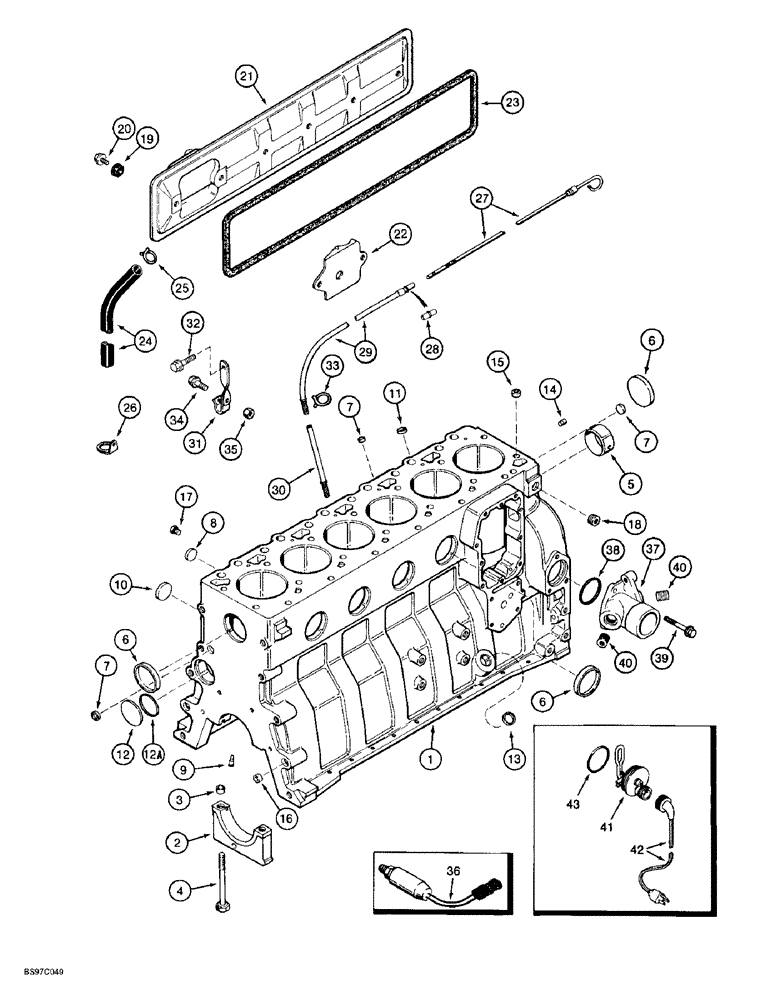

Запчасти Case 9030B (2-60) - CYLINDER BLOCK, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 & AFT,PRIOR TO ENG S/N 45534441 (02) - ENGINE

197901A1

ENGINE ASSEMBLY - 6T-590 Emissions Certified, complete, for service order 246148A1 basic engine below

1шт.

The engine part number is stamped on a metal tag, which is mounted on the front gear cover.

1шт.

246148A1R

ENGINE, EXCHANGE

ENGINE ASSEMBLY - basic, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

246148A1C

CORE-ENGINE

RETURN NUMBER - use this part number to return core for credit when using a remanufactured assembly

1шт.

246148A1

BASIC ENGINE

ENGINE ASSEMBLY, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel & housing, oil fill & dipstick, fuel injection pump, injectors & lines, front crank pulley, turbocharger & and belt tensioner

1шт.

AR77867

ENGINE

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, no longer available, order JR933645 remanufactured short block assembly shown on Figure 2-63A

1шт.

AC77867

ENGINE ASSEMBLY

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly

1шт.

1

A77867

MOTOR

BLOCK ASSEMBLY - short, new, Includes: Ref. 1 - 18

1шт.

Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order J933645 short block assembly on Figure 2-63A and (2) 250838A2 connectors. P/N 250838A2 connector is used for adapting the oil pressure switch to the new cylinder block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

- main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-54, Ref. 6

1шт.

6

A77782

PLUG

- expansion, 58 mm OD

6шт.

7

J900956

PLUG

- expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

- expansion, 32 mm OD

1шт.

11

J900955

PLUG

- expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

- expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

- sealing, 57 mm ID

1шт.

13

J920706

PLUG

- expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT (1) not used in this application, Ref. 36, 1546461C2 engine oil pressure switch is installed in this port

2шт.

18

A77429

PLUG

- hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

- cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J927913

COVER

- tappet

1шт.

22

J907586

BAFFLE

- tappet cover

1шт.

23

J928832

GASKET

- tappet cover

1шт.

24

121904A1

HOSE

- 1030 mm (40-1/2 inch) long, engine breather

1шт.

25

157916A1

CLAMP

- special, hose

1шт.

26

J923610

CLIP

- breather hose, retaining, breather hose

1шт.

27

J907680

DIPSTICK

- oil level

1шт.

28

J905802

FITTING,9.53 mm OD x 39 mm L

CAP - oil dipstick tube

1шт.

29

J279239

TUBE

- oil dipstick, assembled on Ref. 30

1шт.

30

A77645

TUBE

- oil dipstick, at block

1шт.

31

J926051

BRACE

- dipstick tube, installed on the intake manifold cover at the fifth inside bolt

1шт.

32

845-10020

BOLT - heavy hex flange, 10-1.50 x 20 mm, retains dipstick tube brace to front boss on top of the exhaust manifold

1шт.

33

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, , Retains dipstick tube to dipstick tube brace #8, 1/2", Spring

1шт.

34

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

1шт.

35

825-1408

NUT,M8, Cl 8

Retains dipstick tube to dipstick tube brace M8, Cl 8

1шт.

36

1546461C2

SWITCH

- oil pressure, 10 psi, installed in the No. 1 oil port on the injection pump side of the engine

1шт.

37

J916625

CONNECTING BLOCK

CONNECTION - water inlet

1шт.

38

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

39

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

- heavy hex flange, 10-1.5 x 25 mm

3шт.

40

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

196803A1

KIT

- engine block heater, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, block,120 volt

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

43

J910517

O-RING

- heater sealing, engine block

1шт.
