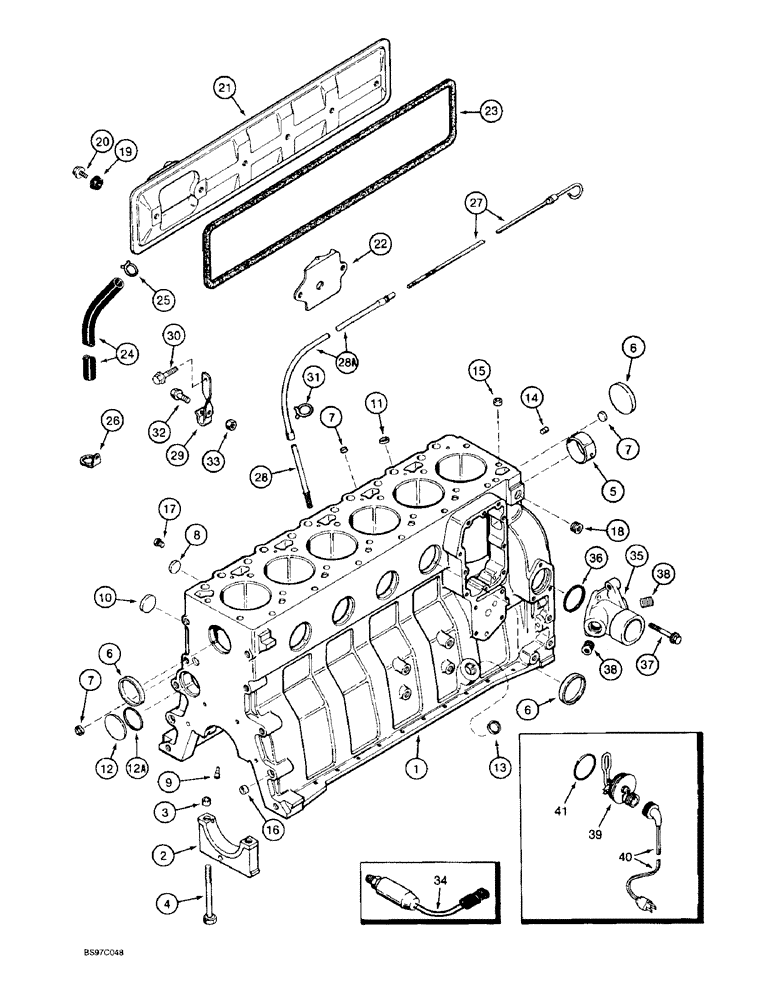

Запчасти Case 9030B (2-56) - CYLINDER BLOCK, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001, PRIOR TO ENGINE S/N 45534441 (02) - ENGINE

1989189C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, 6T-590, includes all parts except fan, air cleaner, muffler and exhaust pipe, for service order basic engine below

1шт.

1989189C1R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

1989189C1C

CORE-REPLACEMENT ENG

Return Number

1шт.

1989096C2

BASIC ENGINE

ENGINE ASSEMBLY - basic

1шт.

Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner

1шт.

1989096C3R

REMAN-BASIC ENGINE

With Three Bolt Hole Fuel Injection Pump Mounting. Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, turbocharger and belt tensioner

1шт.

1989096C3C

CORE-BASIC ENGINE

Return Number

1шт.

J933183

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, Includes: Ref. 1 - 8

1шт.

Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Replaces J920392 short block assembly, order J933220 hardware kit shown on Figure 2-63A and (1) 250838A2 connector. 250838A2 connector is used for adapting the oil pressure switch to the new cylinder block

1шт.

JR933183

REMAN-SHORT ENGINE

BLOCK ASSEMBLY - short, engine, remanufactured, For North America only, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR920392 and AR77762 short block assembly

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A. Only

1шт.

AC77761

CORE-ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly, replaces AC77762

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY stripped, engine, Includes: Ref. 2 - 8

1шт.

No longer available, order J933610 stripped block assembly, J933220 hardware kit shown on Figure 2-63A and (1) 250838A2 connector. 250838A2 connector is used for adapting the oil pressure switch to the new cylinder block

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-52, Ref. 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, Cup, 1", Stainless

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware, replaces J920399 kit, Includes: Ref. 9 - 18

1шт.

9

J930139

NOZZLE CAP

NOZZLE - piston cooling, Replaces J919002 nozzle

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING - sealing, 57 mm ID

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD, not used in this application

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT (1) not used in this application, Ref. 34, 1546461C2 engine oil pressure switch is installed in this port

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

4шт.

21

J927913

COVER

COVER - tappet, replaces J911822 cover

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J928832

GASKET

GASKET - tappet cover, replaces J907617 gasket

1шт.

24

121904A1

HOSE

HOSE - 1030 mm (40-1/2 inch) long, engine breather

1шт.

25

157916A1

CLAMP

CLAMP - special, hose

1шт.

26

J909670

CLIP

CLIP - retaining, breather hose

1шт.

27

J908313

DIPSTICK

DIPSTICK - engine oil

1шт.

28

A77645

TUBE

TUBE - oil dipstick, at block

1шт.

28a

NSS

NOT SOLD SEPARAT

TUBE - oil dipstick extension, for service order A77824 oil tube assembly

1шт.

29

J926051

BRACE

BRACE - dipstick tube, replaces J926464 brace

1шт.

30

845-10020

BOLT - heavy hex flange, 10-1.50 x 20 mm, retains dipstick tube brace to front boss on top of the exhaust manifold

1шт.

31

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, , Retains dipstick tube to dipstick tube brace #8, 1/2", Spring

1шт.

32

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

33

825-1408

NUT,M8, Cl 8

Nut, , Retains dipstick tube to dipstick tube brace M8, Cl 8

1шт.

34

1546461C2

SWITCH

SWITCH - oil pressure, 10 psi, installed in the No. 1 oil port on the injection pump side of the engine, Replaces 1546461C1 switch

1шт.

35

J916625

CONNECTING BLOCK

CONNECTION - water inlet

1шт.

36

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

37

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10-1.5 x 75 mm, class 10.9

3шт.

38

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

196803A1

KIT

KIT - engine block heater, replaces A77634 kit, Includes: Ref. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, block

1шт.

40

196466A1

ELECTRIC CABLE

CABLE - engine block heater, Replaces J905113 cable

1шт.

41

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
