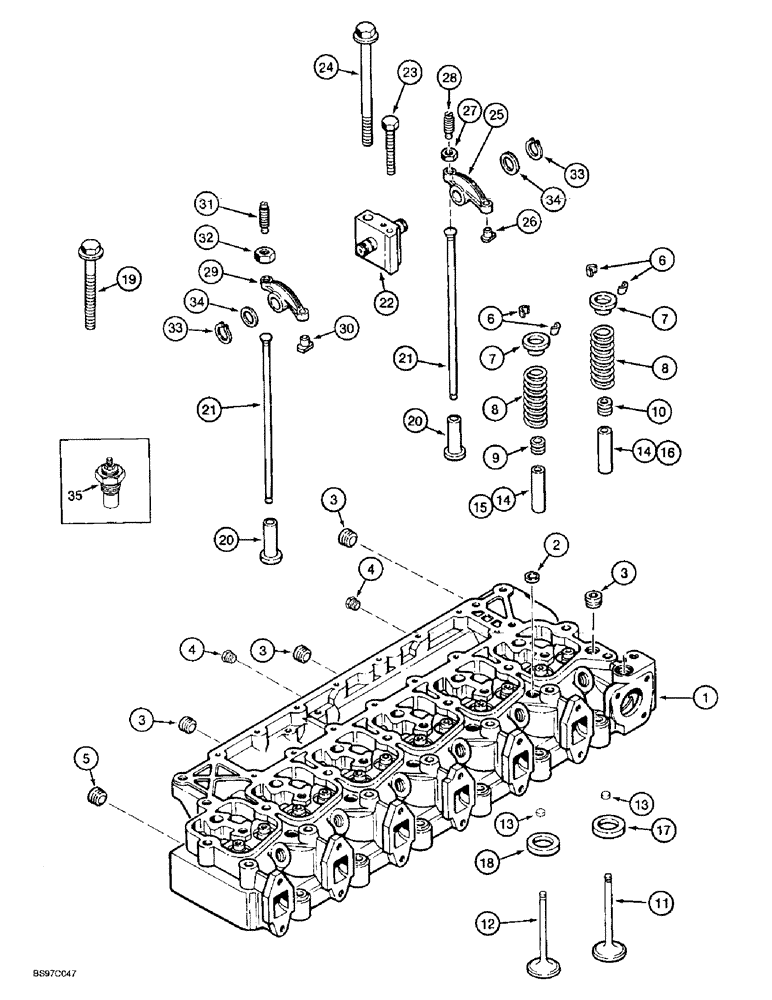

Запчасти Case 9030B (2-50) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 AND AFTER (02) - ENGINE

JR927301

REMAN-CYLINDER HEAD

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC927301

CORE-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J927301

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, Includes: Ref. 1 - 12

1шт.

1

J930652

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

PLUG, DRAIN, , One removed to install temperature sending unit Sq Soc, 1/2"-14, NTPF

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J926700

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve

6шт.

10

J921640

SEAL

- valve, intake

6шт.

11

J920867

VALVE

- intake

6шт.

12

J920868

VALVE

- exhaust

6шт.

13

J280911

WEAR PAD

PAD - wear, valve stem tip, for use on intake and exhaust valves

1шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

16

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

12шт.

These parts are semi-finished valve guides.

1шт.

17

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

18

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

19

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

19

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

6шт.

20

J931623

TAPPET

- valve, push rod

12шт.

21

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

22

J922488

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

29

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

33

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

34

J900245

WASHER

- thrust, rocker arm

12шт.

35

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed in left side middle of cylinder head

1шт.

The 1983238C1 engine coolant sender is still used in the hole in the block that has 1/2" NPTF thread. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. See 9020B catalog, Figure 2-56, where Ref. 1 bubble is pointing (there are two threaded holes with an unthreaded hole between them). The reducer bushing goes into the hole to the left. The 9010B through 9045B excavators actually use two engine coolant senders to activate two different cab warning

1шт.
