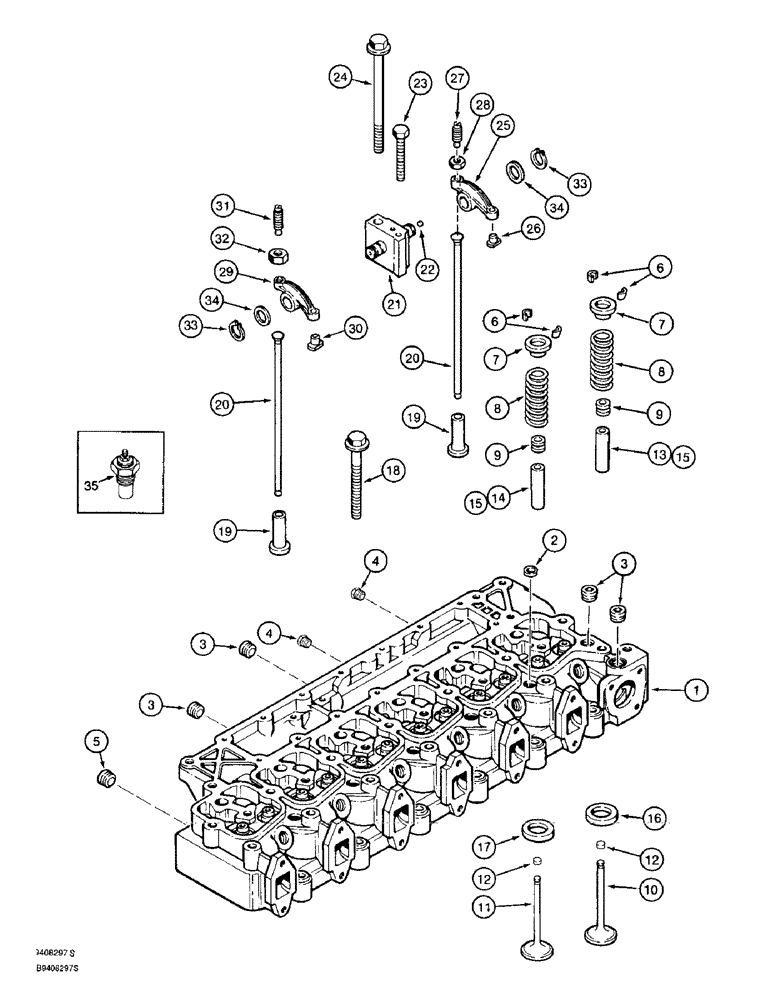

Запчасти Case 9030B (2-48) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE

JR929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, replaces JR920612 head assembly

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

J929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new, with valves, replaces J920612, Includes: Ref. 1 - 11

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT, one removed to install temperature sending unit

4шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve, replaces J900276 spring

12шт.

9

J901097

SEAL

- valve

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

12

J280911

WEAR PAD

PAD - wear, valve stem tip, for use on intake and exhaust valves

1шт.

13

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

14

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD

6шт.

These parts are semi-finished valve guides.

1шт.

15

J906206

GUIDE

- valve, intake and exhaust, service repair only, 11 mm OD

12шт.

These parts are semi-finished valve guides.

1шт.

16

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

17

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

18

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

18

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

6шт.

19

J931623

TAPPET

- valve, push rod, replaces J925031 tappet

12шт.

20

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 22

6шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

24

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long

6шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26 - 28

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

29

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 30 - 32

6шт.

30

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

31

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

32

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

33

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

34

J900245

WASHER

- thrust, rocker arm

12шт.

35

1983238C1

SENSOR,1/2" - 14

SENDER - engine coolant temperature, installed in left side middle of cylinder head

1шт.

The 1983238C1 engine coolant sender is still used in the hole in the block that has 1/2" NPTF thread. The 159147A1 engine coolant sender goes into 153493A1 reducer bushing. These have M16 x 1.5 metric thread. See 9020B catalog, Figure 2-56, where Ref. 1 bubble is pointing (there are two threaded holes with an unthreaded hole between them). The reducer bushing goes into the hole to the left. The 9010B through 9045B excavators actually use two engine coolant senders to activate two different cab warning

1шт.
