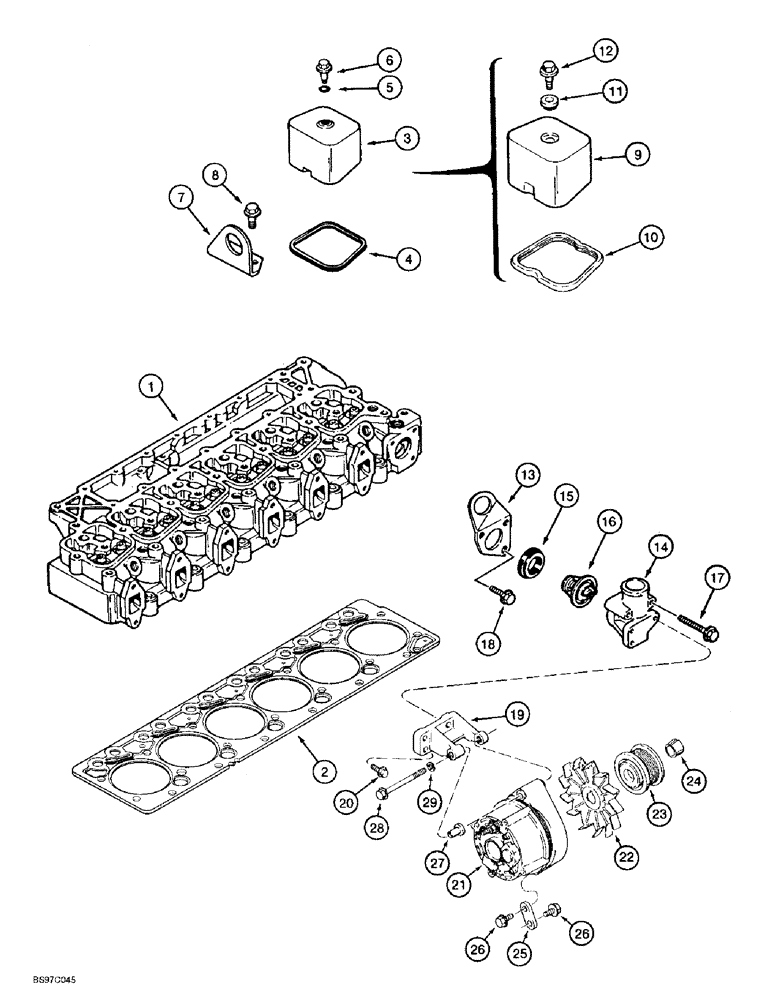

Запчасти Case 9030B (2-44) - CYLINDER HEAD COVER, 6T-590 ENGINE, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-48 for correct cylinder head and parts list

1шт.

2

J283335

GASKET,2.32mm Thk

- head, standard, replaces J921394 and J282805 gasket

1шт.

2

J283337

GASKET,2.24mm Thk

- head, 1 notch, 0.25 mm overthick, replaces J921396 and J283000 gasket

1шт.

2

J283002

GASKET

- head, 2 notches, 0.50 mm overthick, replaces J921398 gasket

1шт.

3

J902604

COVER

- rocker arm, no longer available, for service order Ref. 9, J928404 cover and Ref. 11, J928406 isolator

6шт.

4

J902666

GASKET

SEAL - rocker arm cover, no longer available, for service order Ref. 10, J930906 seal

6шт.

5

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, used with J902604 cover

6шт.

6

J907049

BOLT,Hex

- hex flange, special, 8-1.25 x 21.25 mm

6шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12-1.75 x 25 mm, class 10.9

2шт.

9

J928404

COVER

- rocker arm, if used

6шт.

10

J930906

GASKET

SEAL - rocker arm cover, if used

6шт.

11

J928406

ISOLATOR

- noise, used with J928404 cover

6шт.

12

J907049

BOLT,Hex

- hex flange, special, 8-1.25 x 21.25 mm

6шт.

13

J903757

BRACKET

- lifting, front, thermostat, housing and alternator mounting

1шт.

14

J914409

HOUSING

- thermostat, housing and alternator mounting

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, housing and alternator mounting, Includes: Ref. 15 and 16

1шт.

15

J923331

GASKET

- thermostat housing, alternator mounting

1шт.

16

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, thermostat, housing and alternator mounting

1шт.

17

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - heavy hex flange, 8-1.25 x 70 mm, thermostat, housing and alternator mounting

2шт.

18

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat, Housing & Alternator mounting

1шт.

19

J923387

SUPPORT

- alternator mounting, thermostat, housing

1шт.

20

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat, Housing and Alternator mounting

3шт.

21

A187916

ALTERNATOR,24V, 45A

ASSEMBLY - engine, see Figure 4-02, thermostat, housing and alternator mounting

1шт.

22

221425R1

FAN

- alternator, see Figure 4-02, thermostat, housing and alternator mounting

1шт.

23

J908560

PULLEY

- drive, see Figure 4-02, thermostat, housing and alternator mounting

1шт.

24

J908563

RETAINER

- pulley, see Figure 4-02, thermostat, housing and alternator mounting

1шт.

25

J903089

SUPPORT

BRACE - alternator mounting, thermostat, housing

1шт.

26

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Thermostat, housing and alternator mounting

2шт.

27

J902469

SPACER

- alternator mounting, thermostat, housing

1шт.

28

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm, Thermostat, housing and alternator mounting

1шт.

29

892-11010

LOCK WASHER,M10

Thermostat, housing and alternator mounting M10

1шт.
