(2-34) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 AND AFTER

Запчасти Case 9030B (2-34) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 AND AFTER (02) - ENGINE

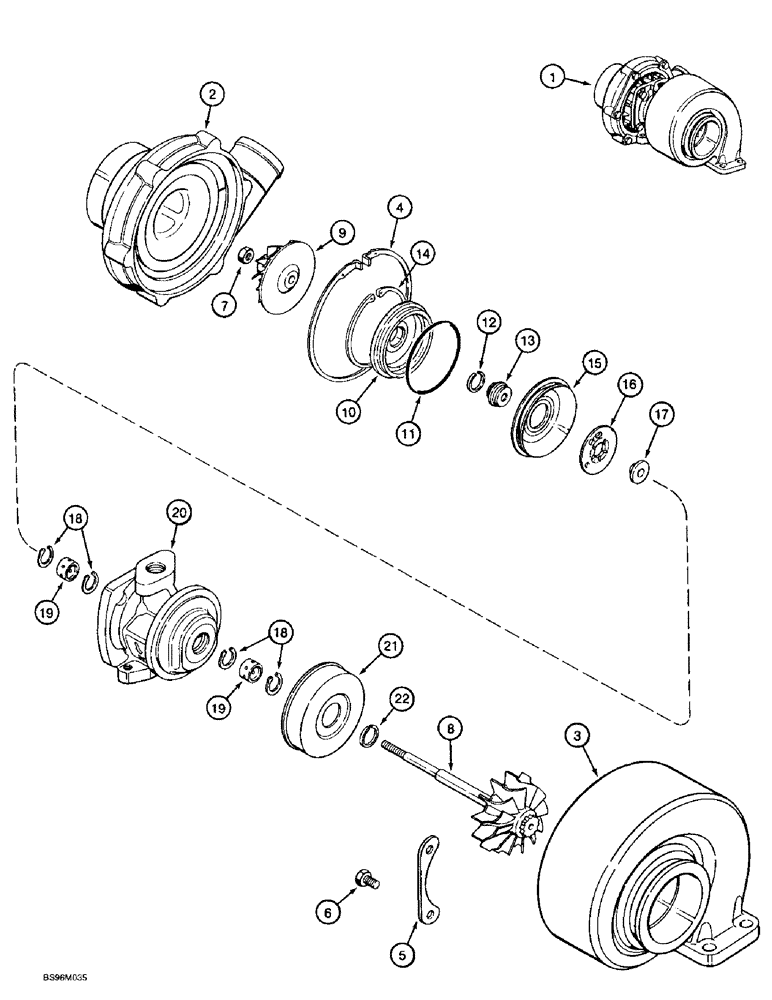

Схема запчастей Case 9030B - (2-34) - TURBOCHARGER, 6T-590 EMISSIONS CERTIFIED ENGINE, P.I.N. DAC03#2001 AND AFTER (02) - ENGINE
15
19
6
1
2
11
3
18
16
18
14
19
5
22
8
12
9
4
10
21
7
13
17
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J802770

TURBOCHARGER

KIT - turbocharger with gaskets, Includes: Ref. 2 - 22 and new turbocharger assembly and one each of J709861 turbocharger mounting gasket and J519807 turbo oil drain tube gasket, not shown

1шт.

1

JR802770

REMAN-TURBOCHARGER

9030B P.I.N. DAC03#2001 & Aft.

1шт.

1

JC537132

CORE-TURBOCHARGER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - compressor

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.

4

J533163

SNAP RING

RING - retaining

1шт.

5

J501188

PLATE

- clamping, turbine housing

2шт.

6

J759917

SET SCREW

SCREW - set, hex head, plate retaining

4шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

J575217

HOUSING

CENTER HOUSING ASSEMBLY - turbocharger, Includes: Ref. 7 - 22

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - hex lock

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

8

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - turbocharger

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

9

NSS

NOT SOLD SEPARAT

IMPELLER - turbo compressor

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE - oil seal

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - diffuser

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - split ring, compressor

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

13

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

14

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

15

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

17

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

18

NSS

NOT SOLD SEPARAT

RING - snap, retaining

4шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

19

NSS

NOT SOLD SEPARAT

BEARING - impeller shaft

2шт.

Part of turbocharger overhaul KIT, P/N J575169.

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - turbine bearing

1шт.

21

NSS

NOT SOLD SEPARAT

SHIELD - heat, turbine

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - split ring, turbine

1шт.

J575169

REPAIR KIT

KIT - overhaul, turbocharger, Includes: Ref. 6 - 8, 11, 12, 14 - 16, 18 and 19

1шт.
