(5-16) - TRACK ROLLERS, ALL MODELS EXCEPT TIMBER KING MODELS

Запчасти Case 9030B (5-16) - TRACK ROLLERS, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

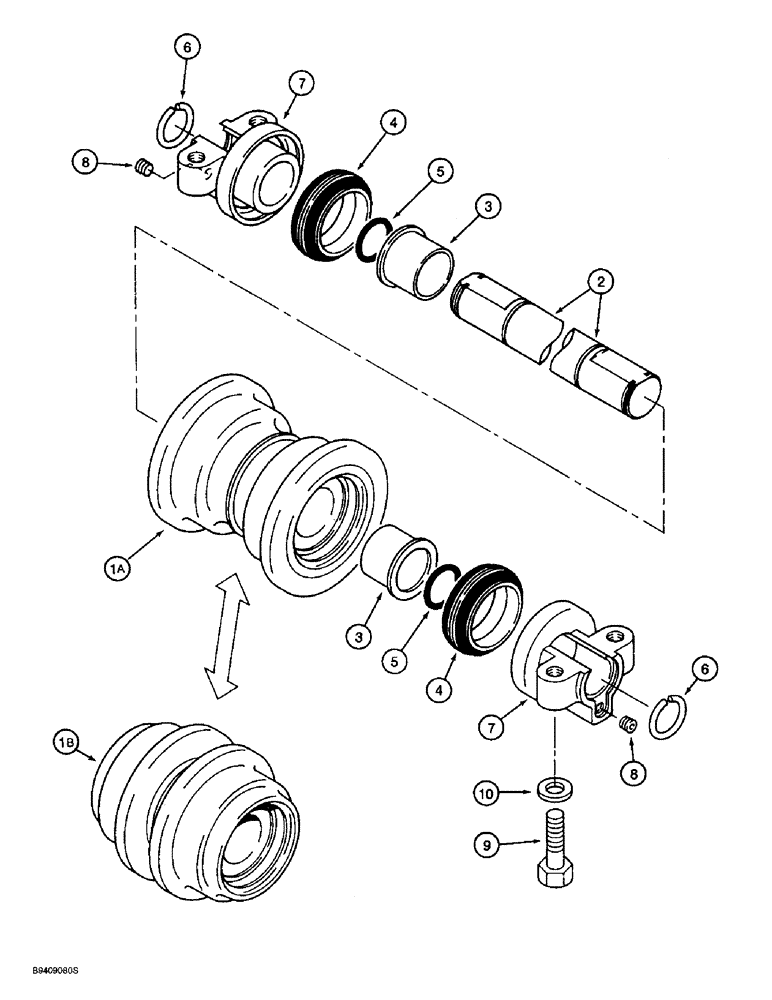

Схема запчастей Case 9030B - (5-16) - TRACK ROLLERS, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING
6
4
3
6
5
7
2
5
3
9
18
7
8
8
1a
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

160417A1

ROLLER ASSY.

ROLLER ASSEMBLY - with outer flanges, Includes: Ref. 1A, 2 - 8

10шт.

160418A1

TRACK ROLLER

ROLLER ASSEMBLY - with inner flanges, Includes: Ref. 1B, 2 - 8

4-6шт.

1a

160419A1

TRACK ROLLER

HUB - track roller, outer flanges, for 160417A1, roller assembly

1шт.

1b

160420A1

SHIFTER ROLLER

HUB - track roller, inner flanges, for 160418A1, roller assembly

1шт.

2

160421A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

160423A1

BUSHING,65mm ID x 87mm OD x 69mm L

- roller

2шт.

4

152736A1

OIL SEAL

- face, includes two rings and two seals

2шт.

5

152422A1

O-RING

- seal

2шт.

6

150597A1

COLLAR

CLIP - wire, shaft retaining

2шт.

7

160422A1

CASING, BEARING ROLL

BRACKET - mounting

2шт.

8

150821A1

PLUG

- port, mounting bracket

2шт.

9

159391A1

BOLT,Hex, M18 x 75mm

BOLT - special

56-64шт.

10

157546A1

WASHER,19mm ID x 36mm OD x 4.5mm Thk

- flat, special

56-64шт.

159407A1

TRACK ROLLER

ROLLER ASSEMBLY - with outer flanges, timber king models, Includes: Ref. 1A, 2 - 8

12шт.

159408A1

TRACK ROLLER

ROLLER ASSEMBLY - with inner flanges, timber king models, Includes: Ref. 1B, 2 - 8

6шт.

1a

159409A1

SHIFTER ROLLER

HUB - track roller, outer flanges, for 159407A1, roller assembly, timber king models

1шт.

1b

159410A1

SHIFTER ROLLER

HUB - track roller, inner flanges, for 159408A1, roller assembly, timber king models

1шт.

2

159401A1

WHEEL SHAFT

SHAFT - roller, timber king models

1шт.

3

159412A1

RING

BUSHING - special, timber king models

2шт.

4

151126A1

SEAL

- face, includes two rings and two seals, timber king models

2шт.

5

154655A1

O-RING

- seal, timber king models

2шт.

6

151152A1

LOCKING RING

RING - retaining, timber king models

2шт.

7

159411A1

COLLAR

BRACKET - mounting, timber king models

2шт.

8

150821A1

PLUG

- port, mounting bracket, timber king models

2шт.

9

159391A1

BOLT,Hex, M18 x 75mm

BOLT - special, timber king models

72шт.

10

157546A1

WASHER,19mm ID x 36mm OD x 4.5mm Thk

- flat, special, timber king models

72шт.
