(5-14) - TRACK CARRIER ROLLER, TIMBER KING MODELS

Запчасти Case 9030B (5-14) - TRACK CARRIER ROLLER, TIMBER KING MODELS (11) - TRACKS/STEERING

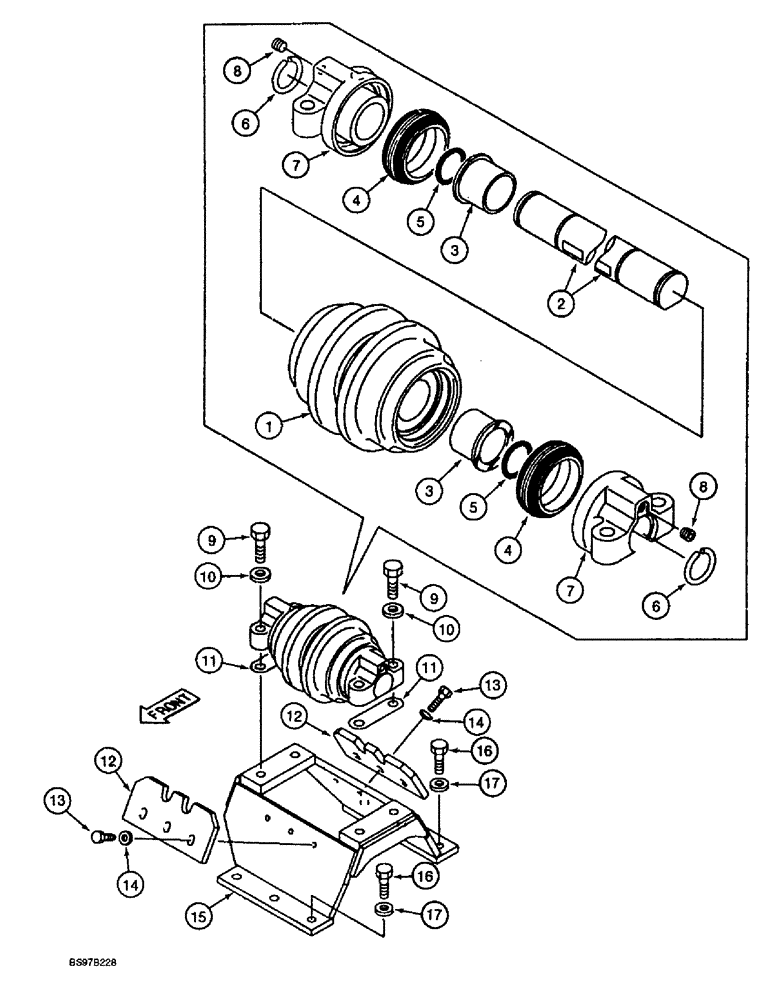

Схема запчастей Case 9030B - (5-14) - TRACK CARRIER ROLLER, TIMBER KING MODELS (11) - TRACKS/STEERING
2
11
10
15
9
12
17
3
4
14
13
6
6
4
5
16
12
16
8
7
17
3
7
13
1
11
10
8
9
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

160418A1

TRACK ROLLER

ROLLER ASSEMBLY - with inner flanges, Includes: Ref. 1 - 8

4шт.

1

160420A1

SHIFTER ROLLER

HUB - track roller, inner flanges

1шт.

2

160421A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

160423A1

BUSHING,65mm ID x 87mm OD x 69mm L

- roller

2шт.

4

152736A1

OIL SEAL

- face

2шт.

5

154639A1

O-RING

- shaft

2шт.

6

150597A1

COLLAR

CLIP - wire, shaft retaining

2шт.

7

160422A1

CASING, BEARING ROLL

BRACKET - mounting, track roller

2шт.

8

150821A1

PLUG

- port

2шт.

9

159391A1

BOLT,Hex, M18 x 75mm

BOLT - special

16шт.

10

157546A1

WASHER,19mm ID x 36mm OD x 4.5mm Thk

- flat, special

16шт.

11

164196A1

BLOCK

PLATE - shim, roller

8шт.

12

164195A1

PLATE

- slotted, roller support

8шт.

13

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 35 mm, class 10.9

24шт.

14

150811A1

WASHER

- flat, special, 12 mm

24шт.

15

164194A1

BRACKET

- roller mounting

4шт.

16

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

24шт.

17

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

24шт.
