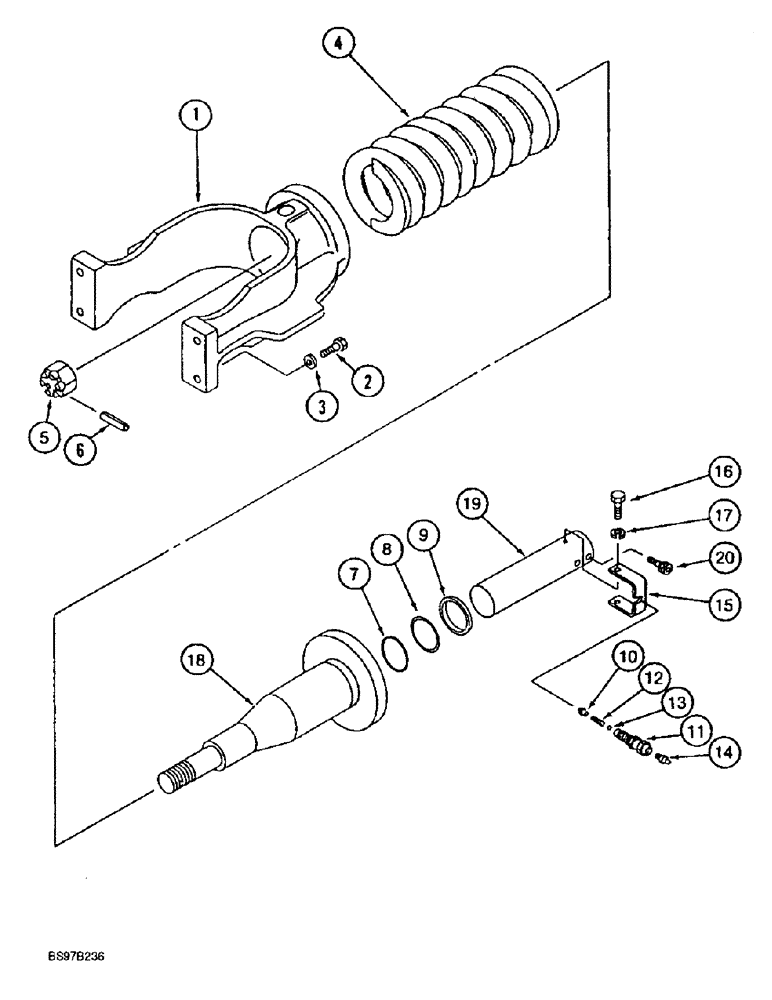

Запчасти Case 9030B (5-10) - TRACK ADJUSTER, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

1

160409A1

YOKE

- track adjuster

2шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

4

160410A1

SPRING

- track tension

2шт.

5

283647A1

SLOTTED NUT

- special

2шт.

6

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

PIN - roll, 8 x 80 mm

2шт.

160416A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, Includes: Ref. 7 - 20

2шт.

7

154680A1

O-RING

- piston rod, replaces 160399A1, O-ring

1шт.

8

160412A1

BACK-UP RING,75mm ID x 85mm OD x 1.9mm Thk

RING - backup, piston rod wiper

1шт.

9

160407A1

SEAL,75mm ID x 89mm OD x 11mm Thk

WIPER - piston rod

1шт.

150107A1

LUBE NIPPLE

VALVE - check, Includes: Ref. 10 - 14

1шт.

10

150120A1

CAP

POPPET - check valve

1шт.

11

150112A1

VALVE SEAT

BODY - check valve

1шт.

12

150115A1

SPRING

- check valve

1шт.

13

150897A1

BALL

- check

1шт.

14

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

15

160413A1

BRACKET

- mounting, check valve

1шт.

16

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9

4шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

160415A1

CYLINDER ASSY.

GUIDE - track tension spring

1шт.

19

160411A1

JACK PISTON

ROD - piston

1шт.

20

561-1021

SCREW,Hex Soc Hd, M16 x 1.5 x 30, 8.8

BOLT - hex socket, 16-1.5 x 25 mm, class 12.9

1шт.

1

159394A1

FORK

YOKE - track adjuster, timber king models

2шт.

2

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Timber king models Hex, M16 x 50, 10.9

8шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, timber king models

8шт.

4

159402A1

SPRING

- track tension, timber king models

2шт.

5

825-3056

SLOTTED NUT,M56 x 5.5, Cl 8

NUT - hex slotted, 56 mm-5.5, timber king models

2шт.

Ref.5 (nut for timber king models) should be part number 349968A1 nut. Size is M56 X 2.

1шт.

6

838-5890

LOCK PIN,M8 x 90, Slotted

PIN - roll, 8 x 90 mm, timber king models

2шт.

159406A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, timber king models, Includes: Ref. 7 - 20

2шт.

7

159660A1

O-RING

- piston rod, timber king models

1шт.

8

159400A1

BACK-UP RING

RING - backup, timber king models

1шт.

9

159661A1

SEAL

WIPER - piston rod, timber king models

1шт.

150107A1

LUBE NIPPLE

VALVE - check, timber king models, Includes: Ref. 10 - 14

1шт.

10

150120A1

CAP

POPPET - check valve, timber king models

1шт.

11

150112A1

VALVE SEAT

BODY - check valve, timber king models

1шт.

12

150115A1

SPRING

- check valve, timber king models

1шт.

13

150897A1

BALL

- check, timber king models

1шт.

14

153630A1

LUBE NIPPLE

FITTING - grease, straight, timber king models

1шт.

15

159403A1

BRACKET

- mounting, check valve, timber king models

1шт.

16

627-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 16 mm, class 10.9, Timber king models

2шт.

17

892-11010

LOCK WASHER,M10

Timber king models M10

2шт.

18

159405A1

CYLINDER ASSY.

GUIDE - track tension spring, timber king models

1шт.

The thread size on Ref. 18 159405A1 guide is M56 X 2.

1шт.

19

159395A1

JACK PISTON

ROD - piston, timber king models

1шт.

20

561-1021

SCREW,Hex Soc Hd, M16 x 1.5 x 30, 8.8

BOLT - hex socket, 16-1.5 x 25 mm, class 12.9, timber king models

1шт.
