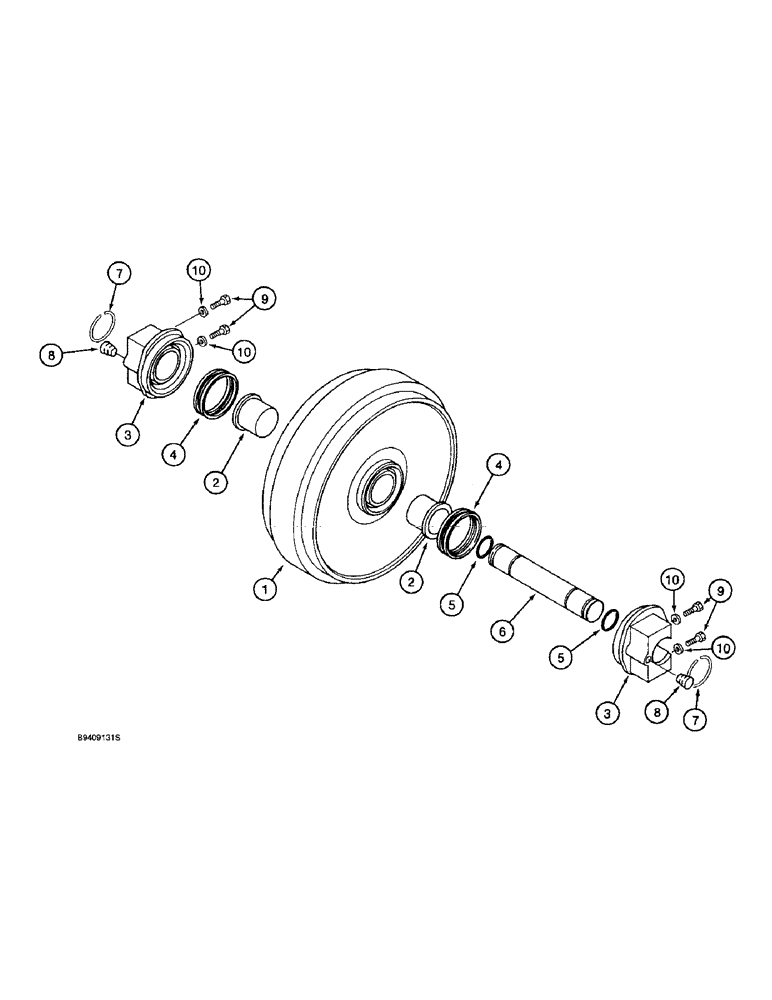

Запчасти Case 9030B (5-08) - IDLER WHEEL, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

160424A1

FRONT IDLER

WHEEL ASSEMBLY - idler, Includes: Ref. 1 - 8

2шт.

1

160425A1

FLEETING PULLEY

WHEEL - idler

1шт.

2

160427A1

RING,65mm ID x 92mm OD x 69mm L

BUSHING - idler wheel

2шт.

3

160426A1

HUB

- idler support

2шт.

4

160397A1

SEAL,95mm ID x 114mm OD x 32mm Thk

ASSEMBLY - face, includes two rings and two seals

2шт.

5

152422A1

O-RING

- seal

2шт.

6

160408A1

WHEEL SHAFT

SHAFT - idler wheel

1шт.

7

150709A1

WIRE

CLIP - wire, shaft retaining

2шт.

8

150821A1

PLUG

- port, idler support hub

2шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

159413A1

FLEETING PULLEY

WHEEL ASSEMBLY - idler, timber king models, Includes: Ref. 1 -10

2шт.

1

159414A1

ROLLER

WHEEL - idler, timber king models

2шт.

2

159412A1

RING

BUSHING - special, timber king models

4шт.

3

159415A1

HUB

- idler support, timber king models

4шт.

4

151126A1

SEAL

- face, timber king models

4шт.

5

154655A1

O-RING

- seal, timber king models

4шт.

6

159396A1

WHEEL SHAFT

SHAFT - idler wheel, timber king models

2шт.

7

151152A1

LOCKING RING

RING - retaining, wire clip, timber king models

4шт.

8

150821A1

PLUG

- port, timber king models

4шт.

9

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

Timber king models Hex, M16 x 50, 10.9

4шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special, timber king models

4шт.
