(5-02) - TRACK FRAME AND DRIVE SPROCKET, ALL MODELS EXCEPT TIMBER KING MODELS

Запчасти Case 9030B (5-02) - TRACK FRAME AND DRIVE SPROCKET, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING

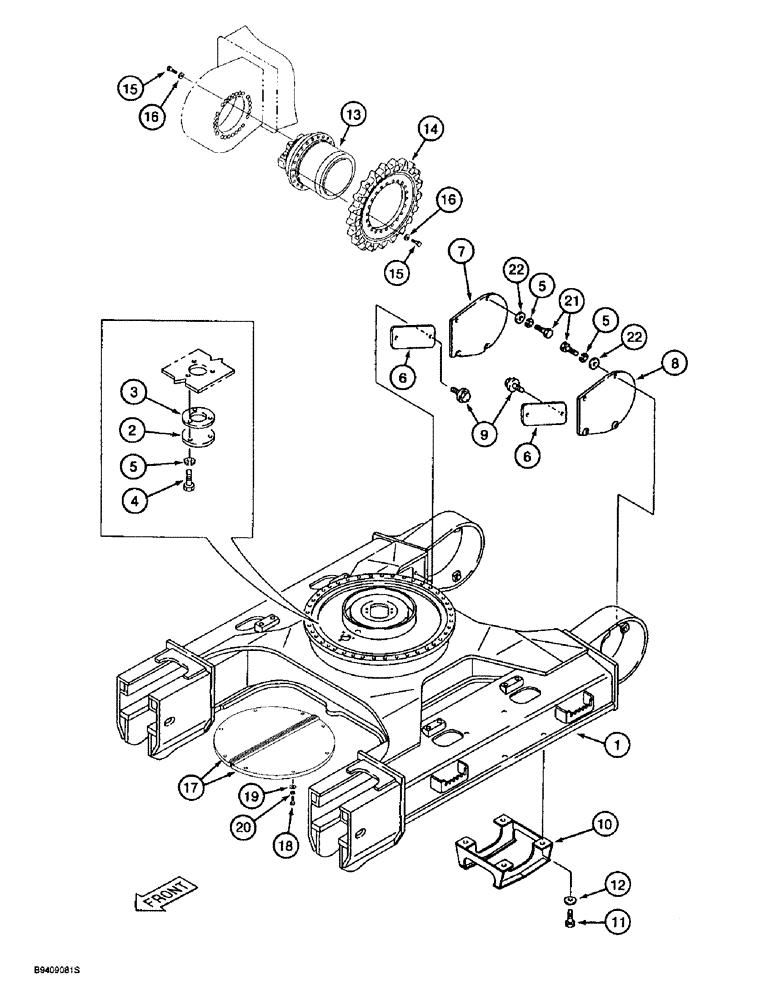

Схема запчастей Case 9030B - (5-02) - TRACK FRAME AND DRIVE SPROCKET, ALL MODELS EXCEPT TIMBER KING MODELS (11) - TRACKS/STEERING
6
3
16
11
5
20
16
17
18
6
21
19
15
10
5
22
4
1
5
12
14
15
9
2
7
8
13
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160428A1

CHASSIS

FRAME - track and undercarriage, all models except Timber King and Narrow Track

1шт.

1

165938A1

FRAME

- track and undercarriage, Narrow Track models only

1шт.

2

158929A1

LID

COVER - access, grease fill, turntable gear

1шт.

3

158930A1

CORK SEAL

GASKET - access cover

1шт.

4

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

3шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

11шт.

6

159678A1

COVER

- access, hydraulic lines to track drive motor, all models except Timber King and Narrow Track

2шт.

6

160691A1

COVER

- assess, hydraulic lines to track drive motor,Timber King and Narrow Track models only

2шт.

7

159689A1

COVER

- access, track drive motor, right-hand

1шт.

8

159688A1

COVER

- access, track drive motor, left-hand

1шт.

9

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

4шт.

10

159687A1

GUIDE

- track

2шт.

11

627-18050

BOLT,Hex, M18 x 2.5 x 50mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 18-2.5 x 50 mm, class 10.9

8шт.

12

157546A1

WASHER,19mm ID x 36mm OD x 4.5mm Thk

- flat, special

8шт.

13

160432A1

MOTO-REDUCTION GEAR

MOTOR ASSEMBLY - track drive, see Figure 6-02

2шт.

14

165181A1

WHEEL GEAR

SPROCKET - track drive, was 159679A1

2шт.

15

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

Hex, M16 x 55, 10.9, Full Thd

96шт.

16

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

96шт.

17

159683A1

COVER

- access, clean out, turntable gear

2шт.

18

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

19

150811A1

WASHER

- flat, special, 12 mm

8шт.

20

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

21

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, full threads, 12-1.75 x 35 mm, class 10.9, If used

8шт.

21

158919A1

CAPTIVE WASHER SCREW,Hex Wshr Hd, M12 x 1.75 x 35mm, Cl 10.9, Spcl

BOLT - special, hex, with washer, 12-1.75 x 35 mm, class 10.9, if used

8шт.

22

150811A1

WASHER

- flat, special, 12 mm

8шт.
