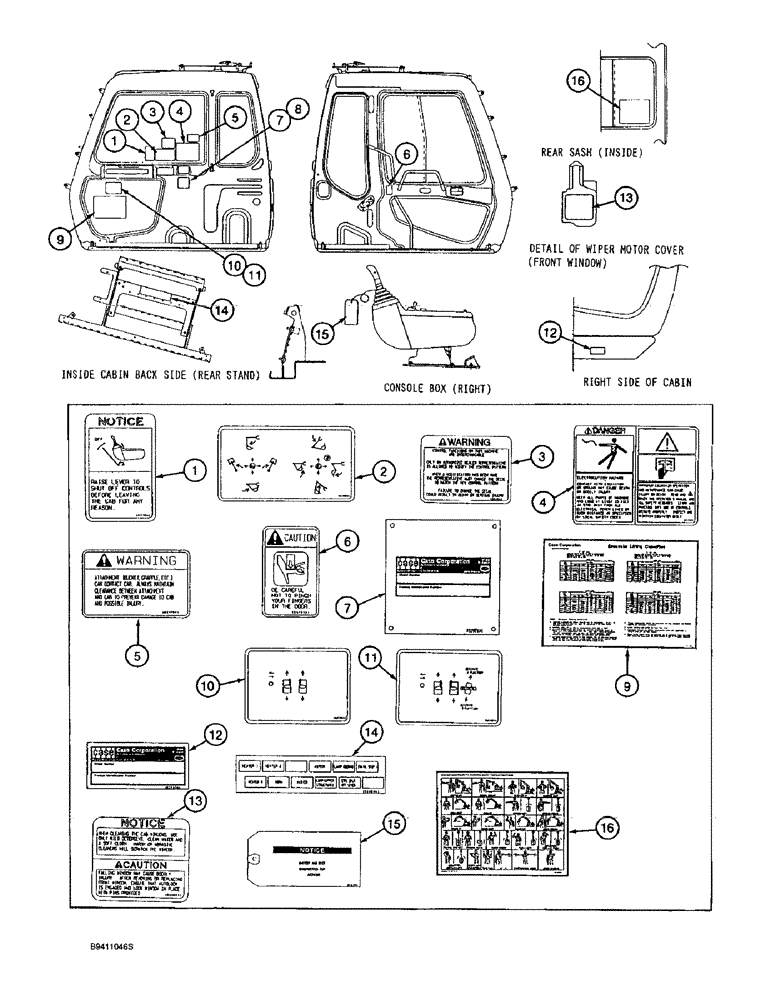

Запчасти Case 9030B (9-142) - DECALS, FRENCH LANGUAGE, OPERATORS COMPARTMENT (09) - CHASSIS

1

190480A1

DECAL

- Notice, raise lever to shut off controls (French)

1шт.

2

190282A1

DECAL

- optional control pattern

1шт.

3

190630A1

DECAL

- Warning, control functions on this machine are interchangeable (French)

1шт.

4

190501A1

DECAL

- Danger, electrocution hazard (French)

1шт.

5

190481A1

DECAL

- Warning, attachment can contact cab (French)

1шт.

6

190495A1

DECAL

- Caution, be careful not to pinch your fingers (French)

1шт.

7

153928A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

8

151586A1

RIVET

- blind, name plate

4шт.

9

190814A1

DECAL

- excavator lifting capacities (French), for standard models only

1шт.

10

162185A1

DECAL

- foot pedal controls

1шт.

11

162186A1

DECAL

- foot pedal controls for machines with auxiliary hydraulic equipment

1шт.

12

157995A1

DECAL

PLATE - Product Identification Number, no longer available

1шт.

13

190485A1

DECAL

- Notice, when cleaning the windows/Caution, falling window may cause (French)

1шт.

14

190486A1

DECAL

- relay location (French)

1шт.

15

151937A1

ADHESIVE STRIP

TAG - maintenance

1шт.

16

190347A1

DECAL

- hand signal chart (French)

1шт.
