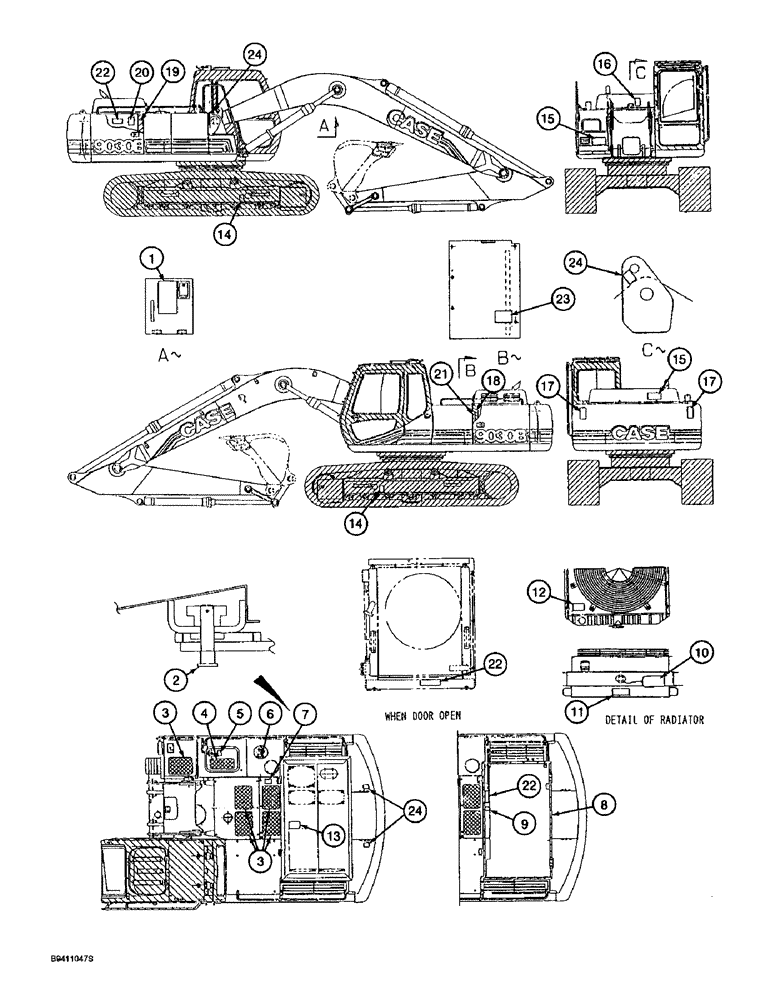

Запчасти Case 9030B (9-136) - DECALS, ENGLISH LANGUAGE, WARNING, DANGER AND MISCELLANEOUS (09) - CHASSIS

1

161745A1

DECAL

- lubrication chart, for all except Narrow Track models

1шт.

1

165897A1

DECAL

- lubrication chart, for Narrow Track models only

1шт.

2

162934A1

LARGE PLATE

PLATE - with adhesive backing, goes on button to release hood

1шт.

3

162935A1

ANTI-SKID STRIP

TAPE - non-skid

5шт.

4

162936A1

ADHESIVE STRIP

TAPE - non-skid, on top of fuel tank

1шт.

5

161463A1

DECAL

- gas pump, Information, diesel fuel only

1шт.

6

161731A1

DECAL

- Caution, hot hydraulic fluid

1шт.

7

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

8

162937A1

DECAL

TAPE - special, 5400 mm (212-5/8 inch) long

1шт.

9

321-6718

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

10

151796A1

ADHESIVE STRIP

TAG - antifreeze notice

1шт.

11

321-6672

DECAL

- Warning, check and service cooling system

1шт.

12

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

13

161730A1

DECAL

- Warning, slippery and unstable surface

1шт.

14

161467A1

DECAL

- Warning, grease under pressure

2шт.

15

161734A1

WARNING DECAL

DECAL - Warning, stay away from machine

2шт.

16

161465A1

DECAL

- Warning, falling engine hood

1шт.

17

151880A1

DECAL

- Danger, keep clear of swinging upper

2шт.

18

162939A1

DECAL

TAPE - special, 790 mm (31-1/8 inch) long

1шт.

19

162940A1

TAPE

- special, 760 mm

1шт.

20

161733A1

DECAL

- to check oil level

1шт.

21

162947A1

ADHESIVE

TAPE - special, 420 mm (16-11/32 inch) long

1шт.

22

162142A1

DECAL

- Warning, hot surfaces

3шт.

23

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.

24

321-3587

DECAL

- lift only

4шт.
