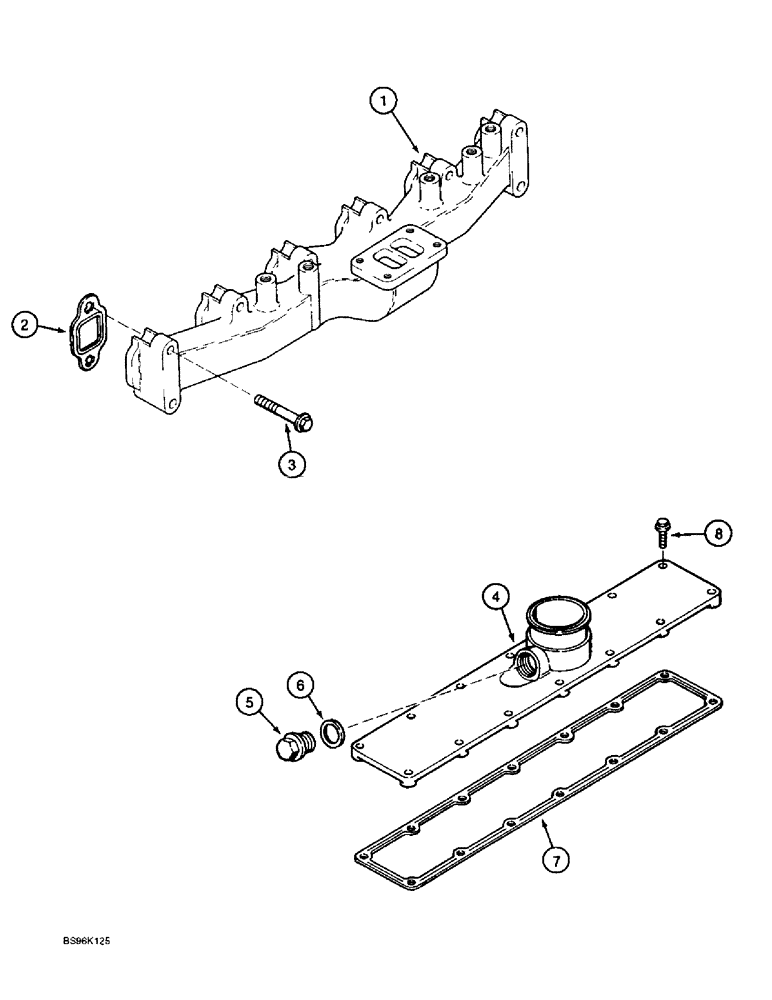

Запчасти Case 9030B (2-24) - MANIFOLDS, 6T-590 ENGINE, EXHAUST/INTAKE, PRIOR TO P.I.N. DAC03#2001 (02) - ENGINE

1

J902347

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9, exhaust manifold

12шт.

A77418

KIT

- manifold, no longer available, order components separately, Includes: Ref. 4 - 6, intake

1шт.

4

J904862

COVER

- intake manifold

1шт.

5

J907185

PLUG

- manifold, intake

1шт.

6

J906773

WASHER

- plug sealing, intake manifold

1шт.

7

J931347

GASKET

- mounting, intake cover, manifold, replaces J914029 gasket

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake manifold Hex Flg Hd, M8 x 1.25 x 25

14шт.
