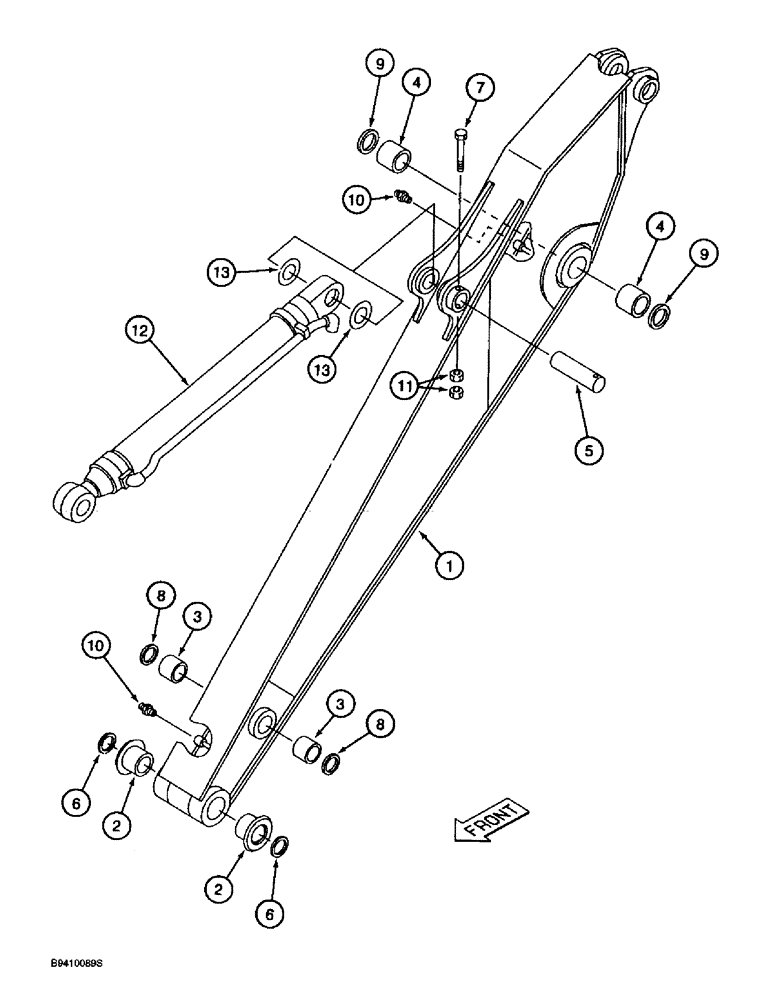

Запчасти Case 9030B (9-096) - ARM AND CYLINDER, STANDARD MODELS ONLY, 3.0 M (9 FT. 10 INCH) ARM (09) - CHASSIS

165135A1

DIPPER

ARM ASSEMBLY - 3.0 M (9 ft 10 inch), with bushings replaces 160473A1, arm assembly, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

ARM - 3.0 M (9 ft. 10 inch) long

1шт.

2

153742A1

BUSHING,80mm ID x 164mm OD x 80mm L

-, Serial Range: arm-bucket

2шт.

3

160448A1

BUSHING,75mm ID x 90mm OD x 60mm L

-, Serial Range: arm-link

2шт.

4

160449A1

BUSHING,90mm ID x 105mm OD x 90mm L

- boom

2шт.

5

160446A1

PIN,75mm OD x 241mm L

- attaching, bucket cylinder

1шт.

6

159647A1

SEAL,80mm ID x 95mm OD x 5mm Thk

- dust

2шт.

7

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

BOLT - hex, 20-1.5 x 150 mm, class 10.9

1шт.

8

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

- dust

2шт.

9

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

2шт.

10

153630A1

LUBE NIPPLE

FITTING - grease, straight

2шт.

11

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm-1.5, class 10

2шт.

12

KRV2837

BUCKET CYLINDER

CYLINDER ASSEMBLY - 120 (4-3/4 ID) x 1012 mm (39-7/8 inch) stroke, bucket, see Figure 8-180, Replaces 160458A1

1шт.

13

160452A1

SHIM

- 1.27 mm (0.05 inch) thick

2шт.
