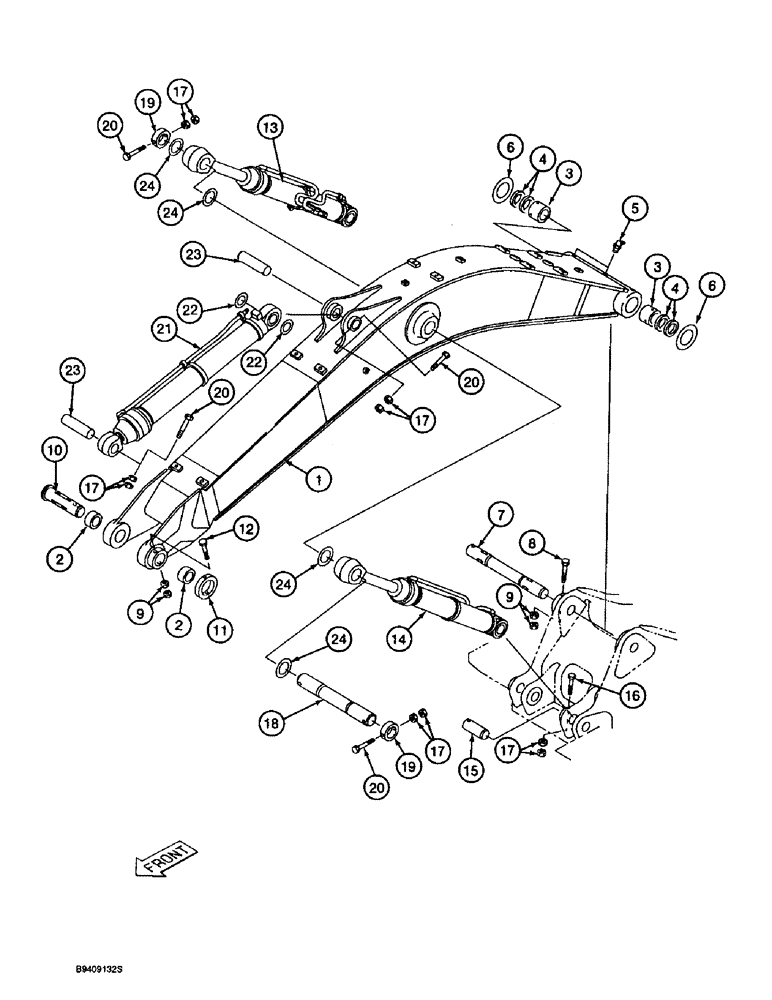

Запчасти Case 9030B (9-088) - BOOM, MOUNTING PINS AND CYLINDERS, STANDARD MODELS ONLY (09) - CHASSIS

1

160472A1

BOOM

- excavator

1шт.

2

160450A1

RING,90mm ID x 105mm OD x 78mm L

BUSHING - pin, at arm

2шт.

3

160449A1

BUSHING,90mm ID x 105mm OD x 90mm L

- boom, at turntable

2шт.

4

159648A1

SEAL,90mm ID x 105mm OD x 5mm Thk

SEAL - dust

4шт.

5

153631A1

LUBE NIPPLE,1/8"-27 NPT

FITTING - grease, 45 degree

2шт.

6

160454A1

ADJUSTING PLATE

SHIM -, Serial Range: boom-turntable

2шт.

7

160444A1

PIN,90mm OD x 882mm L

- attaching, Serial Range: boom-turntable

1шт.

8

514-1403

BOLT,Hex, M24 x 2 x 180mm, Cl 10.9

- hex, 24-2.0 x 180 mm, class 10.9

1шт.

9

829-13424

NUT,M24 x 2, Cl 10

- hex, 24 mm - 2.0, class 10

4шт.

10

160462A1

PIN,90mm OD x 524mm L

- attaching, Serial Range: boom-arm

1шт.

11

152024A1

COLLAR CLAMP

COLLAR - pin retaining

1шт.

12

514-1404

BOLT,Hex, M24 x 2 x 190mm, Cl 10.9

- hex, 24-2.0 x 190 mm, class 10.9

1шт.

13

160471A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-15/16) ID x 1259 mm (49-9/16 inch) stroke, boom, models without load hold, see Figure 8-164

1шт.

13

162803A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-15/16) ID x 1259 mm (49-9/16 inch) stroke, boom, models with load hold, see Figure 8-168

1шт.

14

160470A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-15/16) ID x 1259 mm (49-9/16 inch) stroke, boom, models without load hold, see Figure 8-164

1шт.

14

162803A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 125 (4-15/16) ID x 1259 mm (49-9/16 inch) stroke, boom, models with load hold, see Figure 8-168

1шт.

15

160445A1

PIN,80mm OD x 247mm L

- attaching, boom cylinder at frame

2шт.

16

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

BOLT - hex, 20-1.5 x 150 mm, class 10.9

2шт.

17

829-11420

NUT,M20 x 1.5, Cl 10

- hex, 20 mm-1.5, class 10

12шт.

18

160443A1

PIN,85mm OD x 806mm L

- attaching, boom cylinder at boom

1шт.

19

160451A1

LOCKING RING

COLLAR - pin retaining

2шт.

20

514-1221

BOLT,Hex, M20 x 1.5 x 160mm, Cl 10.9

BOLT - hex, 20-1.5 x 160 mm, class 10.9

4шт.

21

160457A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1580 mm (62-3/16 inch) stroke, arm, models without load hold, see Figure 8-172

1шт.

21

162799A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 135 (5-5/16) ID x 1580 mm (62-3/16 inch) stroke, arm, models with load hold, see Figure 8-176

1шт.

22

159741A1

SHIM

- arm, Serial Range: cylinder-boom

2шт.

23

159738A1

PIN,80mm OD x 273mm L

- attaching, arm cylinder

2шт.

24

160453A1

SHIM

- boom, Serial Range: cylinder-boom

4шт.
