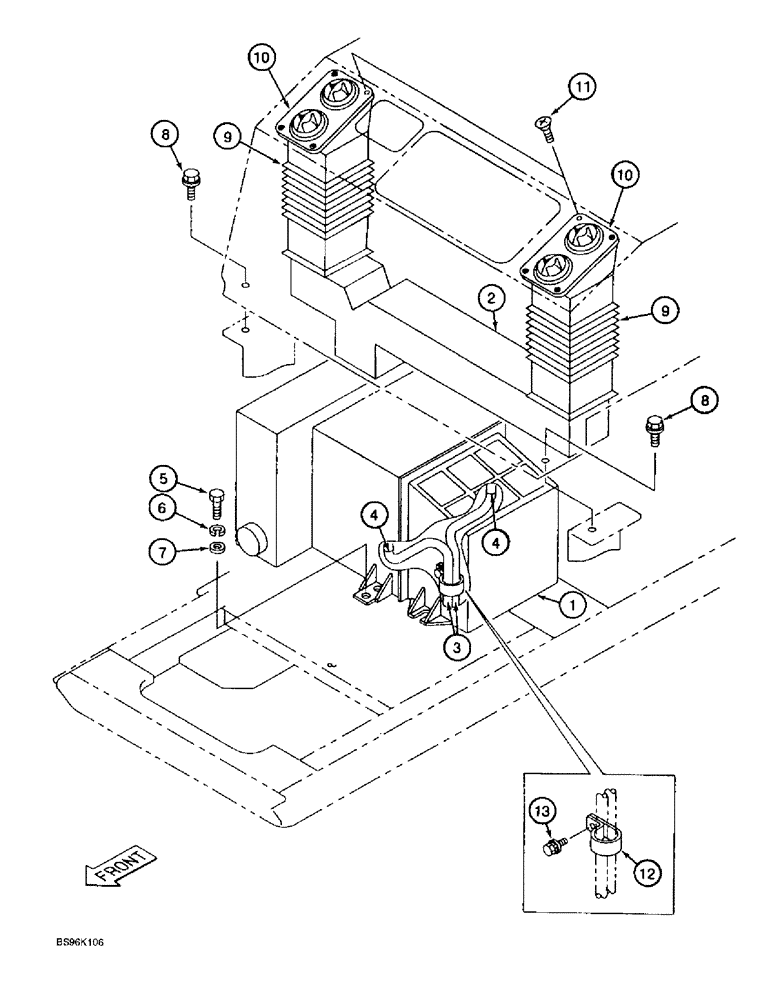

Запчасти Case 9030B (9-084) - CAB AIR CONDITIONER (09) - CHASSIS

1

162048A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R372S), replaced by 164984A1, see Figure 9-085A

1шт.

To determine which air conditioning unit is in cab, check manufacturer's part number on I.D. plate.

1шт.

1

163861A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R710S), replaced by 164984A1, see Figure 9-085A

1шт.

To determine which air conditioning unit is in cab, check manufacturer's part number on I.D. plate.

1шт.

1

164732A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R711S), replaced by 164984A1, see Figure 9-085A

1шт.

To determine which air conditioning unit is in cab, check manufacturer's part number on I.D. plate.

1шт.

1

164984A1

AIR CONDITIONER

ASSEMBLY - cab (manufacturers part number TUA-R860S), see Figure 9-085E

1шт.

To determine which air conditioning unit is in cab, check manufacturer's part number on I.D. plate.

1шт.

2

159603A1

AIR DUCT

DUCT - air conditioner

1шт.

3

159617A1

HOSE,322.00 mm

- hot water 322.00 mm

2шт.

4

159622A1

MOUNTING CLIP

CLAMP - band, special, heater hose

2шт.

5

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, AC unit

5шт.

6

892-11010

LOCK WASHER,M10

13шт.

8

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

- special

2шт.

NSS

NOT SOLD SEPARAT

CONSOLE ASSEMBLY - outlet, air conditioner, Includes: Ref. 9 - 11

1шт.

9

159605A1

AIR DUCT

DUCT - outlet, air conditioner

2шт.

10

157289A1

GRILLE ASSY

OUTLET - air conditioner

2шт.

11

843-1412

SCREW,Flat , M4 x 12mm, Cl 4.8

- machine, flat Phillips, 4- 0.7 x 12 mm

8шт.

12

159149A1

COLLAR

CLAMP - P-type, special

1шт.

13

159602A1

BOLT,Sems, Hex, M6 x 16mm

BOLT - special, clamp

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

14шт.
