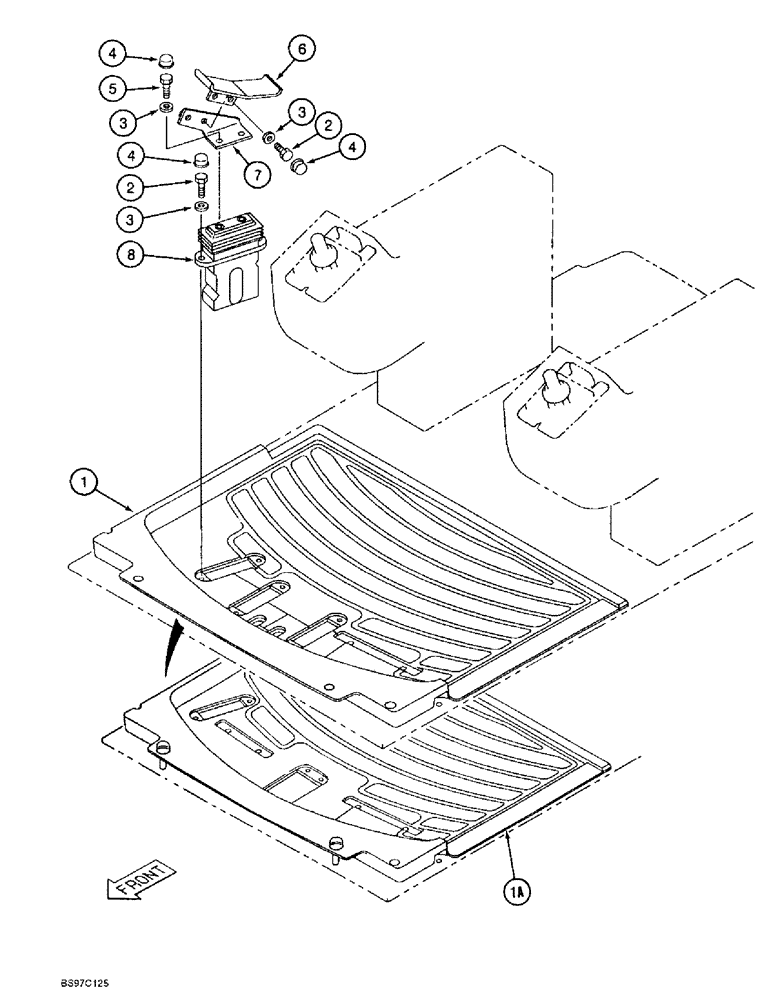

Запчасти Case 9030B (9-062) - AUXILIARY HYDRAULIC CONTROLS, PEDAL AND FLOOR MAT, STANDARD MODELS ONLY (09) - CHASSIS

1

162646A1

FLOOR MAT

MAT - floor, three pedal locations, Serial Range: -DAC0302001

1шт.

1a

165737A1

FLOOR MAT

MAT - floor, three pedal locations, Start Serial: DAC0302001

1шт.

9030B PIN DAC0302830, and 9030B's from PIN DAC0302835 and after use new floormat # 167093A1. NAPO TECH STAFF 4/17/00

1шт.

Item 1A 165737A1 floor mat was used from vehicle serial # DAC0302001 thru DAC0302834 (except for PIN DAC0302830).

1шт.

2

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10-1.5 x 25 mm, class 10.9

4шт.

3

150604A1

WASHER

- special

6шт.

4

159488A1

CAP

- special

6шт.

5

150548A1

BOLT,High Strength, Hex, M10 x 20mm

BOLT - hex, 10-1.5 x 20 mm, class 10.9

2шт.

6

162963A1

PEDAL

- auxiliary hydraulic control

1шт.

7

161843A1

BRACKET

- pedal mounting

1шт.

8

159257A1

CONTROL BLOCK

VALVE ASSEMBLY - remote control, see Figure 8-132

1шт.

IF DLR IS LOOKING FOR COMPLETE HYDRAULIC SHUTDOWN LEVER---SEE FIGURE 9-048, ITEM 31.

1шт.
