(9-060) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. DAC03#2001 AND AFTER

Запчасти Case 9030B (9-060) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS

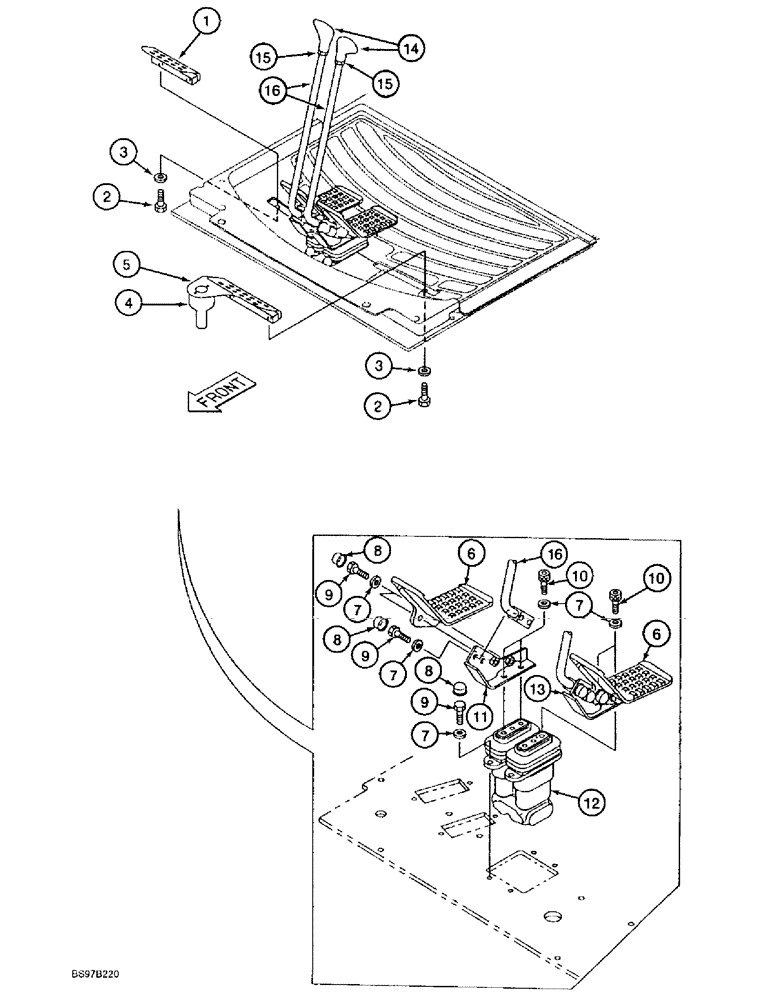

Схема запчастей Case 9030B - (9-060) - TRACK DRIVE CONTROLS, PEDALS AND LEVERS, P.I.N. DAC03#2001 AND AFTER (09) - CHASSIS
3
8
7
14
2
15
9
7
2
7
7
5
3
8
11
16
12
10
9
16
9
10
6
8
1
4
13
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

159265A1

SUPPORT

FOOTREST - right-hand

1шт.

2

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 25 mm, class 10.9

4шт.

3

150409A1

WASHER

- flat, special, 10.5 x 21 x 3.2 mm

4шт.

4

159267A1

COVER

- travel speed selector switch

1шт.

5

159266A1

SUPPORT

FOOTREST - left-hand

1шт.

6

159030A1

PEDAL

- foot control

2шт.

7

150604A1

WASHER

- special

16шт.

8

159488A1

CAP

- special

12шт.

9

150552A1

BOLT,High Strength, Hex, M10 x 25mm

BOLT - hex, 10-1.5 x 25 mm, class 10.9

12шт.

10

165404A1

BOLT,Hex Skt, M10 x 20mm

BOLT - special

4шт.

11

165403A1

BRACKET

- pedal and valve mounting, right-hand

1шт.

12

165215A1

VALVE

ASSEMBLY - remote control, see Figure 8-134

2шт.

13

165402A1

BRACKET

- pedal and valve mounting, left-hand

1шт.

14

159262A1

KNOB

- control lever

2шт.

15

150373A1

NUT

- hex, 12 mm-1.25, class 12.9

2шт.

16

159261A1

LEVER

- control, track drive

2шт.
